EX-1305
Micro USB Android to 1x Serial RS-232 ports with 1.8 meter cable (FTDI Chipset)
The Micro USB to RS-232 cable provides one high performance 16C550-type UART compatible RS-232 serial port. It is designed for Tablet and Smartphone with Android Operating System to provide instant COM port expansion via the USB Bus. For a easy installation you download the free of charge App from FTDI for connect a RS-232 serial device.
Interface: RS-232 V.24 with 16Byte FIFO buffer
Support Tablet’s and Smartphone with Android
Provides Power Source to the Android Device via the Y-Cable configuration
Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power from the USB Bus (Bus Power)
Free of charge FTDI App for the Android operating system
Supports Android Platform version 3.1 onward and some v2.3.4
Chipset: FTDI
Packaging contents:EX-1305, Manual
EX-2311-2
USB 2.0 (C-connector) to 1S Serial RS232 Port with 1.8 meter cable (FTDI Chipset)
The USB 2.0 to RS-232 cable with USB-C connector EX-2311-2 provides a serial RS-232 high performance UART 16C550 output. It is designed to add another serial output to PC, workstation or server via USB 1.1 or 2.0 bus. Easy installation means there is no need to open the computer and the cable can be installed while the computer is running. Two nuts are included, which can be easily replaced with the thumbscrews if the cable to be connected has screws.
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
LED Display for RX and TX
Power from the USB Bus (Bus Power)
Exchangeable screw with hex nuts
Chipset: FTDI
Packaging contents:EX-2311-2, Driver CD, 2x hex nuts, Manual
EX-2311-2IS
USB 2.0 (C-connector) to 1S Serial RS232 Port with 15KV Surge Protection & 4KV Isolation
The EX-2311-2IS USB-C to RS-232 cable provides a high performance RS-232 serial UART 16C550 interface with 15KV surge protection & 4KV isolation. It is designed to connect serial devices to the USB 1.1 to 3.2 Gen 2 bus of a PC, server or workstation. Simple installation on the USB port means there is no need to open the computer and the converter can be installed while the computer is running. The knurled screws can be replaced with the two nuts supplied if the cable to be connected has screws.
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
15KV Surge Protection & 4KV Isolation
II/O addresses and interrupt assigned by operating system
Data Bits: 7 and 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, GND
Powered by USB bus (bus power)
Interchangeable screws with hex nuts
LED Display for RX and TX
Chipset: FTDI
Packaging contents:EX-2311-2IS, driver CD, 2x hex nuts, manual
EX-2311-2F
USB 2.0 (C-connector) to 1S Serial RS232 Port with female, 1.8 meter cable (FTDI Chipset)
The USB 2.0 to RS-232 cable with C connector EX-2311-2F provides a serial RS-232 high performance UART 16C550 output. It is designed to add another serial output to PC, workstation or server via USB 1.1 or 2.0 bus. Easy installation means there is no need to open the computer and the cable can be installed while the computer is running. The EX-2311-2F has a 9 pin female connector (DCE) and can therefore be connected directly to the end device. Two nuts are included, which can be easily replaced with the thumbscrews if the cable to be connected has screws.
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
LED Display for RX and TX
Power from the USB Bus (Bus Power)
Exchangeable screw with hex nuts
Chipset: FTDI
Packaging contents:EX-2311-2F, Driver CD, 2x hex nuts, Manual
EX-2346
USB 2.0 C-male connector to serial RS-422/485 cable, (FTDI Chip)
The EX-2346 USB-C to serial cable provides one RS-422/485 high performance UART 16C550 serial port. It is designed to add another serial port to PC, workstation or server via USB 1.1, 2.0 or 3.2 bus with C connector. It is the perfect solution for connecting barcode scanners, card readers, scales, etc. Due to the easy installation, the system does not need to be opened and the cable can be installed while the system is running. Furthermore, a 9 pin female to 5 pin terminal block adapter is included.
The EX-2346 supports COM memory which retains the COM port setting for the serial devices when plugged in and unplugged. Once assigned, COM port values are saved and automatically reassigned correctly after plugging in and unplugging. This also applies when switching between different USB ports.
Interface RS-422/485
16C550 FIFO Buffer with 16Byte
I/O addresses and interrupt is set from the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5 and 2
Parity: none, even, odd, space and mark
Two modes are selectable for the signal:- 4-wire RS-422/485 (TXD+/-, RXD+/-) - 2-wire RS-485 (Data+/-, Data+/-)
Powered from the USB-Port - No external power adapter required
LED Display for RX and TX
Exchangeable screw with hex nuts
Chipset: FTDI
Packaging contents:EX-2346, Driver CD, 2x hex nuts, Adapter 9 pin female to 5 pin TB, Manual
EX-2346IS
USB 2.0 C-plug to Serial RS-422/485 cable with 15KV Surge Protection and 4.0KV Isolation
Das USB-C zu seriell EX-2346IS stellt eine serielle RS-422/485 High Performance UART 16C550 Schnittstelle mit 15KV ESD Überspannungsschutz und 4.0KV Isolation zur Verfügung. Es wurde entwickelt um serielle Geräte am USB-C Port eines PCs, Servers oder einer Workstation anzuschließen. Durch die einfache Installation am USB-Port muss der Rechner nicht geöffnet werden und der Konverter kann bei laufendem Betrieb installiert werden. Die Rändelschrauben können durch die beiden mitgelieferten Muttern ersetzt werden, wenn das anzuschließende Kabel über Schrauben verfügt. Zusätzlich wird ein 9 Pin Adapter zu 5 Pin Terminal Block mitgeliefert. Das Kabel bietet die perfekte Lösung für den Anschluss von Barcodescanner, Kartenlesegeräte, Waagen usw.
Der Konverter speichert die Einstellung des COM-Ports für die seriellen Geräte. Dadurch werden diese nach dem Ein- und Ausstecken automatisch wieder korrekt zugeordnet - auch bei einem Wechsel zwischen verschiedenen USB-Ports.
Schnittstelle RS-422/485
15KV ESD Überspannungsschutz und 4.0KV Isolation
16C550 FIFO Buffer mit 16Byte
I/O Adressen und Interrupt werden vom Betriebssystem vergeben
Daten Bits: 7 und 8
Stop Bits: 1, 1.5 und 2
Parity: none, even, odd, space und mark
Zwei Einstellungen der Signale sind möglich:- 4-Draht RS-422/485 (TXD+/-, RXD+/-)- 2-Draht RS-485 (Data+/-, Data+/-)
Stromversorgung über den USB-Port - Keine externe Stromversorgung erforderlich
LED Anzeige für RX und TX
Austauschbare Schrauben mit Sechskant-Muttern
Chipsatz: FTDI
Lieferumfang:EX-2346IS, Treiber CD, 2x Sechskant-Muttern, Adapter 9 Pin Buchse zu 5 Pin TB, Handbuch
EX-1331TTL-VIS
USB 2.0 to 1 x RS-232/TTL(CMOS), Surge Protection & Isolation
The EX-1331TTL-VIS USB 2.0 to serial RS-232 and TTL(CMOS) in a plastic case provides one high performance 16C550-type UART compatible RS-232 and TTL (CMOS) serial port with Surge Protection & Isolation. It is designed for PC or Notebooks to provide instant COM port expansion in a compact plastic case through the USB 2.0 bus. With the easy installation you don’t need to open the computer system and install the EX-1331TTL-VIS when the system run. With the USB cable EX-K1552V (2 meter) A-male to B-male you can fix the connector with screw. The cable can’t be disconnect any more by him self. Optional you can install the EX-1331TTL-VIS with the product EX-6099 (DIN-Rail-Kit) in a 19 inch Rack.
Interface: RS-232 V.24 and TTL(CMOS)
15KV ESD Surge Protection und 2.5KV Isolation
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Electrical Characteristics:
TTL/CMOS Input Low < 0.8V
High > 2.0V
TTL/CMOS Output Low < 0.55V
High > 2.4V
Power from the USB Bus (Bus Power)
Packaging contents:EX-1331TTL-VIS, USB cable screw able, Driver CD, Manual
EX-1331-4KVIS
USB 2.0 to 1 x Serial RS-232/422/485 port, with Surge Protection and 4KV Isolation
The EX-1331-4KVIS USB 2.0 to serial RS-232/422/485 in a plastic case, provides one high performance 16C550-type UART compatible RS-232/422/485 serial port with 15KV ESD Surge Protection and 4KV Isolation. It is designed for PC or Notebooks to provide instant COM port expansion in a compact plastic case through the USB 2.0 bus. With the easy installation you don’t need to open the computer system and install the EX-1331-4KVIS when the system run. With the USB cable EX-K1552V (2 meter) A-male to B-male you can fix the connector with screw. The cable can’t be disconnect any more by him self. Optional you can install the EX-1331-4KVIS with the product EX-6099 (DIN-Rail-Kit) in a 19 inch Rack.
Interface: RS-232 V.24, RS-422 and RS-485
15KV ESD Surge Protection und 4000Vms Isolation
FIFO Buffer: 16C550 with 16Byte
I/O address and Interrupt: Set from the operating system
Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Signal RS-422: 4-wire (TXD+/-, RXD+/-) Fullduplex
Signal RS-485: 2-wire and 4-wire (Data+/-, Data +/-) Halfduplex/Fullduplex
Power from the USB Bus (Bus Power)
Chip-Set: FTDI
Packaging contents:EX-1331-4KVIS, USB cable, Plastic holder, Driver CD, Manual
EX-1316HMV
USB 2.0 to 16x Serial RS-232 ports Metal case (FTDI Chipset)
Der EX-1316HMV USB 2.0 zu RS232 Konverter in einem Metallgehäuse stellt 16 serielle RS232 High Performance UART 16C550 Ausgänge zur Verfügung. Er wurde entwickelt um Desktop Computer, Notebook um sechzehn weitere serielle Ausgänge in einem robustem Metallgehäuse über den USB 2.0 Bus zu erweitern. Durch die einfache Installation muss der Rechner nicht geöffnet werden und der EX-1316HMV kann bei laufendem Betrieb installiert werden. Das mitgelieferte Kabel EX-K1542V A-Stecker auf B-Stecker kann ohne Schraubenzieher am EX-1316HMV mit Rändelschrauben befestigt werden und kann sich somit nicht mehr von alleine lösen. Der EX-1316HMV hat LED Anzeigen für die Datenübertragungen. Bein Anschluss des +12V Netzteil sind auf Pin 9 der seriellen Steckers +12V konfigurierbar für POS Systeme (Power over System).
Schnittstelle: RS-232 V.24
FIFO Buffer: 16C550 mit 16Byte
I/O Adressen und Interrupt: werden vom Betriebssystem vergeben
Daten Bits: 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signale RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Stromversorgung vom USB Bus (Bus Power), Netzteil oder 7V~24V
Unterstützt Wand–DIN-Rail und 19“ Rack Befestigung
LED für TX und RX Aktiv Anzeige
Chipsatz: FTDI
Lieferumfang:EX-1316HMV, Netzteil 12V/3A, DIN-Rail Kit, USB 2.0 Kabel (EX-K1542V), 19“ Rack Befestigungs-Kit, Treiber CD, Handbuch
EX-1311-2F-5V
USB 2.0 to 1S serial RS-232 port female with +5V on pin 9 (FTDI Chipset)
The USB 2.0 to RS-232 cable with A-connector provides one high performance 16C550-type UART compatible RS-232 serial port. It supports the external voltage of +5V especially on pin 9 of the female connector. With the easy installation you don t need to open the computer system and install the EX-1311-2F-5V when the system run. The EX-1311-2F-5V can connect directly to the devices because it is equipped with a 9 pin female connector (DCE). We include two hex nut, what can replace with two screws from the EX-1311-2F-5V, if the opposite cable has screws.
Interface RS-232 V.24 with +5V to pin 9 by the female connector
16C550 FIFO Buffer with 16ByteI/O addresses and interrupt is set from the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5 and 2
Parity: none, even, odd, space and mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power from the USB Bus (Bus Power)
LED Display for RX and TX
Exchangeable screw with hex nuts
Chipset: FTDI
Packaging contents: EX-1311-2F-5V, Driver CD, 2x hex nuts, Manual
EX-1311-2-5V
USB 2.0 to 1S serial RS-232 port with +5V on pin 9 (FTDI Chipset)
The USB 2.0 to RS-232 cable with A-connector provides a serial RS-232 high performance UART 16C550 output. It supports the external voltage of +5V especially on pin 9 of the connector. It is designed to extend another serial output for PC, small workstation or server via the USB 1.1, 2.0 or 3.2 Gen 1 bus. Due to the easy installation there is no need to open the computer and the EX-1311-2-5V can be installed during operation. Two nuts are included, which can easily be replaced with the thumbscrews if the cable to be connected has screws.
Interface: RS-232 V.24 with +5V on pin 9 by the connector
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
LED Display for RX and TX
Power from the USB Bus (Bus Power)
Exchangeable screw with hex nuts
Chipset: FTDI
Packaging contents:EX-1311-2-5V, Driver CD, 2x hex nuts, Manual
EX-1311-2IS
USB 2.0 to 1S Serial RS-232 Port with 15KV Surge Protection & 4KV Isolation (FTDI Chipset)
The EX-1311-2IS USB to Serial Cable provides a high performance RS-232 UART 16C550 serial interface with 15KV ESD surge protection and 2.5KV isolation. It is designed to connect serial devices to the USB 1.1 to 3.2 Gen 2 bus of a PC, server or workstation. Easy installation means there is no need to open the computer and the EX-1311-2IS can be installed while the system is running. The knurled screws can be replaced by the two nuts supplied if the cable to be connected has screws.
Interface: RS232 V.24
16C550 FIFO buffer with 16Byte
15KV surge protection & 4KV isolation
I/O addresses and interrupt assigned by operating system
Data bits: 7 and 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signals RS232: TxD, RxD, RTS, CTS, GND
LED indicators for RX and TX
Powered by USB bus (bus power)
Interchangeable screws with hex nuts
Chipset: FTDI
Package contents:EX-1311-2IS, driver CD, 2x hex nuts, manual
EX-1310-TTL
USB 2.0 to 1S Serial RS-232 TTL/CMOS with 1.8 meter cable (FTDI Chipset)
The USB 2.0 to RS-232 cable with A-connector provides one high performance 16C550-type UART compatible RS-232 TTL/CMOS serial port. It is designed for PC, thin client or server to provide instant COM port expansion via the USB 1.1 up to 3.2 Gen 1 Bus. The EX-1310-TTL provides a USB to RS-232 port with 5V / 3.3 / 2.5V / 1.8V TTL/CMOS compatible logic levels. With the easy installation you don t need to open the Computersystem and install the EX-1310-TTL when the system run.
Interface: RS-232 V.24 and TTL/CMOS
FIFO Buffer: 16C550 with 16Byte
5V / 3.3V / 2.5V / 1.8V Logic Level can set with a Dip-Switch
Data Bits: 7 and 8 / Stop Bits: 1, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, GND
Power: from the USB BUS (Bus Power)
Chipset: FTDI
Packaging contents:EX-1310-TTL, Driver CD, Manual
EX-1310IS-TTL
USB 2.0 to 1S Serial RS-232 TTL/CMOS with 15KV Surge Protection and 2.5KV Isolation(FTDI)
The EX-1310IS-TTL USB to Serial Cable provides a high performance RS-232 TTL/CMOS UART 16C550 serial interface with 15KV ESD protection and 2.5KV isolation. Designed to connect a TTL/CMOS serial output to the USB 1.1 to 3.2 Gen 2 bus of a PC, server or workstation, it provides a USB to RS-232 port with 5V / 3.3V / 2.5V / 1.8V TTL/CMOS compatible logic levels. Easy installation means there is no need to open the computer and the EX-1310IS-TTL cable can be installed while the computer is running.
Interface: RS-232 V.24 and TTL/CMOS
15KV ESD protection and 2.5KV isolation
16C550 FIFO buffer with 16Byte
5V / 3.3V / 2.5V / 1.8V Dip switch selectable logic level
Data bits: 7 and 8
Stop bits: 1, 2
Parity: none, even, odd, space, mark
RS-232 signals: TxD, RxD, GND
Powered by USB bus (Bus Power)
Chipset: FTDI
Package contents:EX-1310IS-TTL, driver CD, manual
EX-1311-2
USB 2.0 to 1S Serial RS232 Port with 1.8 meter cable (FTDI Chipset)
The USB 2.0 to RS-232 cable with A-connector provides one high performance 16C550-type UART compatible RS-232 serial port. It is designed for PC, thin client or server to provide instant COM port expansion via the USB 1.1 up to 3.2 Gen 1 Bus. With the easy installation you don t need to open the Computersystem and install the EX-1311-2 when the system run. We include two hex nut, what can replace with two screws from the EX-1311-2, if the opposite cable has screws.
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
LED Display for RX and TX
Power from the USB Bus (Bus Power)
Exchangeable screw with hex nuts
Chipset: FTDI
Packaging contents:EX-1311-2, Driver CD, 2x hex nuts, Manual
EX-1311-2F
USB 2.0 to 1S Serial RS232 Port with female connector, 1.8 meter cable (FTDI Chipset)
The USB 2.0 to RS-232 cable with A-female connector provides one high performance 16C550-type UART compatible RS-232 serial port. It is designed for PC, thin client or server to provide instant COM port expansion via the USB 1.1up to 3.2 Gen 1 Bus. With the easy installation you don t need to open the Computersystem and install the EX-1311-2 when the system run. We include two hex nut, what can replace with two screws from the EX-1311-2, if the opposite cable has screws.
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
LED Display for RX and TX
Power from the USB Bus (Bus Power)
Exchangeable screw with hex nuts
Chipset: FTDI
Packaging contents:EX-1311-2F, Driver CD, 2x hex nuts, Manual
EX-1331VIS
USB 2.0 to 1S Serial RS232/422/485 mit Surge Protection & Isolation
The EX-1331VIS USB to Serial RS-232/422/485 converter in a plastic case provides a high performance RS-232, 422 or 485 serial UART 16C550 interface with 15KV ESD surge protection and 2.5KV isolation. It is designed to connect serial devices to the USB 1.1 to 3.2 Gen 2 bus of a PC, server or workstation. The supplied EX-K1542V cable can be attached to the EX-1331VIS using knurled screws without the need for a screwdriver. It is therefore impossible to disconnect the cable yourself. Thanks to the simple installation on the USB port, there is no need to open the computer and the converter can be installed while the computer is running. With the optional DIN-Rail kit (EX-6099), the EX-1331VIS can be mounted on a DIN-Rail in a 19" rack.
Interfaces: RS-232 V.24, RS-422 and RS-485
15KV ESD protection and 2.5KV isolation
16C550 FIFO buffer of 16 bytes
I/O addresses and interrupt assigned by operating system
Data bits: 7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 signals: 4-wire (TXD+/-, RXD+/-) full duplex
RS-485 signals: 2-wire and 4-wire (Data+/-, Data +/-) half duplex/full duplex
USB bus powered
Chipset: FTDI
Packaging contents:EX-1331VIS, USB cable screw-lock, driver CD, manual

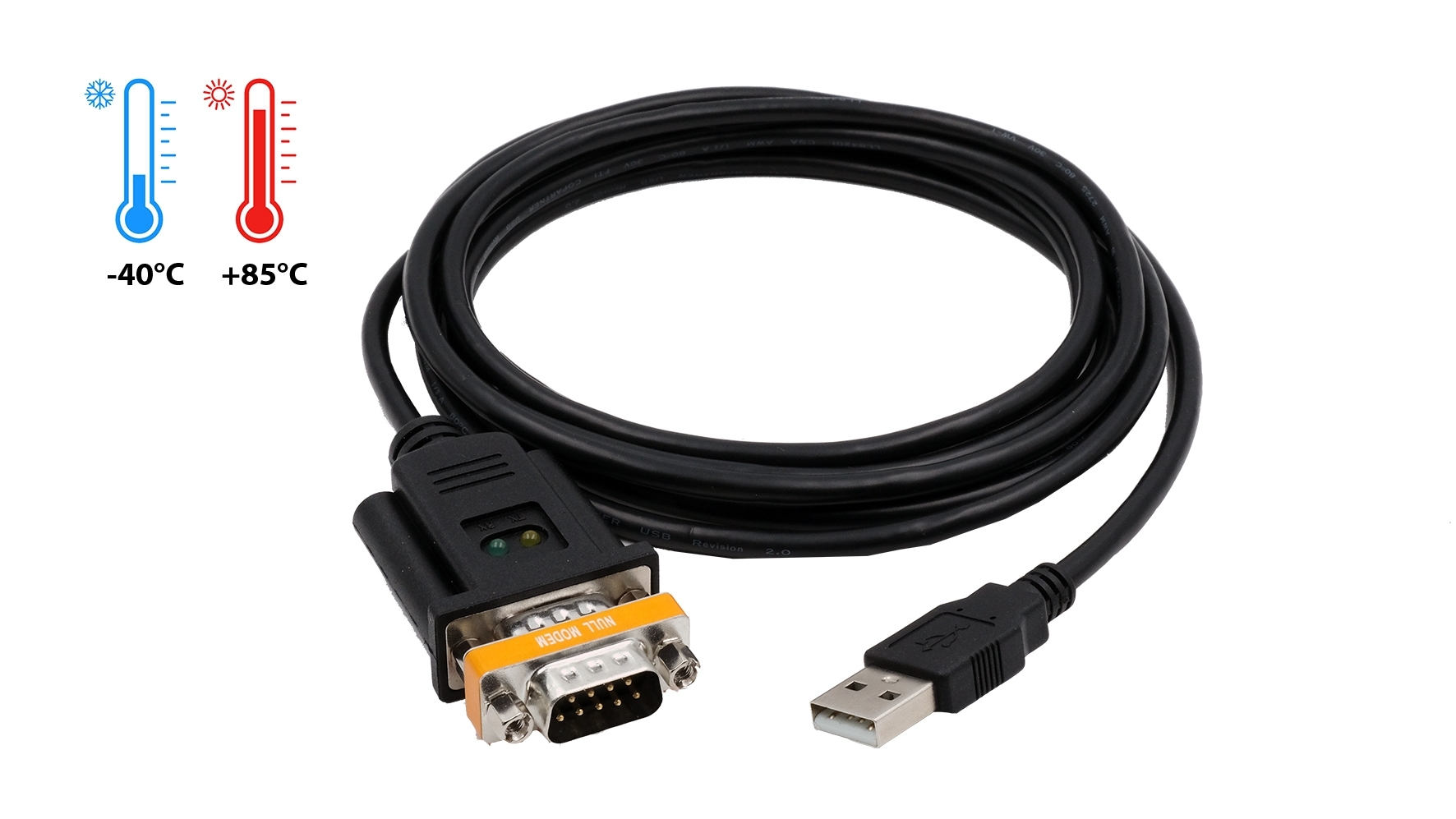

EX-1311-2FT
USB 2.0 to 1S x Serial RS-232 (Female) for temperature from -40°C to +85°C
The USB 2.0 to RS-232 cable with A connector provides a serial RS-232 high performance UART 16C550 output with 9 pin female connector. It supports extended temperatures from -40°C to +85°Celsius. It is designed to add another serial output for PC, small workstation or server via USB 1.1, 2.0 or 3.2 Gen 1 bus. With the easy installation, there is no need to open the computer and the EX-1311-2FT can be installed while the computer is running. With the thumbscrews, the cable can be screwed directly to the serial end device.
Interface RS-232 V.24 Female
Extended temperature range from -40°C to +85°Celsius
16C550 FIFO Buffer with 16Byte
I/O addresses and interrupt is set from the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5 and 2
Parity: none, even, odd, space and mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power from the USB Bus (Bus Power)
LED Display for RX and TX
Chipset: FTDI
Packaging contents:EX-1311-2FT, Driver CD, Manual
EX-1311-2T
USB 2.0 to 1S x Serial RS-232 ports (FTDI) for temperature from -40°C to +85°C
The USB 2.0 to RS-232 cable with A connector provides a serial RS-232 high performance UART 16C550 output. It supports extended temperatures from -40°C to +85°Celsius. It is designed to add another serial output for PC, small workstation or server via USB 1.1, 2.0 or 3.2 Gen 1 bus. With easy installation, there is no need to open the computer and EX-1311-2T can be installed while the computer is running. A 9M to 9M adapter is included, as well as two nuts that can be easily replaced with the thumbscrews if the cable to be connected has screws.
Interface RS-232 V.24
Extended temperature range from -40°C to +85°Celsius
16C550 FIFO Buffer with 16Byte
I/O addresses and interrupt is set from the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5 and 2
Parity: none, even, odd, space and mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power from the USB Bus (Bus Power)
LED Display for RX and TX
Adapter with 9 pin male to 9 pin male incl. nuts
Chipset: FDTI
Packaging contents:EX-1311-2T, Driver CD, 2x hex nuts, Manual
EX-1346
USB 2.0 to 1S x Serial RS-422/485 port with 1.8 meter cable (FTDI Chipset)
The EX-1346 provides one RS-422/485 high performance UART 16C550 serial port. It is designed to add another serial port for PC, small workstation or server via USB 1.1, 2.0 or 3.2 bus. It is the perfect solution for connecting barcode scanners, card readers, scales, etc. Due to the easy installation, the system does not need to be opened and the EX-1346 can be installed while the system is running. Furthermore, a 9 pin female to 5 pin terminal block adapter is included.
The EX-1346 supports COM memory which retains the COM port setting for the serial devices when plugged in and unplugged. Once assigned, COM port values are saved and automatically reassigned correctly after plugging in and unplugging. This also applies when switching between different USB ports.
Interface RS-422/485
16C550 FIFO Buffer with 16Byte
I/O addresses and interrupt is set from the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5 and 2
Parity: none, even, odd, space and mark
Two modes are selectable for the signal: - 4-wire RS-422/485 (TXD+/-, RXD+/-) - 2-wire RS-485 (Data+/-, Data+/-)
Powered from the USB-Port - No external power adapter required
LED Display for RX and TX
Exchangeable screw with hex nuts
Chipset: FTDI
Packaging contents:EX-1346, Driver CD, 2x hex nuts, Adapter 9 pin female to 5 pin TB, Manual
EX-1311VIS
USB 2.0 to 1x RS-232/422/485 port with Surge Protection & Isolation (DIN-Rail)
The EX-1311VIS USB to Serial RS-232/422/485 converter in a metal case provides a high performance RS-232, 422 or 485 serial UART 16C550 interface with 15KV ESD protection and 2.5KV isolation. It is designed to connect serial devices to the USB 1.1 to 3.2 Gen 2 bus of a PC, server or workstation. The supplied EX-K1542V cable can be attached to the EX-1311VIS using knurled screws without the need for a screwdriver. It is therefore impossible to disconnect the cable yourself. A DIN-Rail kit is included for mounting on a top hat rail.
Interfaces: RS-232 V.24, RS-422 and RS-485
15KV ESD protection and 2.5KV insulation
16C550 FIFO buffer of 16 bytes
I/O addresses and interrupt assigned by operating system
Data bits: 7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 signals: 4-wire (TXD+/-, RXD+/-) full duplex
RS-485 signals: 2-wire and 4-wire (Data+/-, Data +/-) half duplex/full duplex
USB bus powered
LED indicators for power, TX and RX
Chipset: FTDI
Packaging includes:EX-1311VIS, USB cable (EX-K1542V), DIN-Rail kit, driver CD, manual
EX-1309-T
USB 2.0 to 1x RS-232/422/485 port with TB 5 pin connector (FTDI Chipset)
The USB 2.0 to RS-232/422/485 cable provides one high performance 16C550-type UART compatible RS-232 serial port. It is designed for PC, thin client, notebook or server to provide instant COM port expansion via the USB 1.1 bis 3.2 Gen 1 Bus. With the easy installation you don't need to open the Computersystem and install the EX-1309-T when the system run.
Interface: RS232 V.24, RS422 and RS485 over a 5 pin Terminal Block
FIFO Buffer: 16C550 with 16Byte
Data Bits: 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Signal RS422: 4-wire (TXD+/-, RXD+/-) Fullduplex
Signal RS485: 2-wire and 4-wire (Data+/-, Data +/-) Halfduplex/Fullduplex
Power from the USB Bus (Bus Power)
Chipset: FTDI
Packaging contents:EX-1309-T, Driver CD, Manual
EX-1309-9
USB 2.0 to 1x Serial RS-232/422/485 port, with 1.8 meter cable (FTDI Chipset)
The USB 2.0 to RS-232/422/485 cable provides one high performance 16C550-type UART compatible RS-232 serial port. It is designed for PC, thin client, notebook or server to provide instant COM port expansion via the USB 1.1 up to 3.2 Gen 1 Bus. With the easy installation you don t need to open the Computersystem and install the EX-1309-9 when the system run.
Interface: RS232 V.24, RS-422 and RS-485 over a 9 pin male connector
FIFO Buffer: 16C550 with 16Byte
Data Bits: 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Signal RS422: 4-wire (TXD+/-, RXD+/-) Fullduplex
Signal RS485: 2-wire and 4-wire (Data+/-, Data +/-) Halfduplex/Fullduplex
Power from the USB Bus (Bus Power)
Support Power over DB9 connector (optional)
Chipset: FTDI
Packaging contents:EX-1309-9, Driver CD, Manual
EX-1346IS
USB 2.0 to 1x Serial RS-422/485 Port with 15KV Surge Protection and 4.0KV Isolation
The EX-1346IS USB to Serial Cable provides a high performance RS-422/485 UART 16C550 serial port with 15KV ESD surge protection and 4.0KV isolation. It is designed to connect serial devices to the USB 1.1 to 3.2 Gen 2 bus of a PC, server or workstation. Simple installation on the USB port means there is no need to open the computer and the converter can be installed while the computer is running. A DB9 to 5 pin terminal block adapter is also supplied. The cable provides the perfect solution for connecting barcode scanners, card readers, scales, etc.
The converter remembers the COM port settings for the serial devices. This means that they are automatically reassigned correctly after being plugged in and unplugged - even when switching between different USB ports.
RS-422/485 interface
15KV ESD overvoltage protection and 4.0KV isolation
16C550 FIFO buffer with 16 bytes
I/O addresses and interrupt are assigned by the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5 and 2
Parity: none, even, odd, space and mark
Two signal settings are available:- 4-wire RS-422/485 (TXD+/-, RXD+/-)- 2-wire RS-485 (Data+/-, Data+/-)
USB bus powered - no external power supply required
LED indicators for RX and TX
Interchangeable screws with hex nuts
Chipset: FTDI
Package contents:EX-1346IS, driver CD, 2x hex nuts, adapter 9 pin female to 5 pin TB, manual
