USB 2.0 C-male connector to serial RS-422/485 cable, (FTDI Chip)
The EX-2346 USB-C to serial cable provides one RS-422/485 high performance UART 16C550 serial port. It is designed to add another serial port to PC, workstation or server via USB 1.1, 2.0 or 3.2 bus with C connector. It is the perfect solution for connecting barcode scanners, card readers, scales, etc. Due to the easy installation, the system does not need to be opened and the cable can be installed while the system is running. Furthermore, a 9 pin female to 5 pin terminal block adapter is included.
The EX-2346 supports COM memory which retains the COM port setting for the serial devices when plugged in and unplugged. Once assigned, COM port values are saved and automatically reassigned correctly after plugging in and unplugging. This also applies when switching between different USB ports.
- Interface RS-422/485
- 16C550 FIFO Buffer with 16Byte
- I/O addresses and interrupt is set from the operating system
- Data bits: 7 and 8
- Stop bits: 1, 1.5 and 2
- Parity: none, even, odd, space and mark

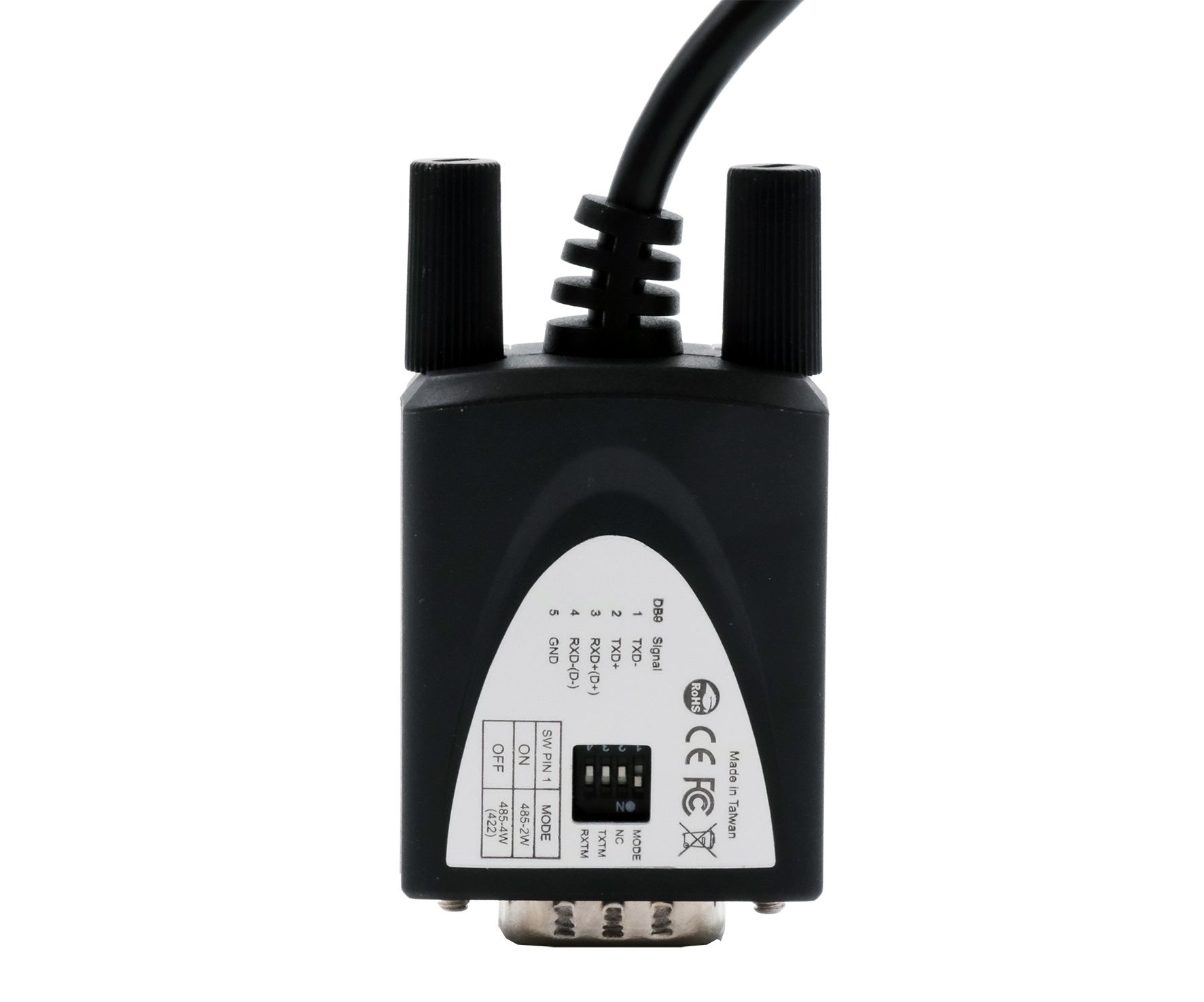

- Two modes are selectable for the signal:
- 4-wire RS-422/485 (TXD+/-, RXD+/-)
- 2-wire RS-485 (Data+/-, Data+/-) - Powered from the USB-Port - No external power adapter required
- LED Display for RX and TX

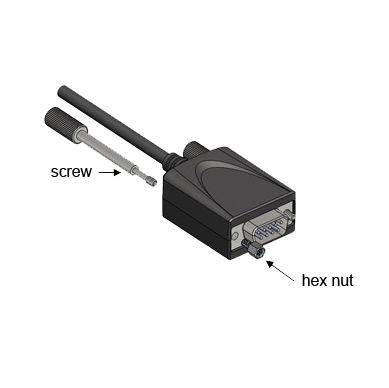

- Exchangeable screw with hex nuts
- Chipset: FTDI

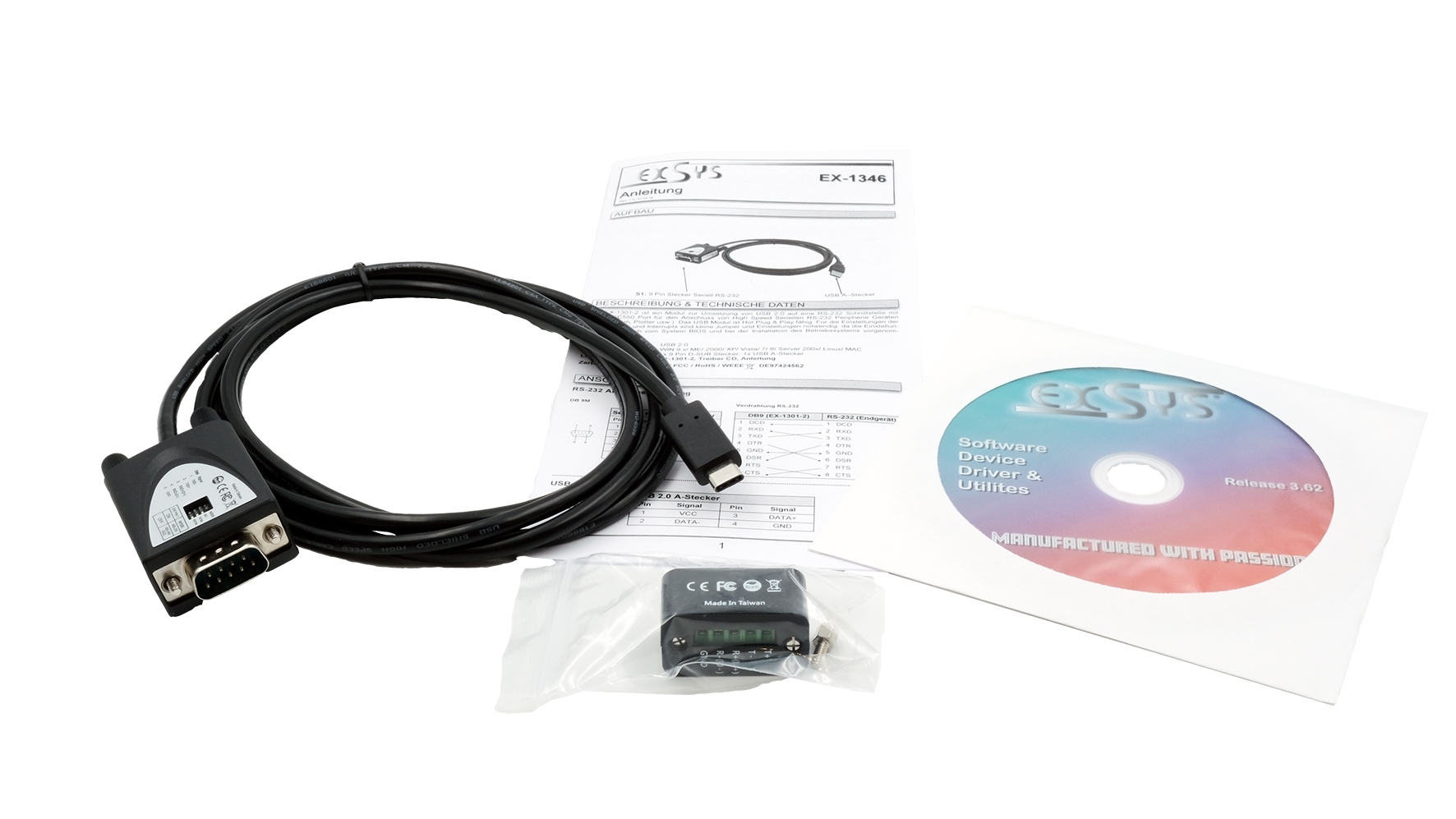

Packaging contents:

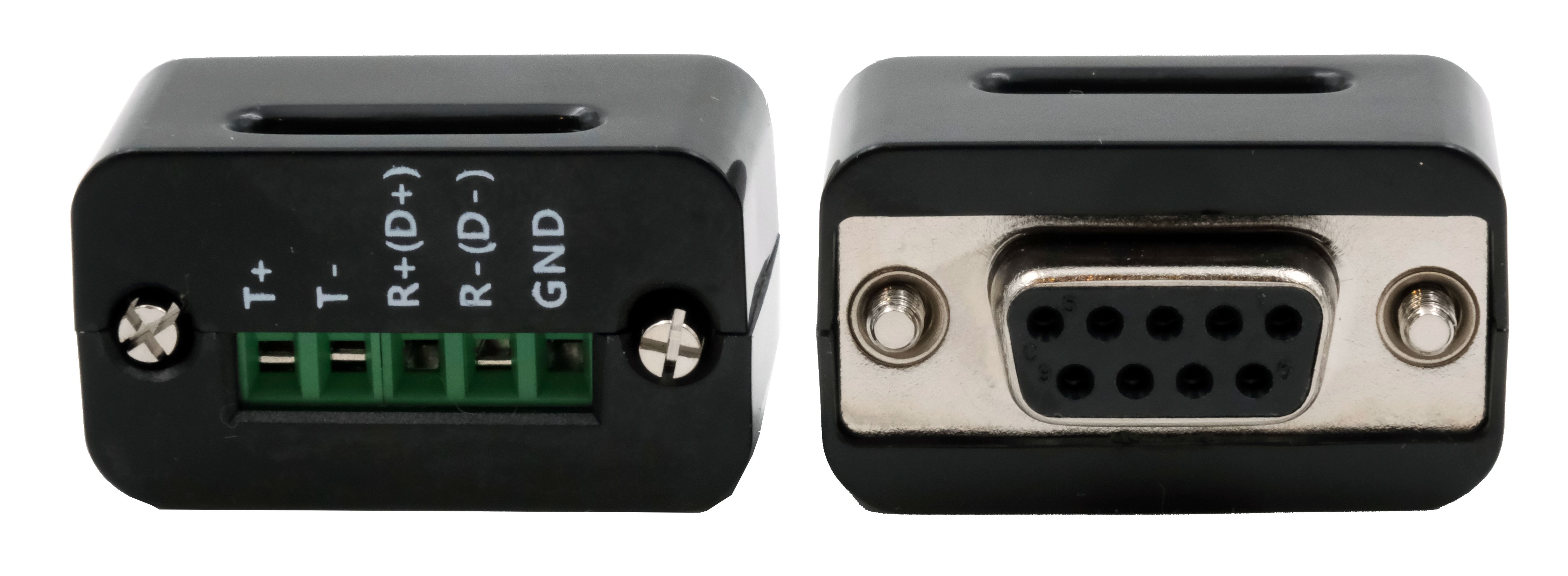

EX-2346, Driver CD, 2x hex nuts, Adapter 9 pin female to 5 pin TB, Manual
| Application: | Cable |
|---|---|
| Cable length: | 1.8m |
| Colour: | black |
| Housing: | Plastic |
| Inputs: | USB-C plug |
| Interface: | RS-422/485 |
| Number of ports: | 1 |
| Outputs: | 9-pin plug |
| Power connection: | Bus Power |
| Temperature range: | 0°C to +55°C |
