USB 2.0 (C-connector) to 1S Serial RS232 Port with 15KV Surge Protection & 4KV Isolation
Product number:
EX-2311-2IS
GTIN/EAN:
4718359231155
USB 2.0 (C-connector) to 1S Serial RS232 Port with 15KV Surge Protection & 4KV Isolation

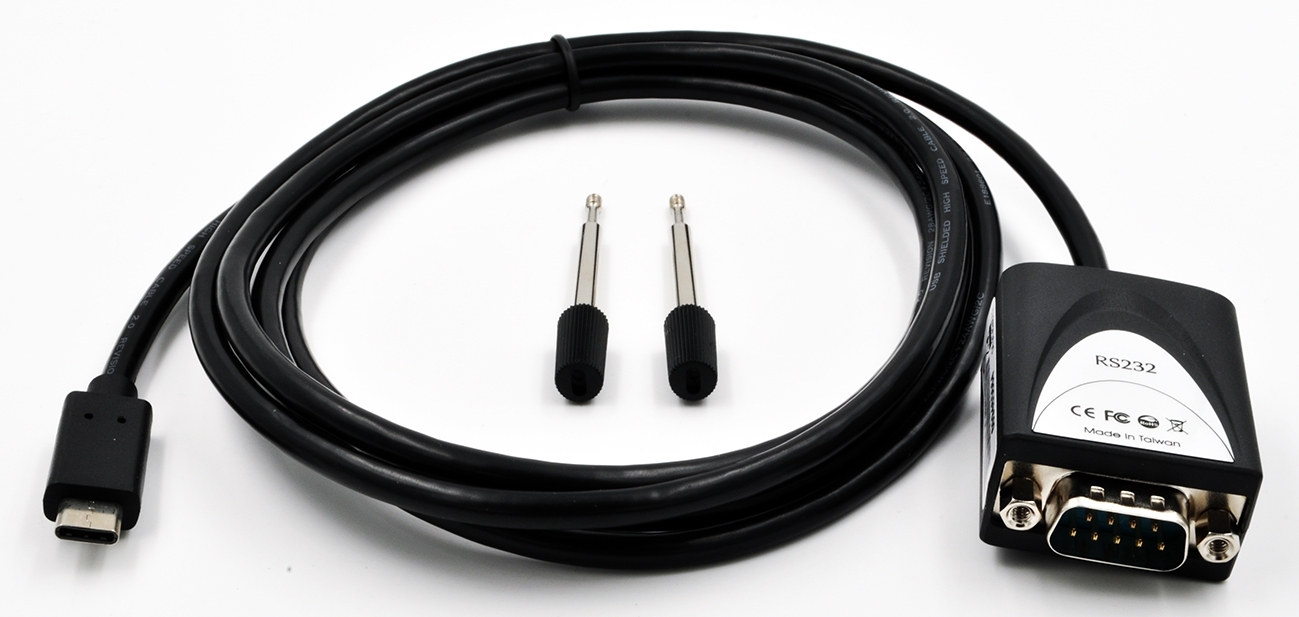

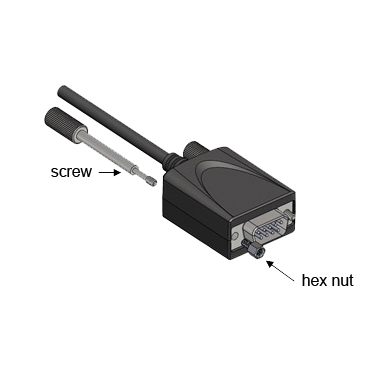

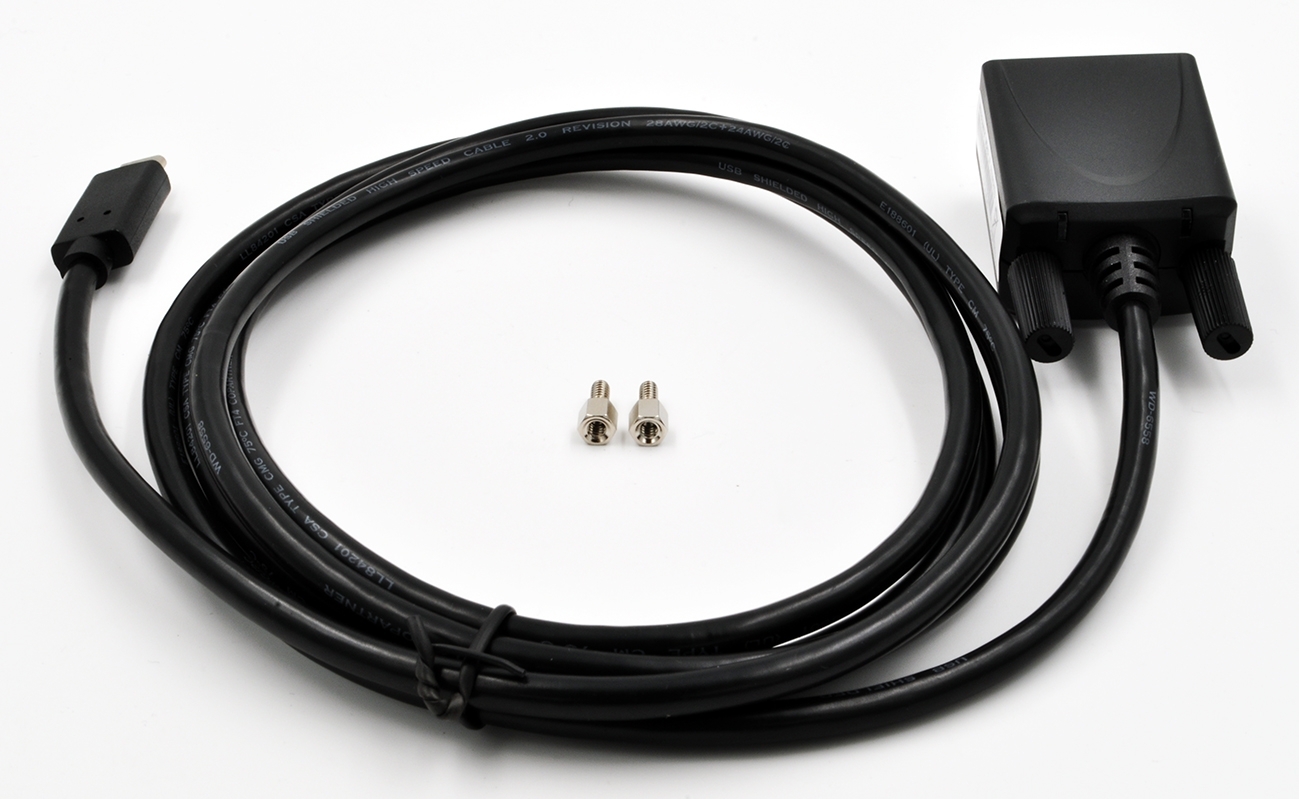

The EX-2311-2IS USB-C to RS-232 cable provides a high performance RS-232 serial UART 16C550 interface with 15KV surge protection & 4KV isolation. It is designed to connect serial devices to the USB 1.1 to 3.2 Gen 2 bus of a PC, server or workstation. Simple installation on the USB port means there is no need to open the computer and the converter can be installed while the computer is running. The knurled screws can be replaced with the two nuts supplied if the cable to be connected has screws.
- Interface: RS-232 V.24
- FIFO Buffer: 16C550 with 16Byte
- 15KV Surge Protection & 4KV Isolation
- II/O addresses and interrupt assigned by operating system
- Data Bits: 7 and 8
- Stop Bits: 1, 1.5, 2
- Parity: none, even, odd, space, mark
- Signal RS-232: TxD, RxD, RTS, CTS, GND
- Powered by USB bus (bus power)
- Interchangeable screws with hex nuts
- LED Display for RX and TX
- Chipset: FTDI
Packaging contents:
EX-2311-2IS, driver CD, 2x hex nuts, manual
| Application: | Cable |
|---|---|
| Cable length: | 1.8m |
| Colour: | Black |
| Housing: | Plastic |
| Inputs: | USB-C plug |
| Interface: | RS-232 |
| Isolation: | 4KV |
| Number of ports: | 1 |
| Outputs: | 9-pin plug |
| Power connection: | Bus Power |
| Surge protection: | 15KV ESD |
| Temperature range: | 0°C to +55°C |
