USB 2.0 (C-connector) to 1S Serial RS232 Port with female, 1.8 meter cable (FTDI Chipset)
Product number:
EX-2311-2F
GTIN/EAN:
4718359231148
USB 2.0 (C-connector) to 1S Serial RS232 Port with female, 1.8 meter cable (FTDI Chipset)
The USB 2.0 to RS-232 cable with C connector EX-2311-2F provides a serial RS-232 high performance UART 16C550 output. It is designed to add another serial output to PC, workstation or server via USB 1.1 or 2.0 bus. Easy installation means there is no need to open the computer and the cable can be installed while the computer is running. The EX-2311-2F has a 9 pin female connector (DCE) and can therefore be connected directly to the end device. Two nuts are included, which can be easily replaced with the thumbscrews if the cable to be connected has screws.
- Interface: RS-232 V.24
- FIFO Buffer: 16C550 with 16Byte
- I/O addresses and Interrupt: Set from the operating system
- Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
- Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- LED Display for RX and TX
- Power from the USB Bus (Bus Power)

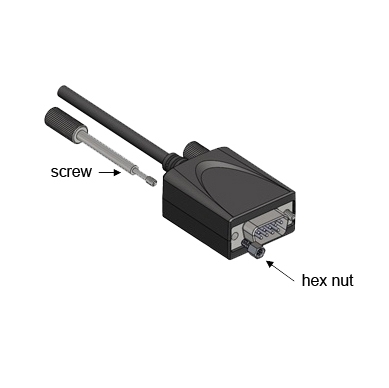

- Exchangeable screw with hex nuts
- Chipset: FTDI
Packaging contents:
EX-2311-2F, Driver CD, 2x hex nuts, Manual
| Application: | Cable |
|---|---|
| Cable length: | 1.8m |
| Colour: | Black |
| Housing: | Plastic |
| Inputs: | USB-C plug |
| Interface: | RS-232 |
| Number of ports: | 1 |
| Outputs: | 9-pin socket |
| Power connection: | Bus Power |
| Temperature range: | 0°C to +55°C |
