USB 2.0 to 1S Serial RS-232 Port with 15KV Surge Protection & 4KV Isolation (FTDI Chipset)
Product number:
EX-1311-2IS
GTIN/EAN:
4718359131158
USB 2.0 to 1S Serial RS-232 Port with 15KV Surge Protection & 4KV Isolation (FTDI Chipset)

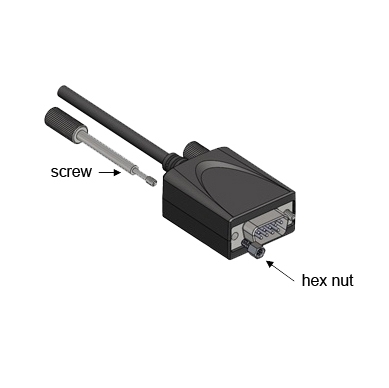

The EX-1311-2IS USB to Serial Cable provides a high performance RS-232 UART 16C550 serial interface with 15KV ESD surge protection and 2.5KV isolation. It is designed to connect serial devices to the USB 1.1 to 3.2 Gen 2 bus of a PC, server or workstation. Easy installation means there is no need to open the computer and the EX-1311-2IS can be installed while the system is running. The knurled screws can be replaced by the two nuts supplied if the cable to be connected has screws.
- Interface: RS232 V.24
- 16C550 FIFO buffer with 16Byte
- 15KV surge protection & 4KV isolation
- I/O addresses and interrupt assigned by operating system
- Data bits: 7 and 8
- Stop bits: 1, 1.5, 2
- Parity: none, even, odd, space, mark
- Signals RS232: TxD, RxD, RTS, CTS, GND
- LED indicators for RX and TX
- Powered by USB bus (bus power)
- Interchangeable screws with hex nuts
- Chipset: FTDI
Package contents:
EX-1311-2IS, driver CD, 2x hex nuts, manual
| Application: | Cable |
|---|---|
| Cable length: | 1.8m |
| Colour: | Black |
| Housing: | Plastic |
| Inputs: | USB-A plug |
| Interface: | RS-232 |
| Isolation: | 4KV |
| Number of ports: | 1 |
| Outputs: | 9-pin plug |
| Power connection: | Bus Power |
| Surge protection: | 15KV ESD |
| Temperature range: | 0°C to +55°C |
