USB 2.0 to 1S serial RS-232 port female with +5V on pin 9 (FTDI Chipset)
Product number:
EX-1311-2F-5V
GTIN/EAN:
4718359131172
USB 2.0 to 1S serial RS-232 port female with +5V on pin 9 (FTDI Chipset)

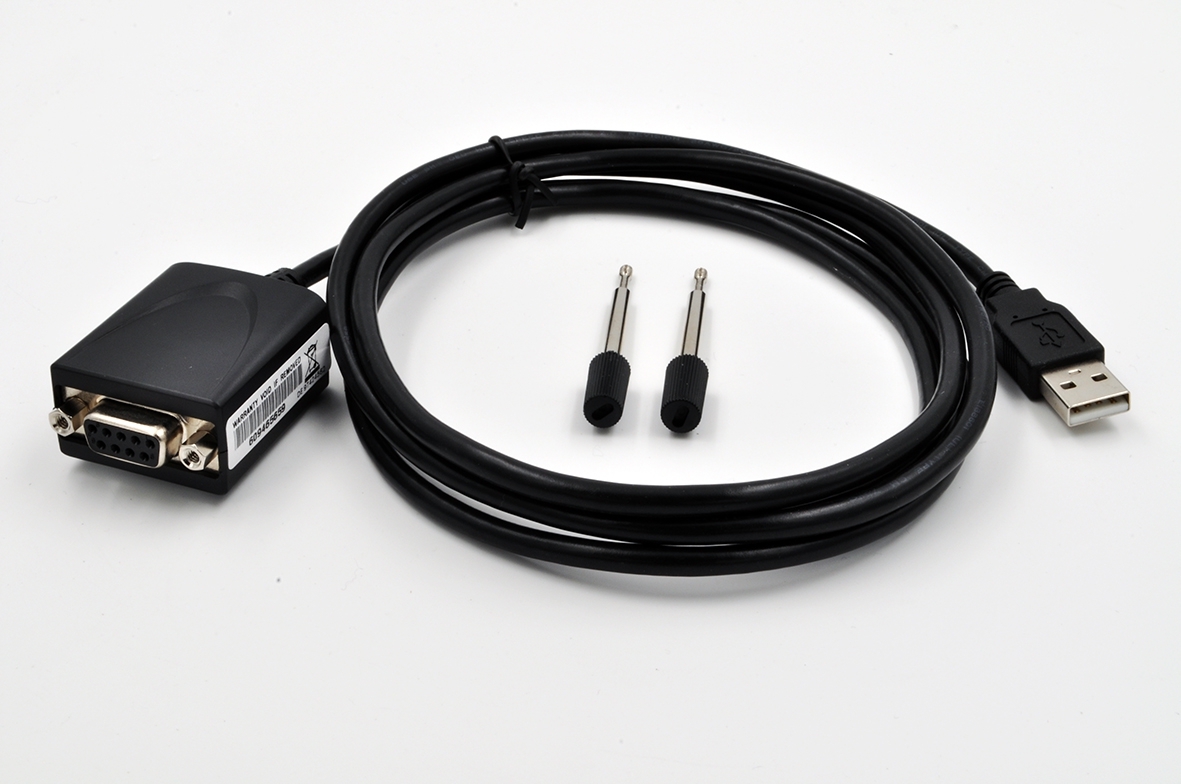

The USB 2.0 to RS-232 cable with A-connector provides one high performance 16C550-type UART compatible RS-232 serial port. It supports the external voltage of +5V especially on pin 9 of the female connector. With the easy installation you don t need to open the computer system and install the EX-1311-2F-5V when the system run. The EX-1311-2F-5V can connect directly to the devices because it is equipped with a 9 pin female connector (DCE). We include two hex nut, what can replace with two screws from the EX-1311-2F-5V, if the opposite cable has screws.
- Interface RS-232 V.24 with +5V to pin 9 by the female connector
- 16C550 FIFO Buffer with 16ByteI/O addresses and interrupt is set from the operating system
- Data bits: 7 and 8
- Stop bits: 1, 1.5 and 2
- Parity: none, even, odd, space and mark
- Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Power from the USB Bus (Bus Power)
- LED Display for RX and TX

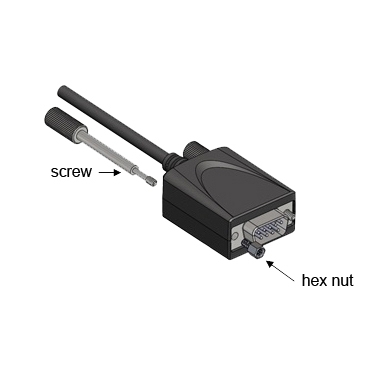

- Exchangeable screw with hex nuts
- Chipset: FTDI

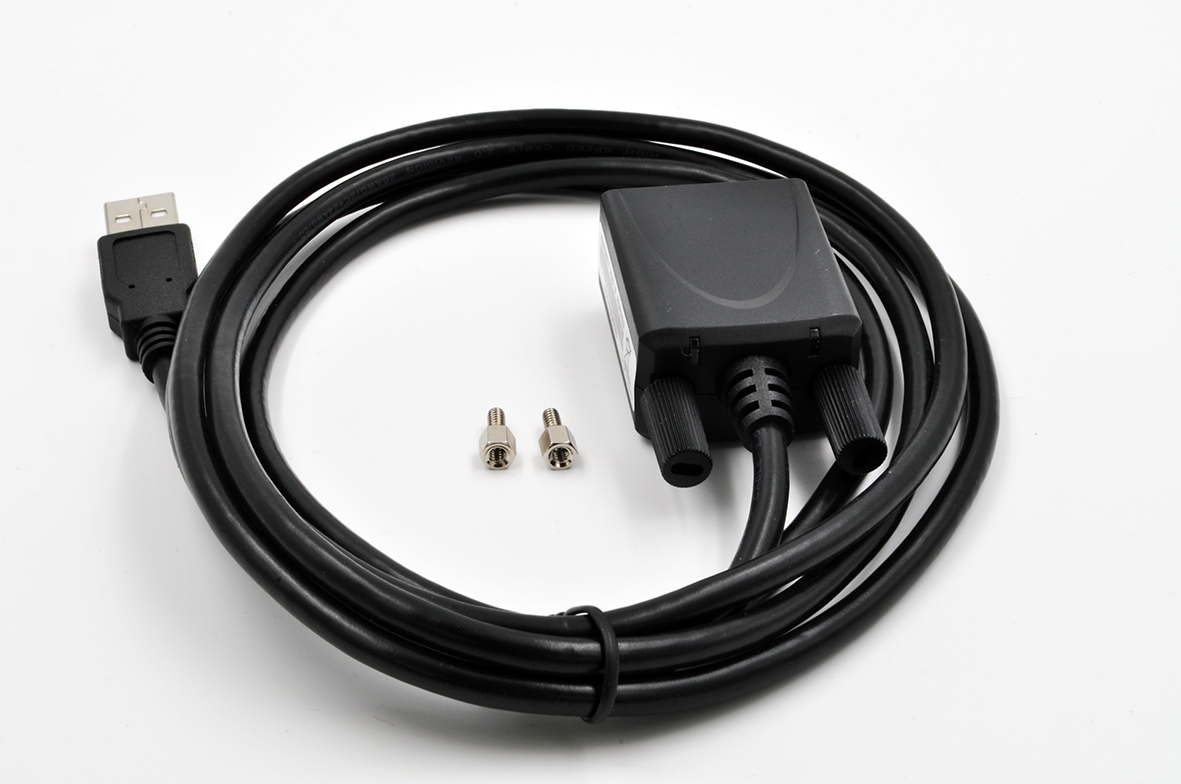

Packaging contents: EX-1311-2F-5V, Driver CD, 2x hex nuts, Manual
| Application: | Cable |
|---|---|
| Cable length: | 1.8m |
| Colour: | Black |
| Housing: | Plastic |
| Inputs: | USB-A plug |
| Interface: | RS-232/+5V |
| Number of ports: | 1 |
| Outputs: | 9-pin plug |
| Power connection: | Bus Power |
| Temperature range: | 0°C to +55°C |
