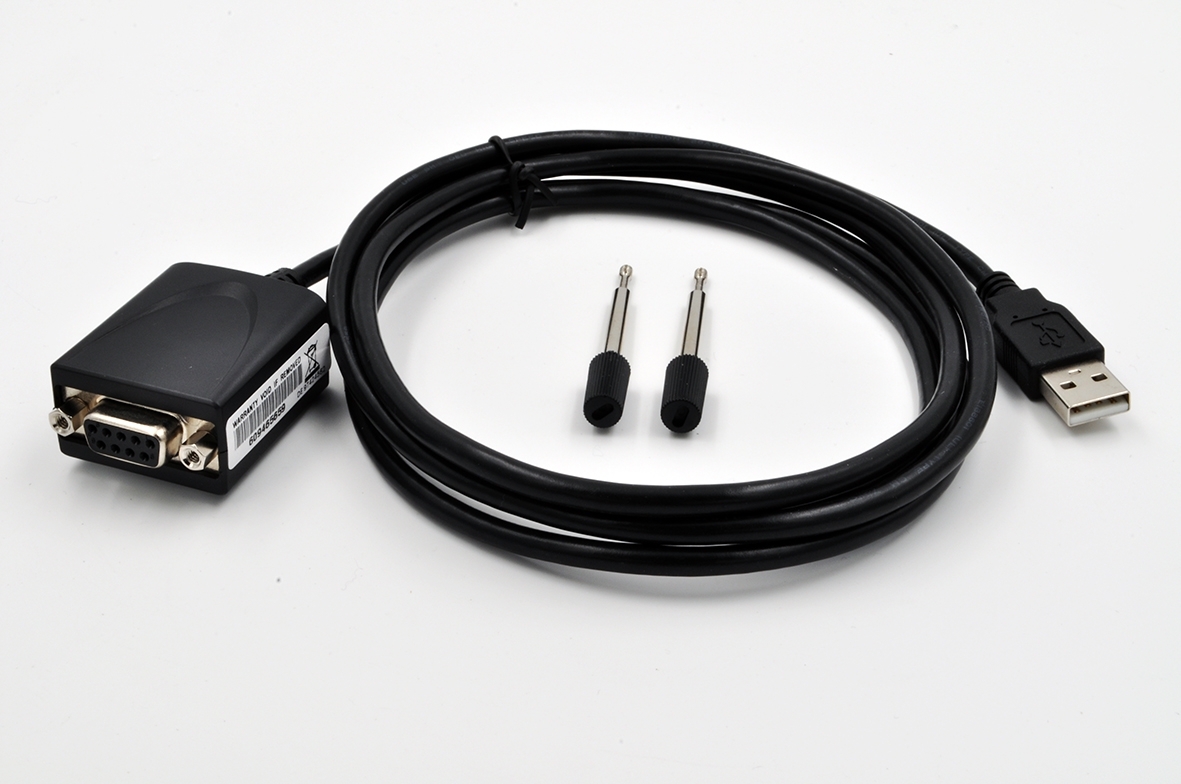

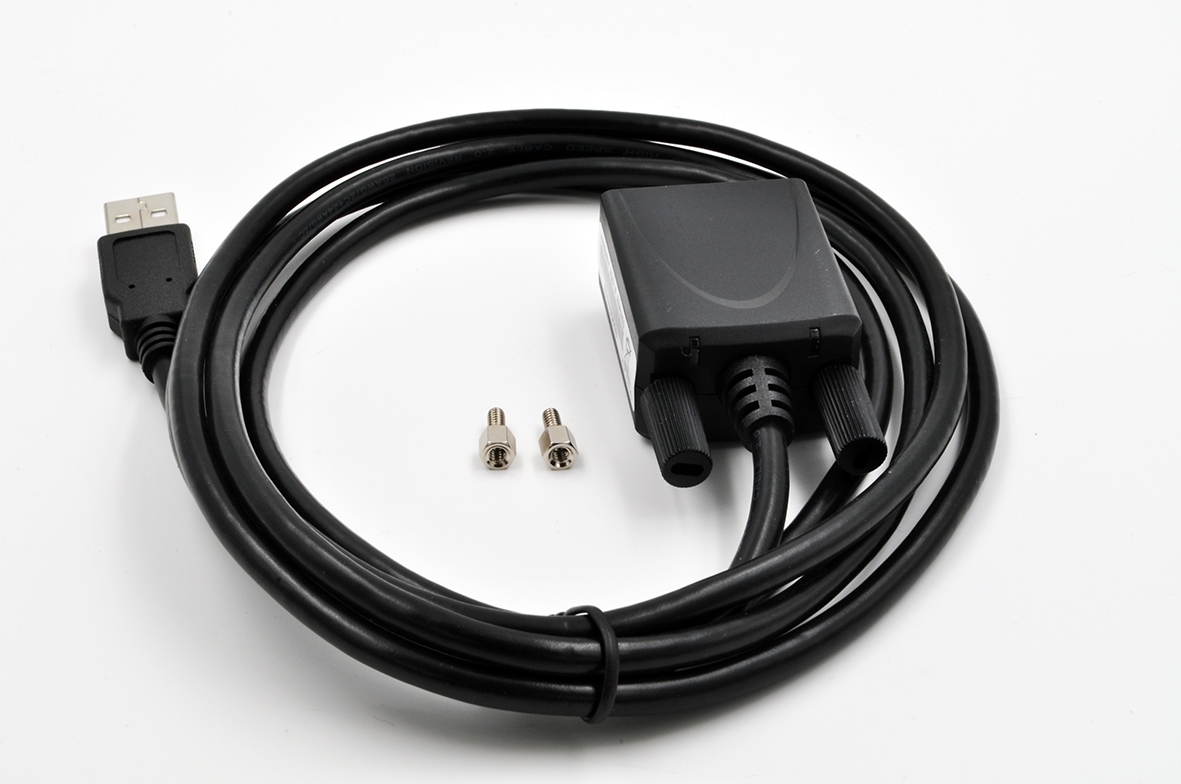

USB 2.0 to 1S Serial RS232 Port with female connector, 1.8 meter cable (FTDI Chipset)
Product number:
EX-1311-2F
GTIN/EAN:
4718359131141
USB 2.0 to 1S Serial RS232 Port with female connector, 1.8 meter cable (FTDI Chipset)

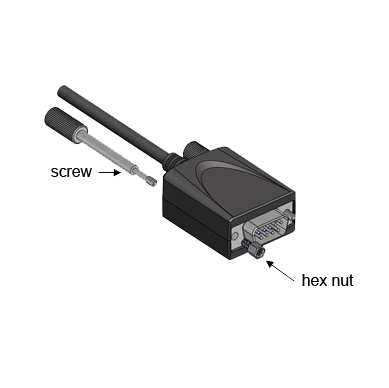

The USB 2.0 to RS-232 cable with A-female connector provides one high performance 16C550-type UART compatible RS-232 serial port. It is designed for PC, thin client or server to provide instant COM port expansion via the USB 1.1up to 3.2 Gen 1 Bus. With the easy installation you don t need to open the Computersystem and install the EX-1311-2 when the system run. We include two hex nut, what can replace with two screws from the EX-1311-2, if the opposite cable has screws.
- Interface: RS-232 V.24
- FIFO Buffer: 16C550 with 16Byte
- I/O addresses and Interrupt: Set from the operating system
- Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
- Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- LED Display for RX and TX
- Power from the USB Bus (Bus Power)
- Exchangeable screw with hex nuts
- Chipset: FTDI
Packaging contents:
EX-1311-2F, Driver CD, 2x hex nuts, Manual
| Application: | Cable |
|---|---|
| Cable length: | 1.8m |
| Colour: | Black |
| Housing: | Plastic |
| Inputs: | USB-A plug |
| Interface: | RS-232 |
| Number of ports: | 1 |
| Outputs: | 9-pin socket |
| Power connection: | Bus Power |
| Temperature range: | 0°C to +55°C |
