USB 3.2 Gen 1 B-Port to Ethernet 1 Gigabit incl. DIN-Rail Kit (Metal Case)
Product number:
EX-13021HMV
GTIN/EAN:
4718359909993
USB 3.2 Gen 1 B-Port to Ethernet 1 Gigabit incl. DIN-Rail Kit (Metal Case)

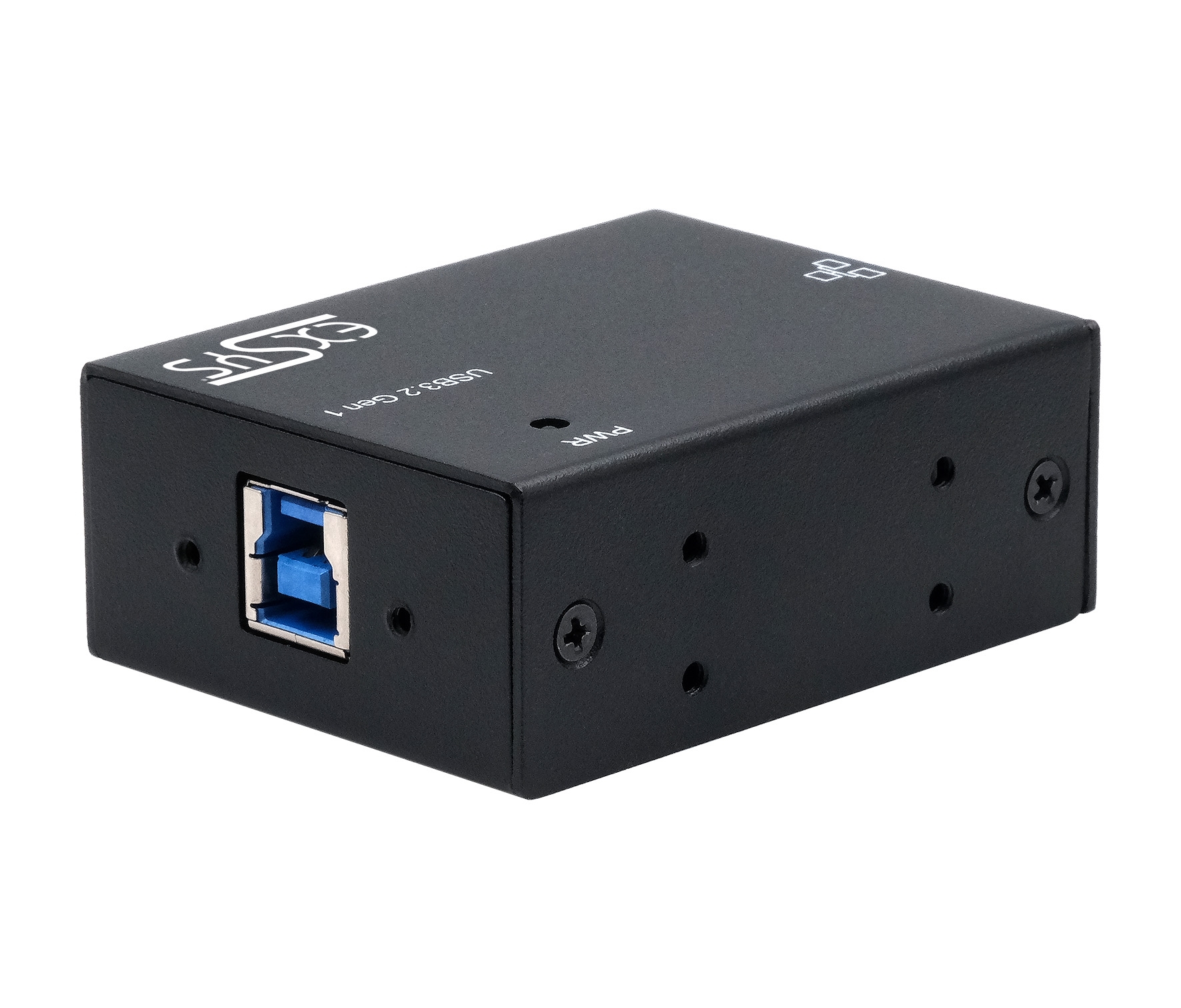

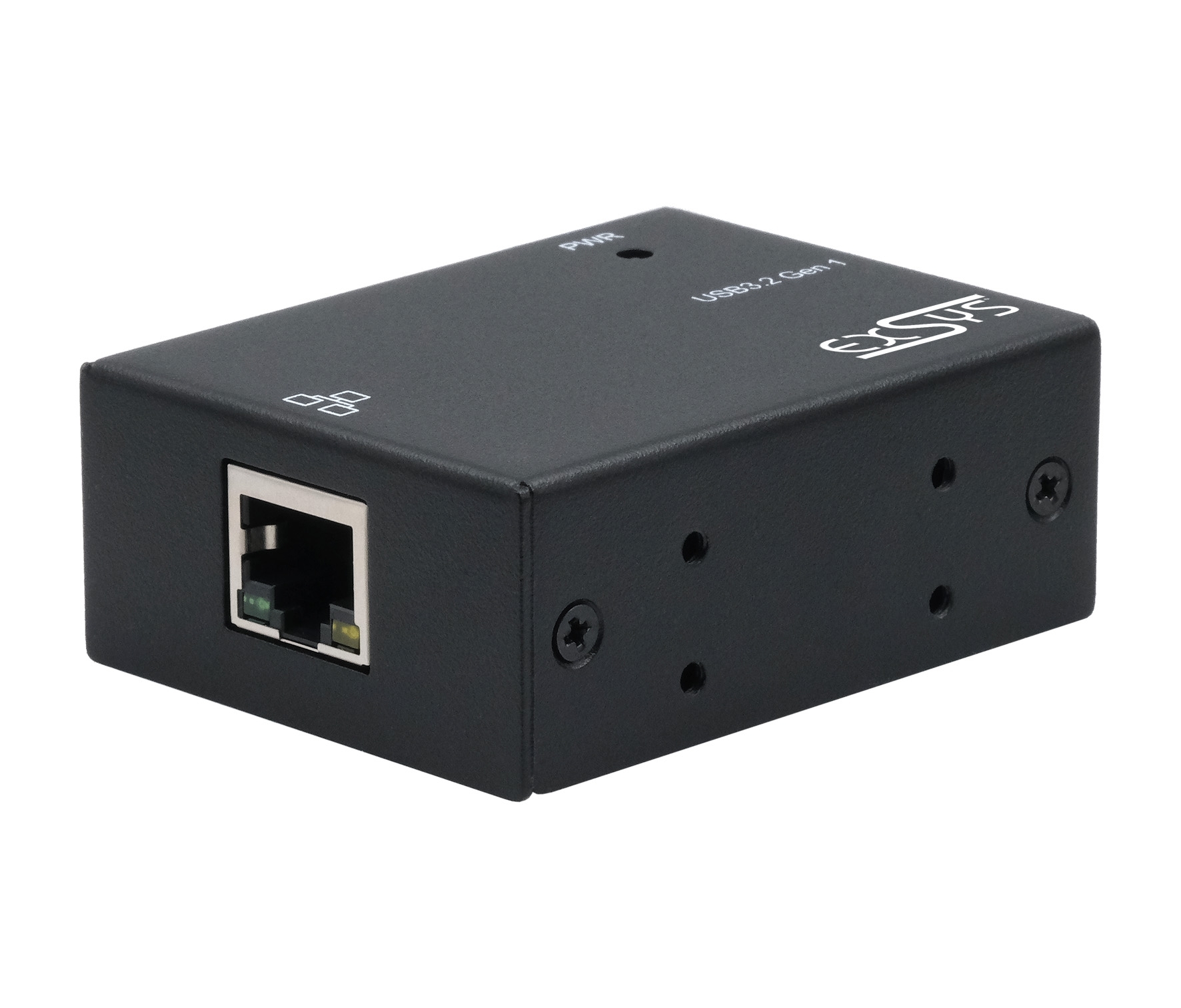

The EX-13021HMV allows you to connect a notebook, desktop PC or server in a 19-inch rack to a 10/100/1000 Mbit/s network via the USB-B port (USB 3.2 Gen 1). It can also be installed in addition to an existing network card. Installation is very easy and does not require opening the systems. Due to its compact and robust design, the EX-13021HMV is ideal for use in harsh environments. Additionally, the USB 3.2 Gen 1 cable can be screwed to the EX-13021HMV. The delivery package includes two wall mounting brackets and a DIN-Rail kit for installation in a 19" rack.
- Compliant with Universal Serial Bus 3.2 Gen 1
- Backward compatible with USB 2.0 and USB 1.1
- Supports full-duplex operation with IEEE 802.3x flow control and half-duplex operation with back-pressure flow control
- Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports IEEE 802.3az (Energy Efficient Ethernet)
- Supports crossover detection and auto-correction
- Power supply from USB bus (bus power)
- Supports ‘Wake-on-LAN’
- Screw-on USB 3.2 Gen 1 cable for secure installation

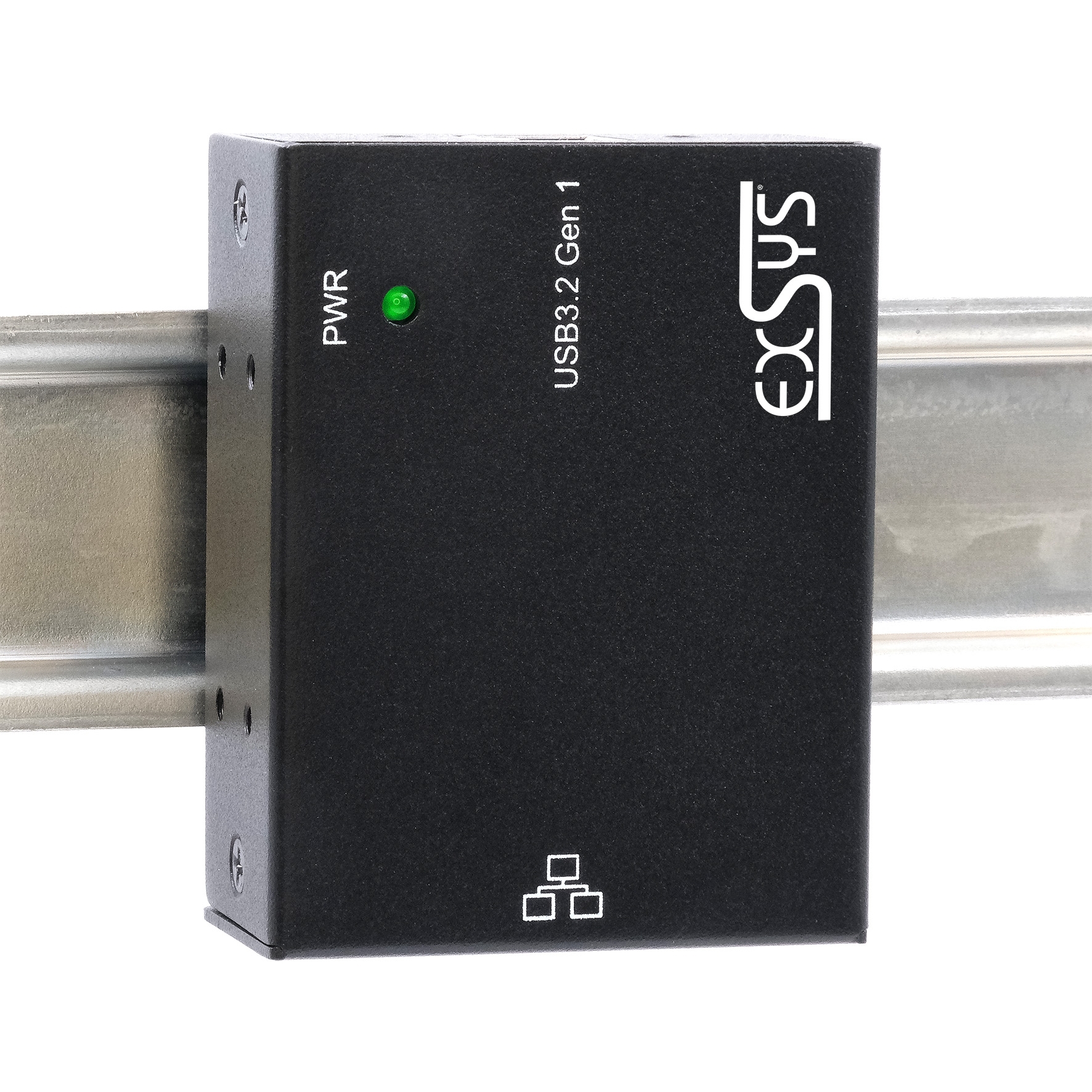

- Metal housing with wall and DIN rail kit for industrial applications
- LED indicator for power and Ethernet connection
- Chipset: ASIX AX88179
Packaging contents:

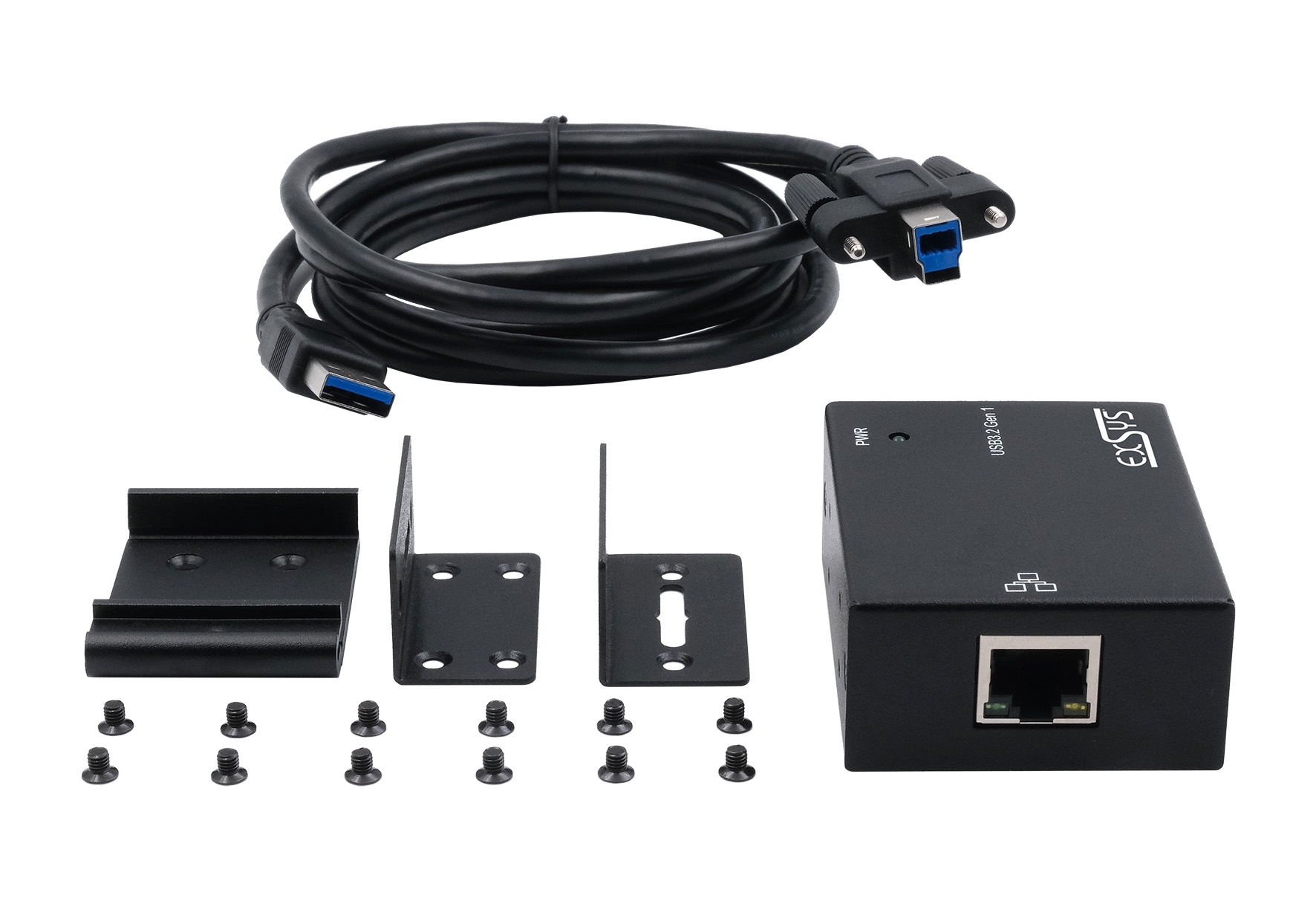

EX-13021HMV, USB 3.2 Gen 1 cable (screw-lock), wall mounting bracket, DIN-Rail kit, manual
| Cable length: | 1.8m |
|---|---|
| Colour: | black |
| Housing: | Metal |
| Inputs: | USB-B Socket |
| Interface: | USB 3.2 Gen 1 |
| Mounting Type: | DIN-Rail |
| Number of ports: | 1 |
| Outputs: | Ethernet 1Gbps |
| Power connection: | Bus power |
| Temperature range: | 0°C to +70°C |
Skip product gallery
€14.38*
accessories
EX-K1581V
USB 3.2 Gen 1 cable A male to B male with screw lock, 1.5 meter
Connection cable USB 3.2 Gen 1 A male to B male with thumbscrews. The USB 3.2 Gen 1 connection cable provides a consistently high data transfer rate of up to 5Gbps thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer that has a threaded A connector and the various EXSYS products that have threaded B connectors.
Technical specification:
USB 3.2 Gen 1 (USB 3.0) Connector Cable.
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 5Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
24mm knurled screw spacing
Shielding: braided and foil shielding
Color: Black
Length: 1.5 meters
