PoE+ Splitter, 10/100Mbps, 12VDC/21W
Product number:
EX-60320
GTIN/EAN:
4718359603204
PoE+ Splitter, 10/100Mbps, 12VDC/21W

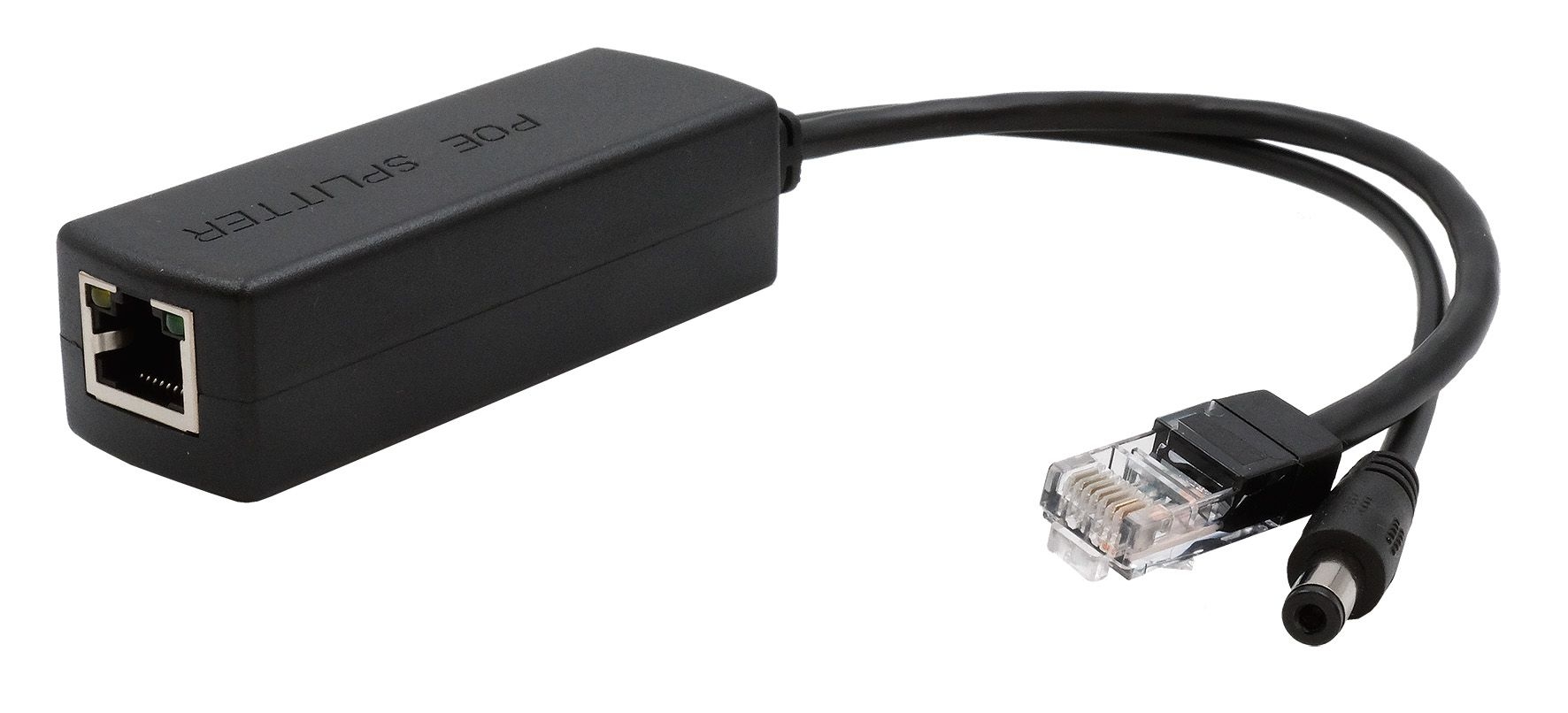

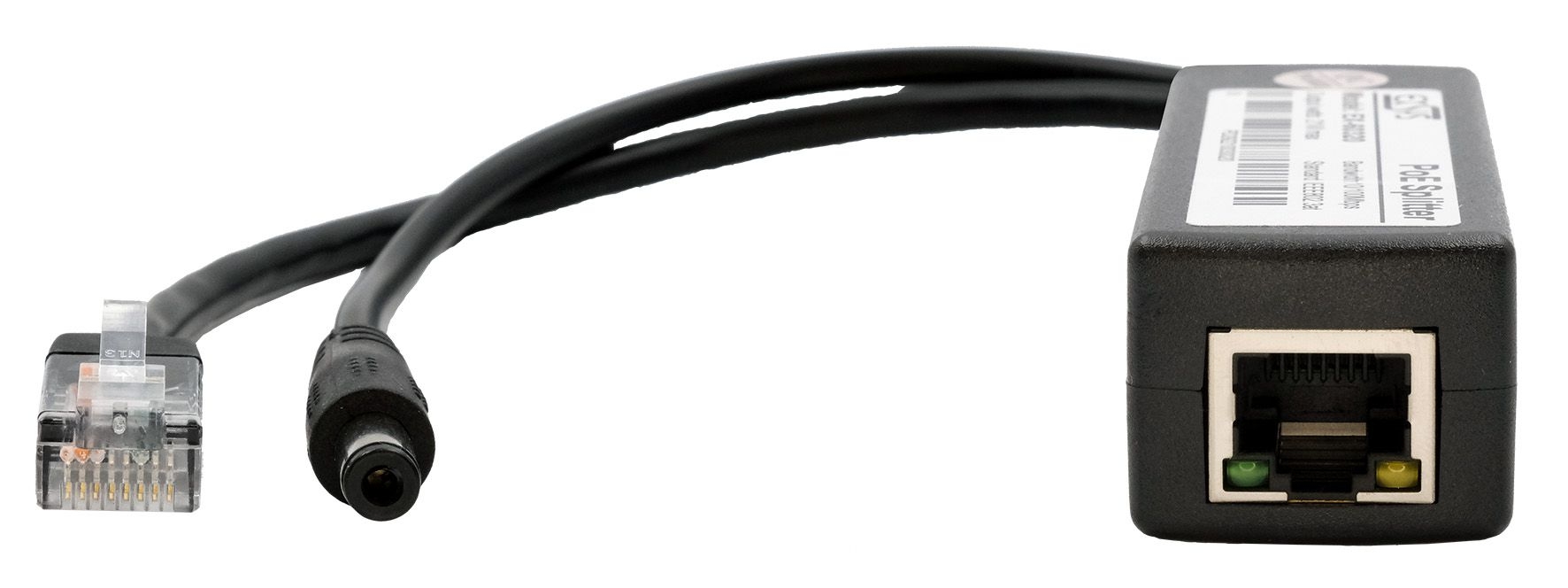

The Ethernet PoE+ Splitter EX-60320 splits the signal of a PoE supplier (PSE) into data and power supply and outputs both signals separately. This allows non-PoE-capable Ethernet end devices (IP cameras, WLAN access points...) to be connected to a PoE switch or other PSE and use their power supply. It is compliant with the PoE+ standard IEEE 802.3at and provides a voltage of 12VDC at the DC connector with a power of max. 21W to feed the end device. The compact design as adapter cable offers extremely flexible application possibilities.
- Separates data and power supply of a PoE signal to power non-PoE capable Ethernet end devices
- Reduces system wiring, improves system stability/security, and reduces maintenance costs
- Voltage output at DC connector: 12VDC max. 21W
- Fully IEEE 802.3af/at Power Over Ethernet (PoE) compliant
- 10/100Base-TX Ethernet
- Plug and play, no configuration and installation required
- LED status indicators for PoE power supply
- Compact design as a cable adapter
- ABS and flame retardant polycarbonate plastic enclosure
- 2 KV insulation protection, protection against short circuit, overcurrent and overtemperature

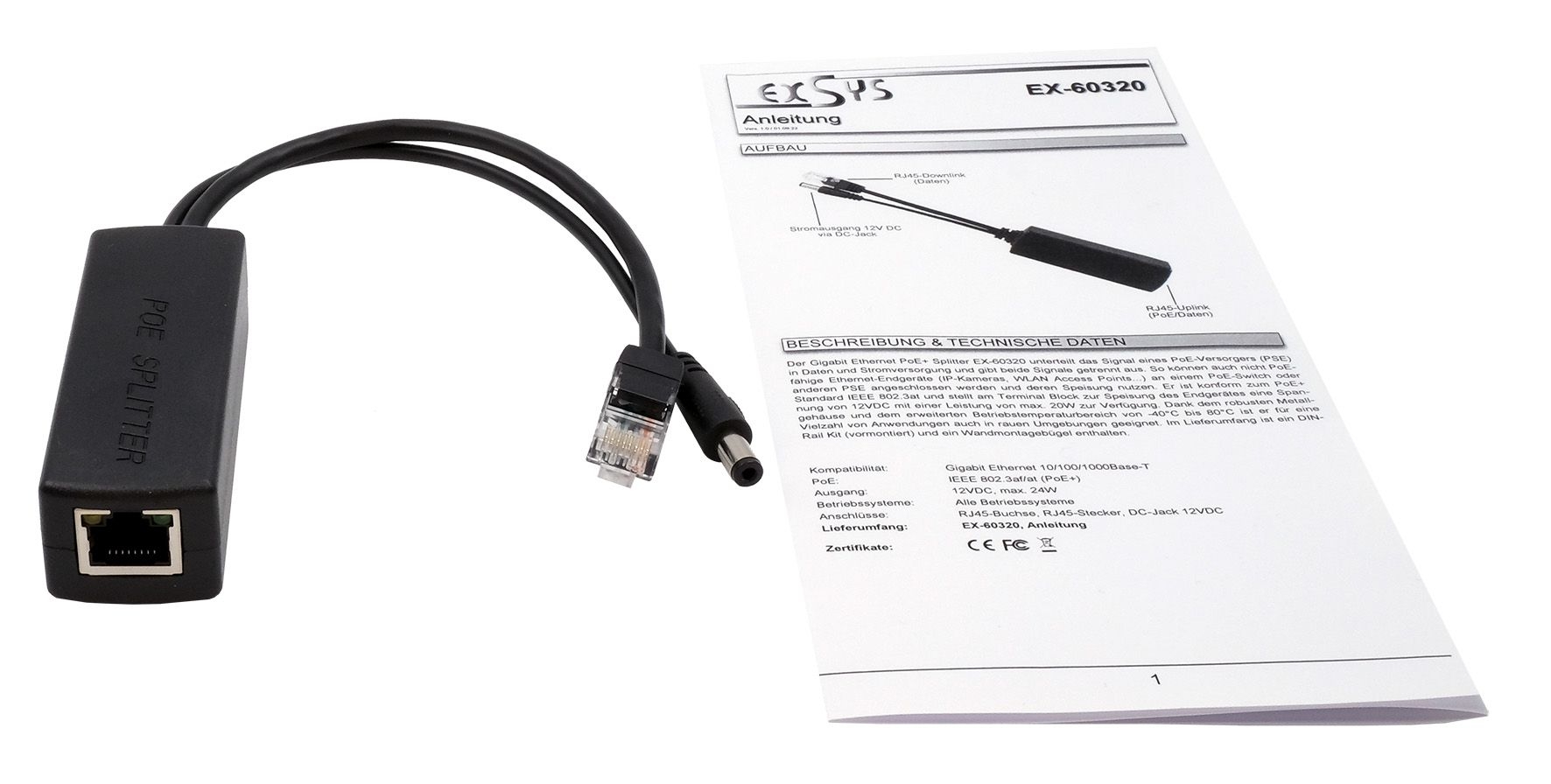

Packaging contents:
EX-60320, Manual
| Connections: | RJ45 |
|---|---|
| Data transmission: | 100Base-T |
| Design: | Cable |
| Interface: | Ethernet |
| Number of ports: | 2 |
| Power connection: | DC Jack 12V/21W |
| Power over Ethernet: | Yes (PD) |
| Temperature range: | 0°C to +55°C |
