mini PCIe SATA 3 controller for two HDD and SSD drives
Product number:
EX-48080-2
GTIN/EAN:
4718359488054
mini PCIe SATA 3 controller for two HDD and SSD drives

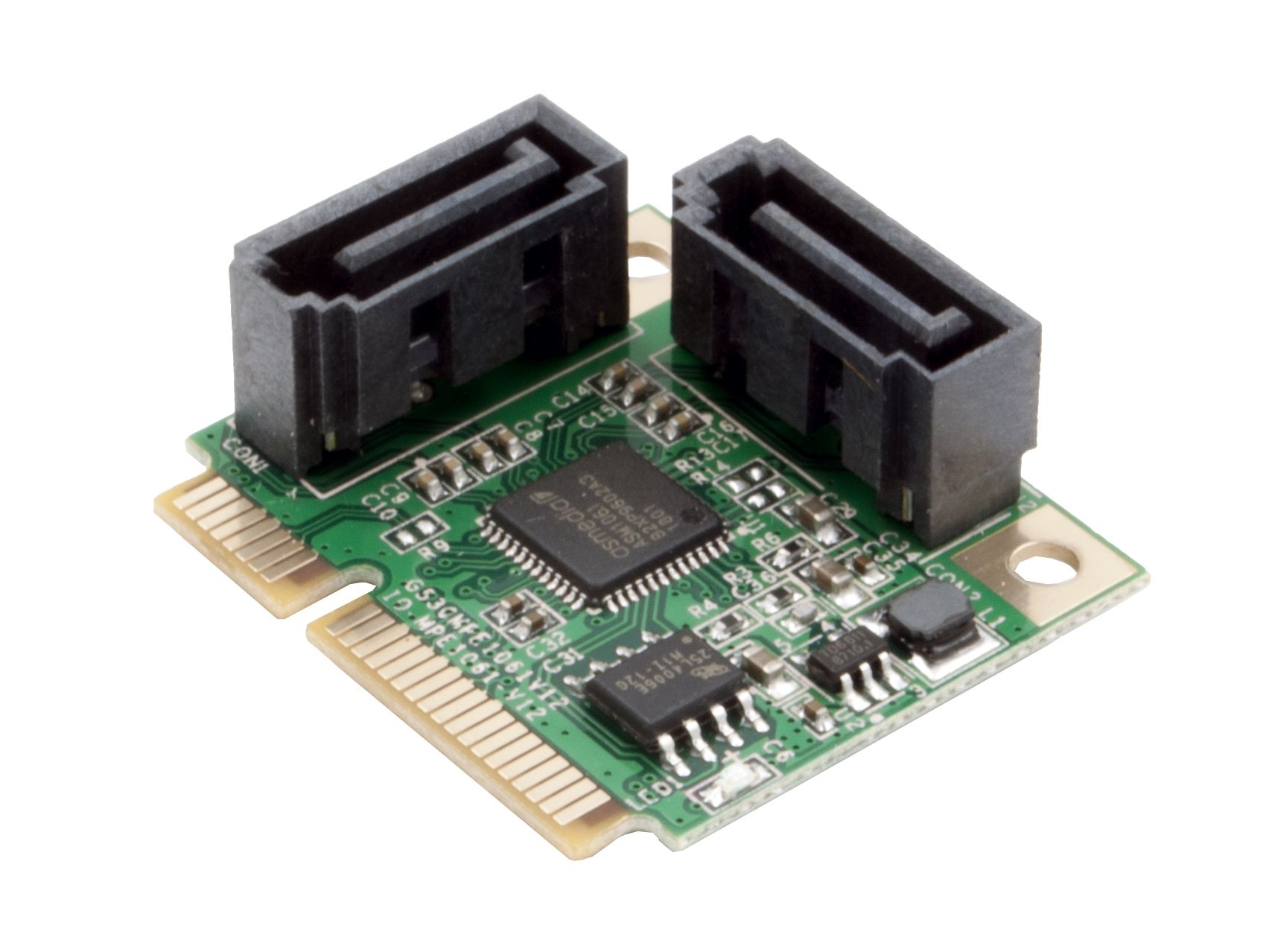

The EX-48080-2 is a powerful SATA 3 controller based on the new mini PCI-Express technolo-gy. It does not support RAID function. The EX-48080-2 has two SATA 3 connectors for SATA 2 / 3 and SSD hard disks. It offers the right solution to connect SATA 3 devices via a mini PCI-Express slot.
- Support 1-lane 5Gbps PCI-Express Gen2 Bus
- Don’t supports RAID function
- Compatible to SATA / SATA 2/3 and SSD drives
- Co-resides with mainboard SATA devices
- MSU Supports HyperDuo Modes: Safe and Capacity
- Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
- Supports Gen1m and Gen2m SATA PHY
- Support hard drives up to 6TB
- Chipset: ASM1061

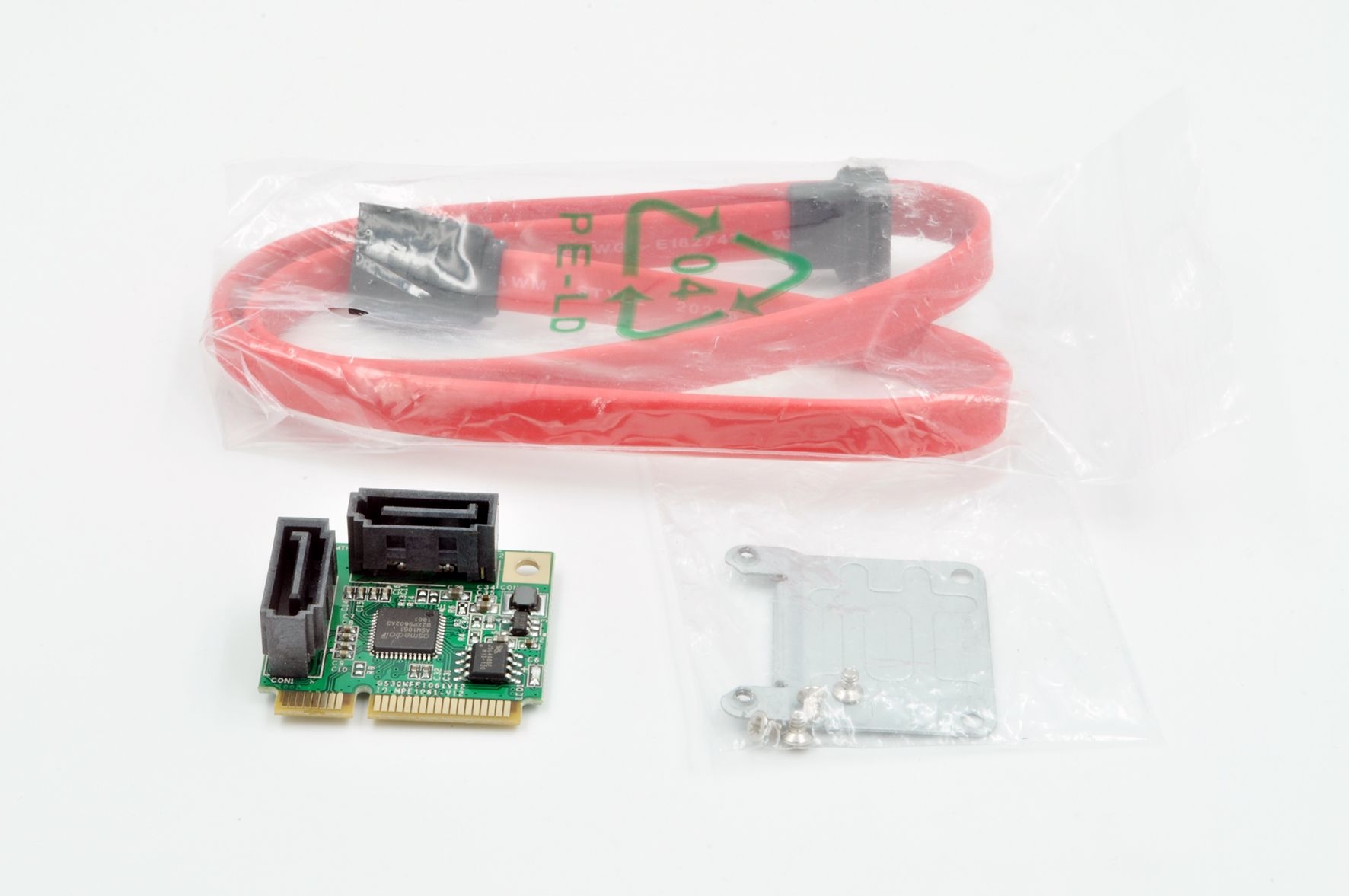

Packaging contents:
EX-48080-2, 1x SATA cable, 1x Holder Driver CD, Manual
| Bus system: | mini PCIe |
|---|---|
| Connections: | SATA |
| Interface: | SATA3 |
| Number of ports: | 2 |
