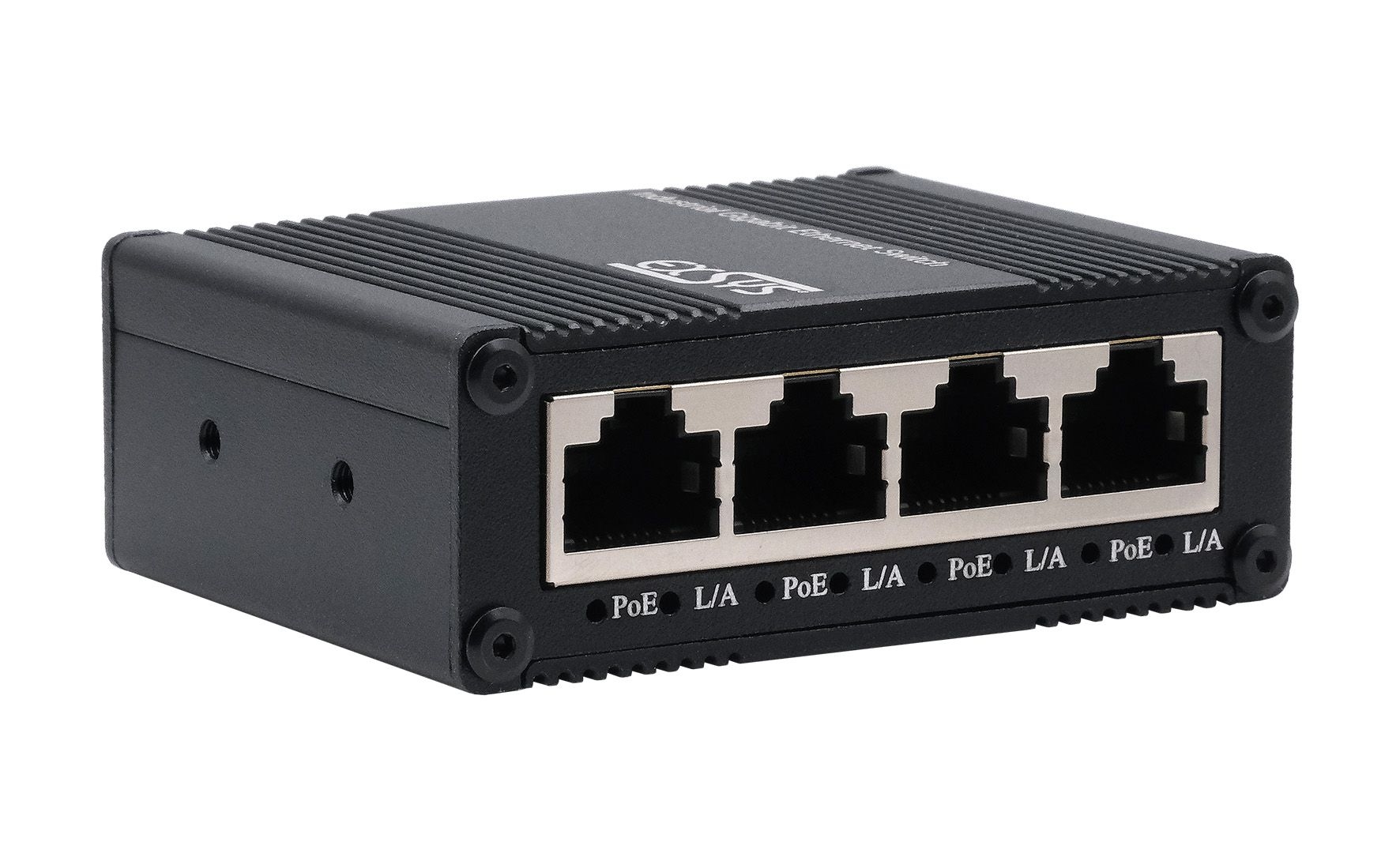

Micro 5-Port Industrial Gigabit PoE Pass-Through Switch, unmanaged
The EX-62021PoE-P is a tiny, industrial-grade 5-port Gigabit Ethernet switch with PoE pass-through. It delivers full Gigabit performance on all ports and reliably supplies up to four connected end devices with Power over Ethernet (PoE). Power is supplied either via PoE++ (IEEE 802.3bt) or via the integrated DC socket (48VDC). The EX-6985 power supply is available as an optional accessory for this purpose. As a non-PoE switch, the device can alternatively be operated via the USB-C socket (5VDC). Each downlink port provides up to 30W of PoE power – ideal for IP cameras, access points or VoIP telephones.

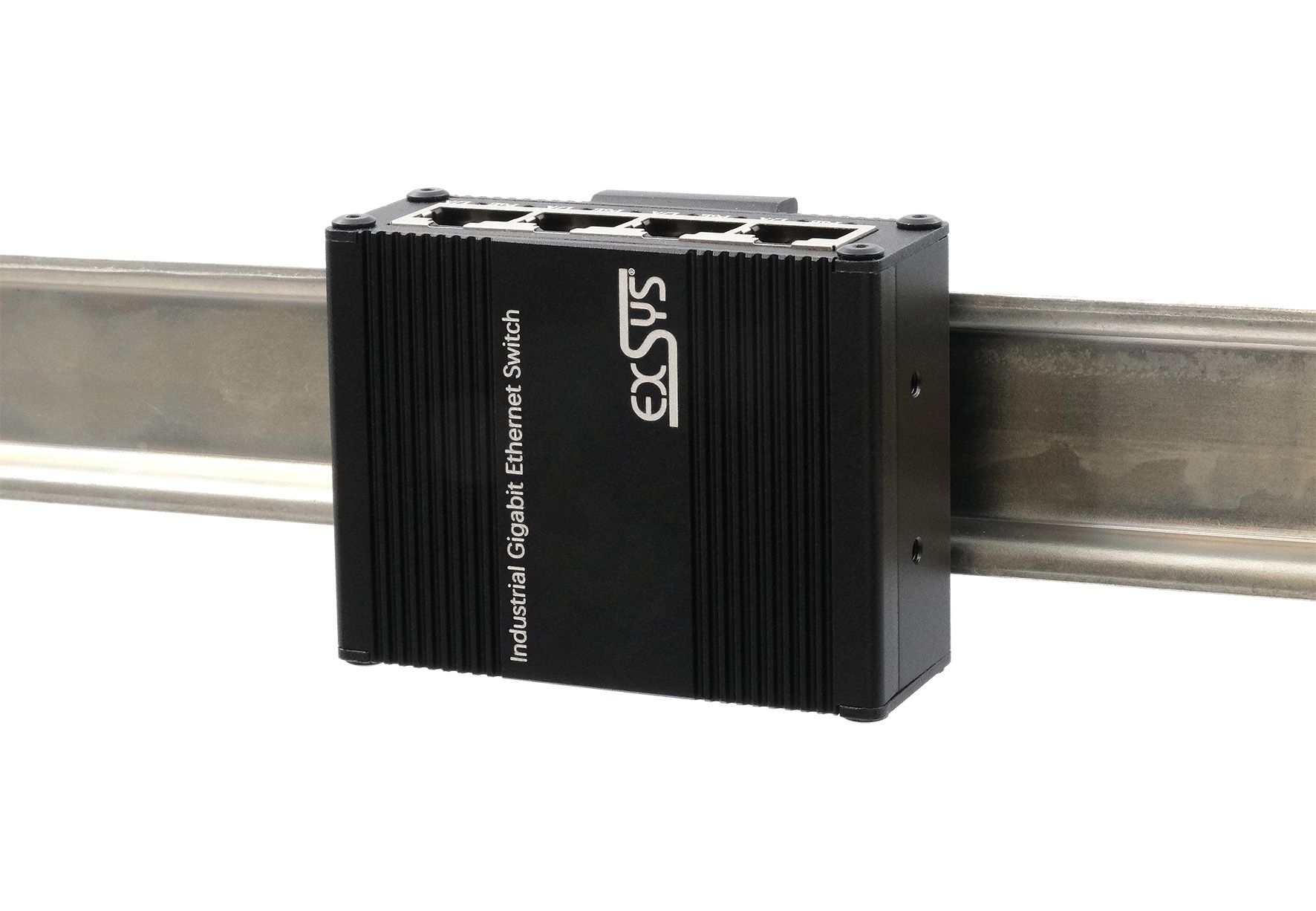

Thanks to its robust metal housing with IP40 protection class, DIN-Rail mounting and an extended operating temperature range from -40°C to +80°C, the switch is optimally designed for continuous use in demanding industrial and infrastructure environments.
- 5-port Ethernet switch 10/100/1000Base-T
- PoE power standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++)
- PoE output power: up to 30W per port (max. 120W total power)
- PoE mode/alternative B

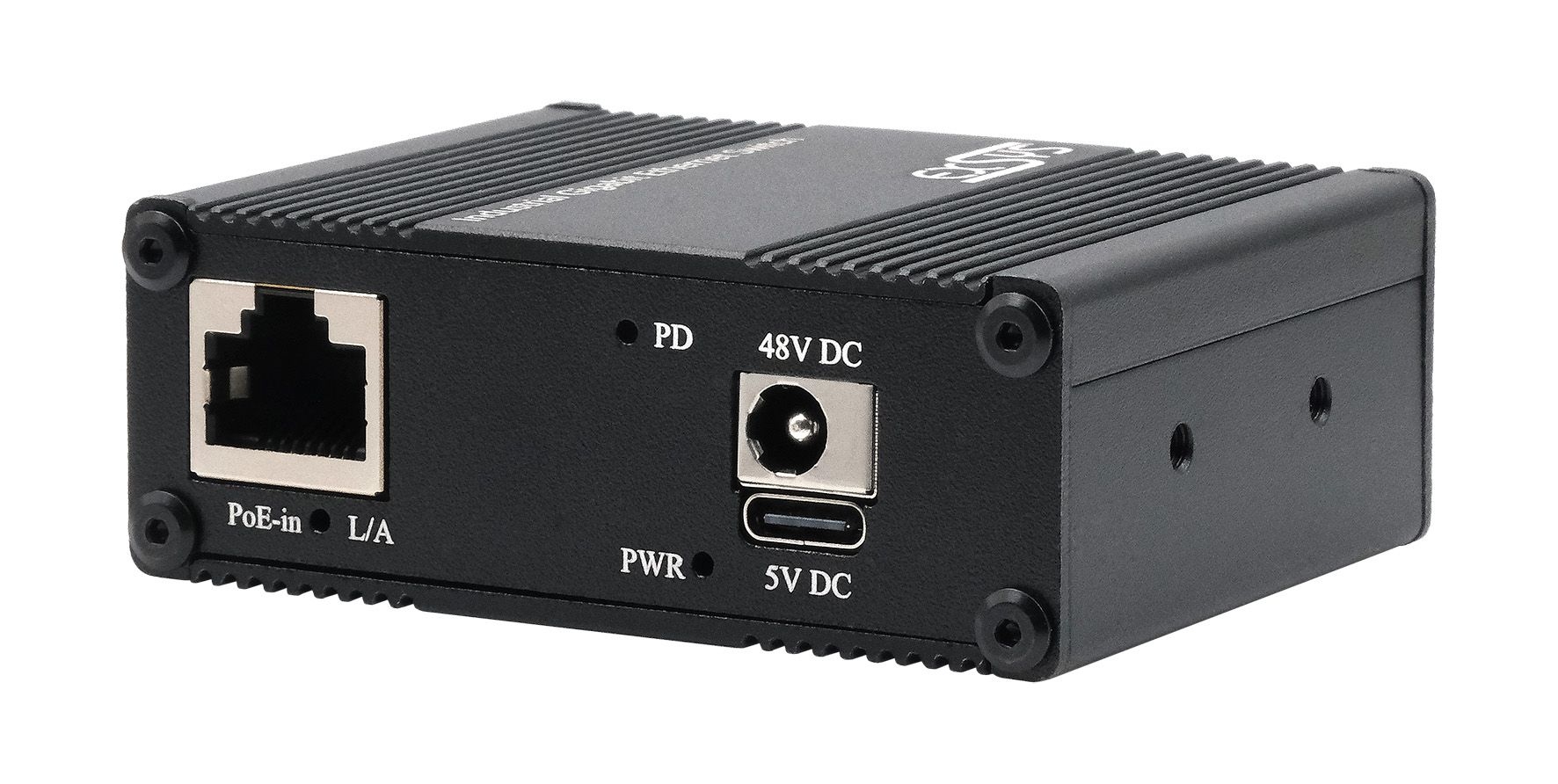

- Flexible power supply via PoE++ or DC socket 48VDC
- Alternative power supply via USB-C port 5 VDC (no PoE operation)
- Automatic detection of PoE end devices (PD detection)
- Auto-MDI/MDIX for easy cabling without crossover cables
- Auto-negotiation, 10/100 Mbps half/full duplex, 1000 Mbps full duplex
- Jumbo frame support up to 9 kBytes
- Robust, very compact metal housing, IP40

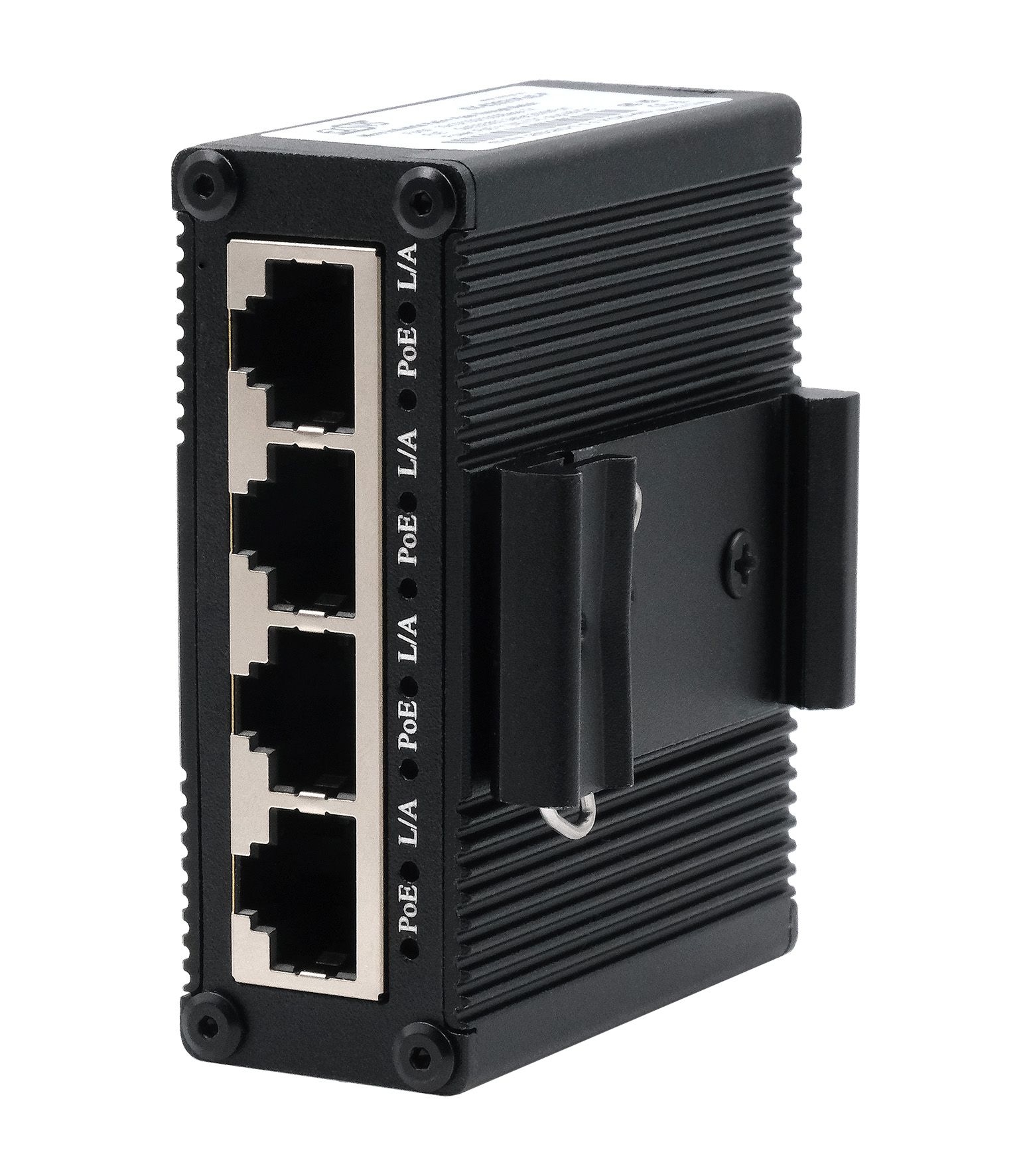

- Includes DIN-Rail kit
- Extended operating temperature range: -40°C to +80°C
Packaging contents:
EX-62021PoE-P, DIN-Rail Kit (pre-assembled), USB-A zu USB-C cable, Manual
| Connections: | RJ45 |
|---|---|
| Data transmission: | 1000Base-T |
| Design: | Compact |
| Interface: | Ethernet |
| Mounting Type: | DIN-Rail |
| Number of ports: | 5 |
| PoE Budget: | 120W |
| Power connection: | PoE / DC Jack 48V |
| Power over Ethernet: | Yes, Pass-Through |
| Temperature range: | -40°C to +80°C |
