M.2 NGFF 2S Serial RS-422/485 card with 2.5KV Optical Isolation (Exar Chipset)
Product number:
EX-48210I
GTIN/EAN:
4718359482144
M.2 NGFF 2S Serial RS-422/485 card with 2.5KV Optical Isolation (Exar Chipset)
The EX-48210I RS-422/485 M.2 card is an internal expansion card with 2.5KV optical isolation for compact PCs, mainboards, notebooks and industrial use. Instead of the mSATA interface, the M.2 bus was developed and used under the Next Generation Form Factor (NGFF) designation. The EX-48210I supports two serial RS-422 and 485 high performance UART 16C550 outputs. It is designed to expand two additional serial ports via the M.2 (NGFF) bus. Included with the EX-48210I are two ribbon cables with 9 pin connectors for attachment to the device's chassis.
- Interface: RS-422 and 485
- M.2 NGFF (Key A) connector
- PCI Express 2.0 Gen 1 compliant
- 2.5KV Optical Isolation
- ±15kV IEC1000-4-2 ESD protection for RS232 I/O's
- FIFO Buffer: 16C550 with 256Byte
- I/O addresses and Interrupt: Set from the operating system
- Data Bits: 5, 6, 7 and 8 / Stop Bits: 1, 1.5, 2
- Parity: none, even, odd, space, mark
- Flow Control: RTS/CTS, XON/XOFF
- Signal:
- RS-422 - 4 Draht: (TXD+/-, RXD+/-) (Fullduplex)
- RS-485 - 4 Draht: (TXD+/-, RXD+/-) (Fullduplex)
- RS-485 - 2 Draht: (Data-, Data+) (Halfduplex)
- Chipset: Exar 17V352
Packaging contents:

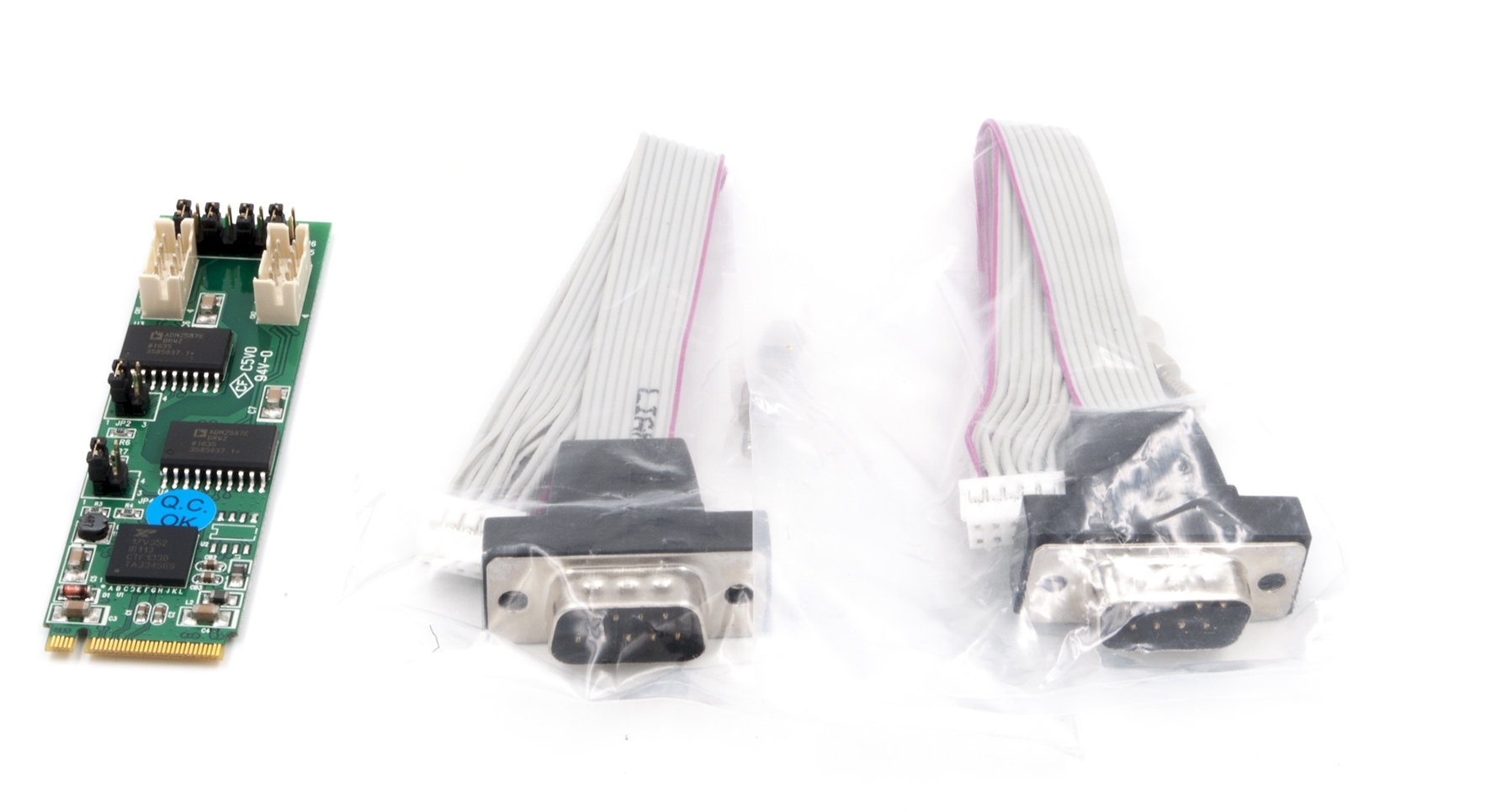

EX-48210I, 2x Slot cable, Driver CD, Manual
| Bus system: | M.2 NGFF |
|---|---|
| Connections: | 9-Pin Plug |
| Interface: | RS-422/485 |
| Isolation: | 2.5KV |
| Number of ports: | 2 |
