M.2 NGFF 2S Serial RS-232 card with 2.5KV Optical Isolation (Exar Chipset)
Product number:
EX-48200I
GTIN/EAN:
4718359482045
M.2 NGFF 2S Serial RS-232 card with 2.5KV Optical Isolation (Exar Chipset)
The EX-48200I RS-232 M.2 card is an internal expansion card with 2.5KV optical isolation for compact PC, mainboards, notebooks and industrial use. Instead of mSATA interface, M.2 bus was developed and used under the name of Next Generation Form Factor (NGFF). The EX-48200I supports two serial RS-232 high performance UART 16C550 outputs. It is designed to expand two additional serial ports via the M.2 (NGFF) bus. Included with the EX-48200I are two ribbon cables with 9 pin connectors for mounting to the device's chassis.
- Interface: RS-232 V.24
- M.2 NGFF (Key A) connector
- PCI Express 2.0 Gen 1 compliant
- 2.5KV Optical Isolation
- ±15kV IEC1000-4-2 ESD protection for RS232 I/O's
- FIFO Buffer: 16C550 with 256Byte
- I/O addresses and Interrupt: Set from the operating system
- Data Bits: 5, 6, 7 and 8 / Stop Bits: 1, 1.5, 2
- Parity: none, even, odd, space, mark
- Flow Control: RTS/CTS, XON/XOFF
- Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Chipset: Exar 17V352
Packaging contents:

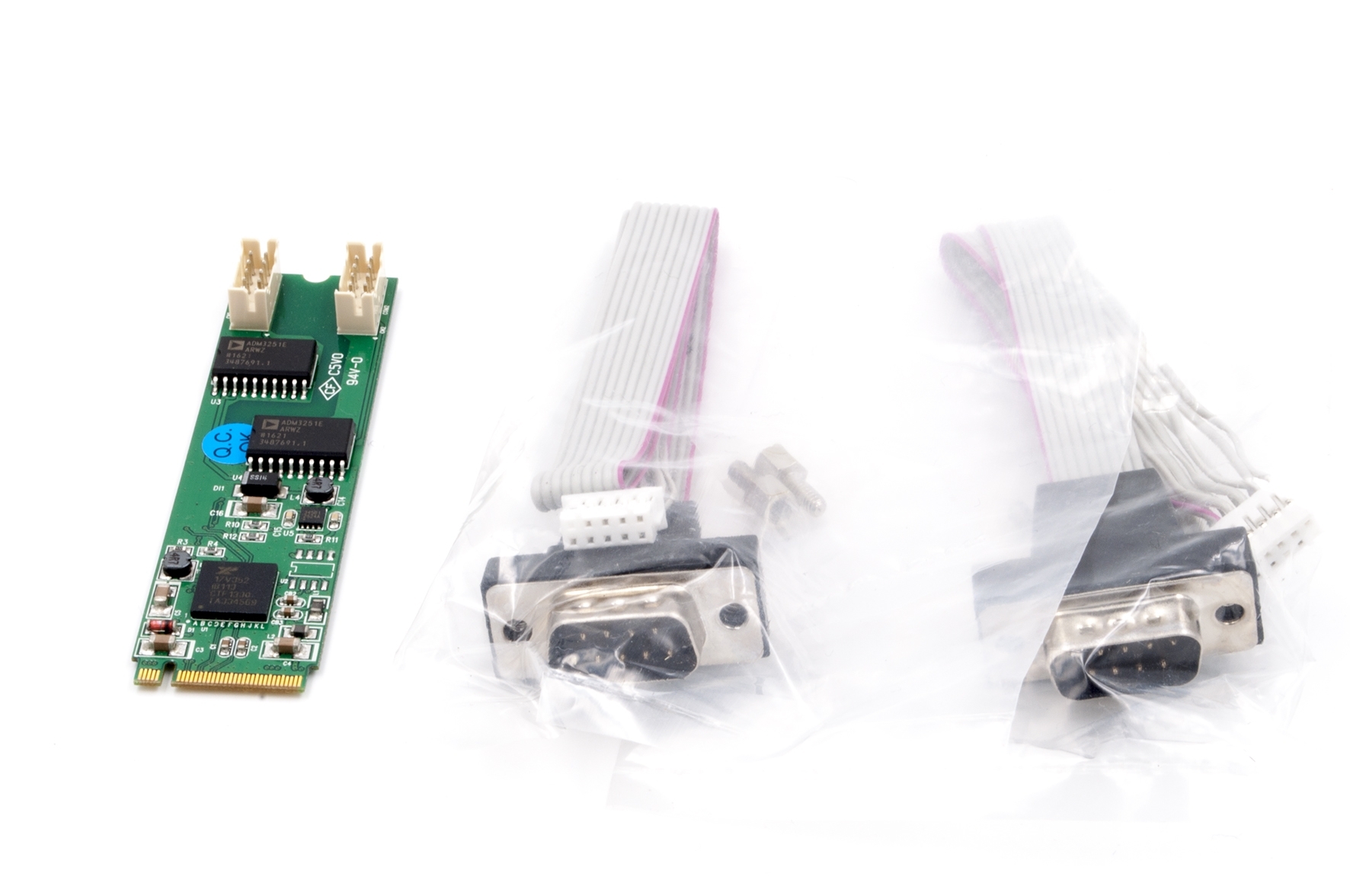

EX-48200I, 2x Slot cable, Driver CD, Manual
| Bus system: | M.2 NGFF |
|---|---|
| Connections: | 9-Pin Plug |
| Interface: | RS-232 |
| Isolation: | 2.5KV |
| Number of ports: | 2 |
