M.2 NGFF 2 Port USB 3.2 Gen 2x1 card (Asmedia Chipset)
Product number:
EX-48274-2
GTIN/EAN:
4718359482762
M.2 NGFF 2 Port USB 3.2 Gen 2x1 card (Asmedia Chipset)

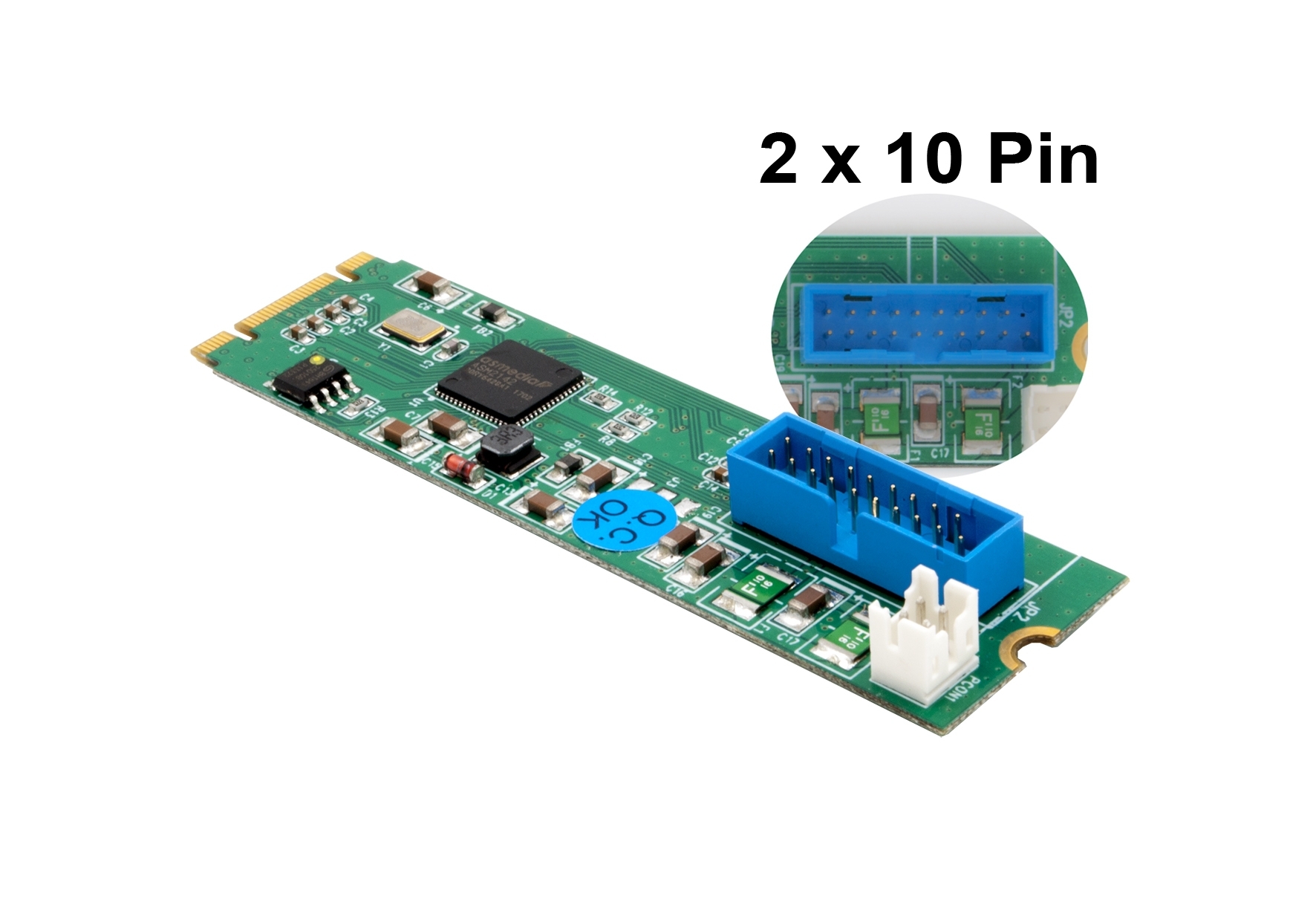

The EX-48274-2 USB 3.2 Gen 2x1 M.2 card provides two SuperSpeed+ USB 3.2 Gen 2x1 ports with two internal 10 pin jacks. It is designed to connect two additional USB 1.1, 2.0, 3.0 and 3.2 end devices to compact PC, mainboards and notebooks. It supports USB 1.1 low-speed (1.5Mbps), full-speed (12Mpbs), USB 2.0 high-speed (480Mbps), USB 3.2 Gen 1 super-speed (5Gbps) and USB 3.2 Gen 2x1 super-speed+ (10Gbps). The EX-48274-2 is the perfect technology to connect external storage, digital cameras, webcam, scanner and more to M.2 bus.
- Support USB 3.2 Gen 2x1 (SuperSpeed USB 10Gbps)
- Support eXtensible Host Controller Interface (xHCI) Specification 1.1
- Interface PCIe 2.0 Gen 2 compliant
- M.2 M key
- Formfactor: M2 2260
- Electric power each port: maximum 15 Watts (5V / 3A)
- Hot Swap feature allow you to connect/disconnect devices
- Chipset: Asmedia ASM2142
Packaging contents:

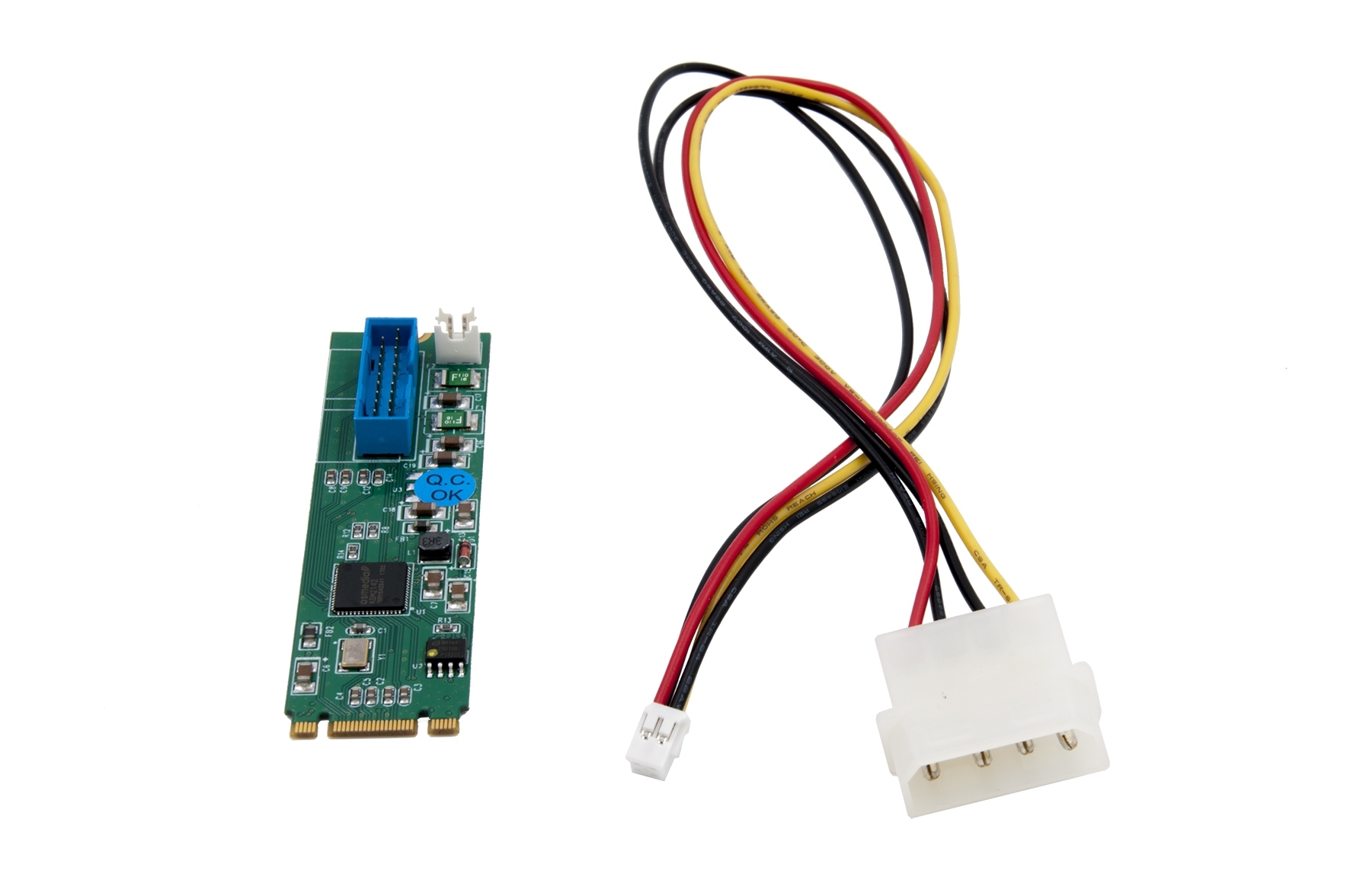

EX-48274-2, Power cable Molex, Driver CD, Manual
| Bus system: | M.2 NGFF |
|---|---|
| Connections: | Internal 10-pin |
| Interface: | USB 3.2 Gen 2x1 |
| M.2 NGFF modules: | 2260 |
| Number of ports: | 2 |
