EX-44016-2
16S PCIe Serial RS-232 Board with Octopus cable (SystemBase)
The EX-44016-2 PCI-Express I/O-adapter provides 16 high performance 16C1050-type UART compatible RS-232 serial ports. It is designed for PC, thin client or server to provide instant COM port expansion via the PCIe Bus. The card is fully PCI-Express Plug-and-Play compatible and there are no IRQ and I/O address configuration problems. It provides +5V and +12V via the pin 9 from the male connector for a POS System (Power over System).
Interface: RS-232 V.24 with FIFO Buffer 16C1050 with 256Byte
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
I/O addresses and Interrupt: Setting from the System BIOS with IRQ Sharing
PCIe Interface fully compliant with 1.0a up to 3.0 specification
Data Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Supports Flow Control RTS/CTS and XON/XOFF
Supports +5V or +12V to the pin 9 from the serial male connector
Chipset: 2x SystemBase SB16C1054PCI
Packaging contents:EX-44016-2, 2x Octopus cable, 32x nuts, Driver CD, Manual
EX-44316-2
16S PCIe Serial RS-232 Board with Octopus cable (SystemBase)
The EX-44316-2 PCI-Express I/O-adapter provides 16 high performance 16C1050-type UART compatible RS-232 serial ports. It is designed for PC, thin client or server to provide instant COM port expansion via the PCIe Bus. The card is fully PCI-Express Plug-and-Play compatible and there are no IRQ and I/O address configuration problems. It provides +5V and +12V via the pin 9 from the male connector for a POS System (Power over System). The EX-44316-2 is supplied with two Octopus cables and a Low Profile bracket.
Interface: RS-232 V.24 with FIFO Buffer 16C1050 with 256Byte
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
I/O addresses and Interrupt: Setting from the System BIOS with IRQ Sharing
PCIe Interface fully compliant with 1.0a up to 3.0 specification
Data Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Support Flow Control RTS/CTS and XON/XOFF
Support +5V or +12V to the pin 9 from the serial male connector
Chipset: 2x SystemBase SB16C1054PCI
Packaging contents:EX-44316-2, 2x Octopus cable, 32x nuts, Low Profile bracket, Driver CD, Manual
EX-44041-2
1S PCIe Serial RS-232 Board (MosChip)
The EX-44041-2 PCI-Express I/O-adapter provides one high performance 16C550-type UART compatible RS-232 serial port. It is designed for PC, thin client or server to provide instant COM port expansion via the PCI-Express Bus (PCI-e). The card is fully PCI-Express Plug-and-Play compatible and there are no IRQ and I/O address configuration problems. It provides +5V and +12V via the pin 9 from the male connector for a POS System (Power over System).
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
±15KV IEC1000-4-2 ESD Protection for RS232 I/O’s
I/O addresses and Interrupt setting from the operating system, IRQ sharing
Data Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
PCI Express Interface: Fully compliant with 1.0a Specification
WHQL certified
Chipset: MosChip MCS9901CV
Packaging contents:EX-44041-2, Driver CD, Manual
EX-42372
2S PCI Serial RS-422/485 Board incl. LowProfile bracket
The EX-42372 Universal PCI I/O adapter provides two high performance 16C950-type UART compatible RS-422/485 serial ports. It is designed for PC, thin client or server to provide instant COM port expansion via the PCI Bus. The card is fully PCI Plug-and-Play compatible and no IRQ and I/O address conflicts. Support RS-485 Auto Transceiver turn around by unique feature ATTATM hardware. With the EX-42372 also comes a LowProfile bracket, that can be used for small computer chassis with 8cm height like slim line PC.
Interface: RS-422/485 with FIFO Buffer 16C950 and 128Byte
I/O addresses and Interrupt: Setting from the System BIOS with IRQ Sharing
Data Bits: 5, 6, 7, 8, 9 / Stop Bits: 1, 1.5, 2
Parity: None, even, odd, space, mark
Signal: Three modes are selectable:
4-Wire RS-422 (TXD+/-, RxD+/-) (Fullduplex)
4-Wire RS-485 (TxD+/-, RxD+/-) (Fullduplex)
2-Wire RS-485 (Data+/-, Data+/-) (Halfduplex)
Support ATTA Auto Transmitter
Terminator TS-422/485 120 Ohm can be enable– and disable
Chip-Set: Oxford OXu16PCI952
EX-42372IS
2S PCI Serial RS-422/485 Board Surge Protection & Isolation
The EX-42372IS Universal PCI I/O adapter provides two high performance 16C950-type UART compatible RS-422/485 serial ports with Surge Protection and Isolation. It is designed for PC, thin client or server to provide instant COM port expansion via the PCI Bus. The card is fully PCI Plug-and-Play compatible and no IRQ and I/O address conflict problems. Support RS-485 Auto Transceiver turn around by unique feature ATTATM hardware. With the EX-42372IS also comes a LowProfile bracket, that can be used for small computer chassis with 8cm height like slim line PC.
Interface: RS-422/485 with FIFO Buffer 16C950 and 128Byte
ESD Surge Protection 15KV to all lines / Isolation 2.5KV
I/O addresses: Setting from the operating system / Interrupt: Setting from theSystem BIOS with Interrupt Sharing
Data Bits: 5, 6, 7, 8, 9 / Stop Bits: 1, 1.5, 2
Parity: None, even, odd, space, mark
Signal: Three modes are selectable:
4-Wire RS-422 (TXD+/-, RxD+/-) (Fullduplex)
4-Wire RS-485 (TxD+/-, RxD+/-) (Fullduplex)
2-Wire RS-485 (Data+/-, Data+/-) (Halfduplex)
Support ATTA Auto Transmitter
Terminator RS-422/485 120 Ohm can be enable– and disable
Chip-Set: Oxford OXu16PCI952
EX-44352IS-4K
2S PCIe Serial RS-232 Board Surge Protection & 4KV Isolation
The EX-44352IS-4K PCI-Express I/O-adapter provides two high performance 16C550-type UART compatible RS-232 serial ports with 15KV ESD Surge Protection und 4KV Isola-tion. It is designed for PC, thin client or server to provide instant COM port expansion via the PCI-Express Bus (PCI-e). The card is fully PCI-Express Plug-and-Play compatible and there are no IRQ and I/O address configuration problems.
Interface: 2x RS-232 V.24
FIFO Buffer: 16C650 with 16Byte
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
15KV ESD Surge Protection and 4KV Isolation
I/O addresses and Interrupt: Set by System BIOS with IRQ Sharing
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Support PCIe slot version 1.0 to 3.0
Included for each port is a 50cm Network cable and one adapter with RJ45 to 9 Pin
Chipset: MosChip MCS9901CV
Packaging contents:EX-44352IS-4K, 2x Network cable 50 cm, 2x Adapter RJ-45 to 9 pin male connector, Driver CD, Manual
EX-45362
2S PCIe Serial RS-232/422/485 Board incl. LP bracket and Octopus cable
The EX-45362 PCIe I/O card provides two serial RS-232, 422 and 485 high performance UART 16C550 outputs. Each port can be independently configured as RS-232, 422 or 485. It is designed to add two more serial combo ports for PC, workstation or server via PCIe bus. The card is fully PCIe plug-and-play compatible and has no conflicts with IRQ and I/O addresses. It supports the ATTA Auto RS-485 transmitter features. In addition, +5V or +12V on pin 9 of the RS-232 serial connector is configurable for a POS system (Power over System). A low profile bracket for narrow PC cases is supplied with the card.
Interface: 2x RS-232 V.24, RS-422/485 - independent mode selection
±15kV IEC1000-4-2 ESD Schutz for RS232 I/O's
FIFO Buffer: 16C550 with 128Byte
Data Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal:
RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 - 4 wire (TXD+/-, RXD+/-) (Fullduplex)
RS-485 - 4 wire (TXD+/-, RXD+/-) (Fullduplex)
RS-485 - 2 wire (Data+/-, Data+/-) (Halfduplex)
Support ATTA Auto Transmitter
Termination RS-422/485: 120 ohm, can be enabled or disabled
Support PCIe slot version 1.0 to 3.0
Packaging contents:EX-45362, Octopus cable, Low Profile bracket, Driver CD, Manual
EX-45362IS
2S PCIe Serial RS-232/422/485 Board Surge Protection & Isolation
The EX-45362IS PCIe I/O card provides two serial RS-232, 422 and 485 high performance UART 16C550 outputs with surge protection and isolation. Each port can be independently configured as RS-232, 422 or 485. It is designed to add two more serial combo ports for PC, workstation or server via PCIe bus. The card is fully PCIe plug-and-play compatible and has no conflicts with IRQ and I/O addresses. It supports the ATTA Auto RS-485 transmitter features. In addition, +5V or +12V on pin 9 of the RS-232 serial connector is configurable for a POS system (Power over System). A low profile bracket for narrow PC cases is supplied with the card.
Interface: 2x RS-232 V.24, RS-422/485: independent mode selection
15KV ESD Surge Protection and 2.5KV Isolation
±15kV IEC1000-4-2 ESD Schutz for RS232 I/O's
FIFO Buffer: 16C550 with 128Byte
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal RS-232:- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Signal RS-422/485:- RS-422: 4 wire (TXD+/-, RXD+/-) (Fullduplex)- RS-485: 4 wire (TXD+/-, RXD+/-) (Fullduplex)- RS-485: 2 wire (Data+/-, Data+/-) (Halfduplex)
Support ATTA Auto Transmitter
Termination RS-422/485: 120 ohm, can be enabled or disabled
Support PCIe slot version 1.0 to 3.0
Packaging contents:EX-45362IS, Octopus cable, Low Profile bracket, Driver CD, Manual
EX-40032
2S Serial RS-232 ISA 16-Bit Board
The EX-40032 ISA I/O card provides two serial RS-232 high performance UART 16C550 outputs. It is designed to extend two additional serial outputs for PC, workstation or server via the ISA bus. +5V and +12V on one pin of the 9 pin connector configurable for P.O.S systems (Power over System).
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
I/O addresses: 3F8, 2F8, 3E8, 2E8, 250, 258, 260
Interrupt: 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, even, odd, space, mark
Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Packaging contents:EX-40032, Manual
EX-42032
2S Serial RS-232/422/485 PCI card, POS configurable (FTDI)
The EX-42032 PCI I/O card provides two serial RS-232, 422 and 485 high perfor-mance UART 16C550 outputs. It is designed to expand two additional serial ports for PC, small workstation or server via PCI or PCI-X bus. +5V and +12V are config-urable on pin 9 of the serial connectors as POS system (Power over System). The card is fully plug-and-play compatible. It supports the ATTA Auto RS-485 trans-mitter features. Each port can be individually set to RS-232, 422 or 485.
Interface: RS-232 V.24 / RS-422 / RS-485
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
FIFO Buffer 16C550 with 16Byte
I/O addresses and interrupt are set from the operating system
Data bits: 7 and 8 / Stop bits: 1, 1.5, 2
Parity: none, even, odd, space and mark
Support ATTA Auto Transmitter
Termination RS-422/485 - 120 Ohm can be enabled– and disabled
Signal:
RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 - 4 wire (TxD+/-, RxD+/-) Fullduplex
RS-485 - 4 wire (TxD+/-, RxD+/-) Fullduplex
RS-485 - 2 wire (Data+/-, Data+/-) Halfduplex
Chipset: FTDI
Packaging contents:EX-42032, Driver CD, Manual
EX-42032IS
2S Serial RS-232/422/485 PCI card, Surge Protection & Isolation (FTDI)
The EX-42032IS PCI I/O card provides two serial RS-232, 422 or 485 high performance UART 16C550 outputs with 15KV ESD Surge Protection and 2.5KV Isolation. It is designed to expand two additional serial ports for PC, small workstation or server via PCI- oder PCI-X Bus. The card is fully plug-and-play compatible. It supports the ATTA Auto RS-485 transmitter features. Each port can be individually set to RS-232, 422 or 485. POS (Power over System) if not selectable.
Interface: RS-232 V.24 / RS-422 / RS-485
15KV ESD Surge Protection and 2.5KV Isolation
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
FIFO Buffer 16C550 with 16Byte
I/O addresses and interrupt are set from the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space and mark
Support ATTA Auto Transmitter
Termination RS-422/485 - 120 Ohm can be enabled- and disabled
Signal:- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND- RS-422: 4 wire (TxD+/-, RxD+/-) Fullduplex- RS-485: 4 wire (TxD+/-, RxD+/-) Fullduplex- RS-485: 2 wire (Data+/-, Data+/-) Halfduplex
Chipset: FTDI
Packaging contents:EX-42032IS, Driver CD, Manual
EX-45032IS
2S Serial RS-232/422/485 PCIe card Surge Protection & Isolation (FTDI Chipset)
The EX-45032IS PCIe I/O card provides two serial RS-232, 422 and 485 high performance UART 16C550 outputs with 15KV ESD Surge Protection and 2.5KV Isolation. It is designed to expand two additional serial ports for PC, small workstation or server via PCIe bus. The card is fully plug-and-play compatible. It supports the ATTA Auto RS-485 transmitter features. Each port can be individually set to RS-232, 422 or 485. POS (Power over System) is not selectable.
Interface: RS-232 V.24 / RS-422 / RS-485
15KV ESD Surge Protection and 2.5KV Isolation
±15kV IEC1000-4-2 ESD prodtecion for RS232 I/O's
FIFO Buffer 16C550 with 16Byte
I/O addresses and interrupt are set by the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space and mark
Support ATTA Auto Transmitter
Termination RS-422/485: 120 Ohm can be enabled- and disabled
Signal:- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND- RS-422: 4 wire (TxD+/-, RxD+/-) Fullduplex- RS-485: 4 wire (TxD+/-, RxD+/-) Fullduplex- RS-485: 2 wire (Data+/-, Data+/-) Halfduplex
Chipset: FTDI
Packaging contents:EX-45032IS, Driver CD, Manual
EX-45032
2S Serial RS-232/422/485 PCIe card, POS configurable, (FTDI Chipset)
The EX-45032 PCI I/O card provides two serial RS-232, 422 and 485 high performance UART 16C550 outputs. It is designed to expand two additional serial ports for PC, small workstation or server via PCI or PCI-X bus. +5V and +12V are configurable on pin 9 of the serial connectors as POS system (Power over System). The card is fully plug-and-play compatible. It supports the ATTA Auto RS-485 trans-mitter features. Each port can be individually set to RS-232, 422 or 485.
Interface: RS-232 V.24 / RS-422 / RS-485
±15kV IEC1000-4-2 ESD prodtecion for RS232 I/O's
FIFO Buffer 16C550 with 16Byte
I/O addresses and interrupt are set from the operating system
Data bits: 7 and 8 / Stop bits: 1, 1.5, 2
Parity: none, even, odd, space and mark
Supports ATTA Auto Transmitter
Termination RS-422/485 - 120 Ohm can be enabled- and disabled
Signal:
RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 - 4 wire (TxD+/-, RxD+/-) Fullduplex
RS-485 - 4 wire (TxD+/-, RxD+/-) Fullduplex
RS-485 - 2 wire (Data+/-, Data+/-) Halfduplex
Chipset: FTDI
Packaging contents:EX-45032, Driver CD, Manual

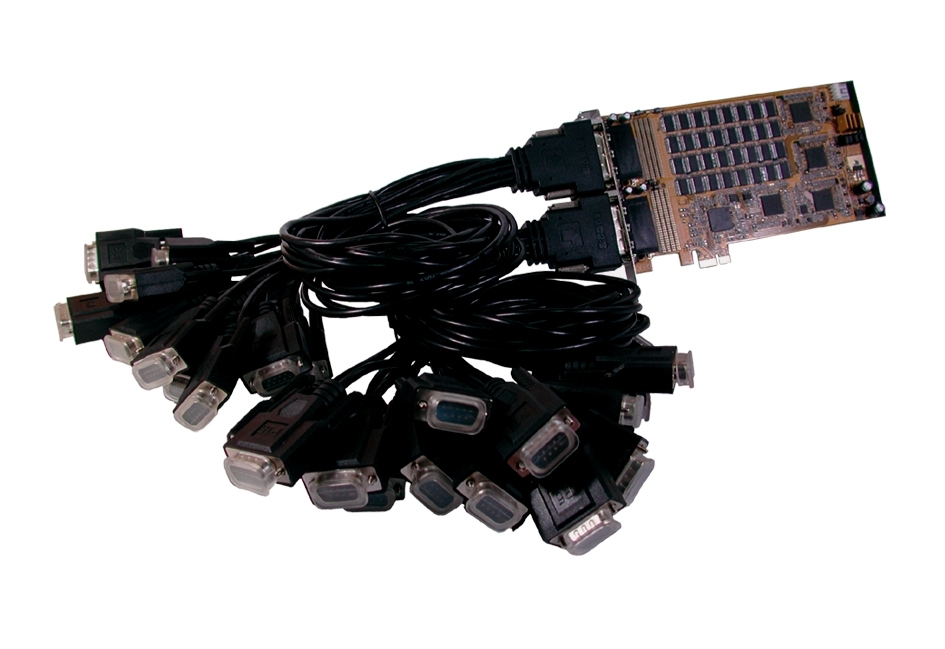

EX-44032
32S PCIe Serial RS-232 Board with Octopus cable (Oxford Chip-Set)
The EX-44032 PCI-Express I/O adapter provides 32 high performance 16C950-type UART compatible RS-232 serial ports. It is designed for PC, thin client or server to provide instant COM port expansion via the PCI Express Bus (PCIe). The card is fully PCI Express Plug-and-Play compatible and there are no IRQ and I/O address configuration problems. The EX-44032 is supplied with four octopus cable. The EX-44032 don’t need external Expansion-Module. All ports will supported from the Octopus cable.
Interface: RS-232 V.24
FIFO Buffer: 16C950 with 128Byte
±15KV IEC1000-4-2 ESD Protection for RS232 I/O’s
I/O addresses: Set from the operating system
Interrupt: Setting from the System BIOS with Interrupt Sharing
Data Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
PCI Express Interface: Fully compliant with 1.0a Specification
WHQL certified
Chip-Set: 4 x Oxford OXPCIe958
EX-44064
4S PCIe Serial RS-232 Board (SystemBase)
The EX-44064 PCI-Express I/O-adapter provides four high performance 16C1050-type UART compatible RS-232 serial ports. It is designed for PC, thin client or server to provide instant COM port expansion via the PCI-Express Bus (PCI-e). The card is fully PCI-Express Plug-and-Play compatible and there are no IRQ and I/O address configuration problems. It provides +5V and +12V via the pin 9 from the male connector for a POS System (Power over System).
Interface: RS-232 V.24 with FIFO Buffer 16C1050 with 258Byte
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
I/O addresses and Interrupt: Setting from the System BIOS with IRQ Sharing
PCIe Interface fully compliant with 1.0a up to 3.0 specification
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Support Flow Control RTS/CTS and XON/XOFF
Support +5V or +12V to the pin 9 from the serial male connector
Chipset: SystemBase SB16C1054PCI
Packaging contents:EX-44064, Slot bracket with 2x 9 pin male connector, Driver CD, Manual
EX-44384
4S PCIe Serial RS-232 Board incl. LP bracket (SystemBase Chipset)
The EX-44384 PCI-Express I/O-adapter provides four high performance 16C1050-type UART compatible RS-232 serial ports. It is designed for PC, thin client or server to provide instant COM port expansion via the PCI-Express Bus (PCI-e). The card is fully PCI-Express Plug-and-Play compatible and there are no IRQ and I/O address configuration problems. It provides +5V and +12V via the pin 9 from the male connector for a POS System (Power over System). With the EX-44384 we include a Low Profile bracket for small computer case.
Interface: RS-232 V.24 / FIFO Buffer: 16C1050 with 258Byte
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
I/O addresses and Interrupt: Setting from the System BIOS with IRQ Sharing
PCIe Interface fully compliant with 1.0a up to 3.0 specification
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Supports Flow Control RTS/CTS and XON/XOFF
Supports +5V or +12V to the pin 9 of the serial male connector
Chipset: SystemBase SB16C1054PCI
Packaging contents:EX-44384, Octopus cable, Driver CD, Low Profile bracket, Manual
EX-41084
4S Serial RS-232 PCI card (FTDI Chipset)
The EX-41084 PCI I/O card provides four serial RS-232 high performance UART 16C550 outputs. It is designed to expand four additional serial ports for PC, workstation or server via PCI or PCI-X bus. +5V and +12V are configurable on pin 1 and 9 of the serial connector as POS system (Power over System). The card is fully plug-and-play compatible. The Octopus cable is included. The fixing screws of the four 9 pin connectors can be replaced with the supplied nuts.
Interface: RS-232 V.24
±15kV IEC1000-4-2 ESD Schutz for RS232 I/O's
FIFO Buffer 16C550 with 16Byte
I/O addresses and interrupt are set from the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5 and 2
Parity: none, even, odd, space and mark
Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Packaging contents:EX-41084, Octopus cable, 8x nuts, Driver CD, Manual
EX-44354
4S Serial RS-232 PCIe card, POS configurable (FTDI Chipset)
The EX-44354 PCIe I/O card provides four serial RS-232 high-performance UART 16C550 outputs. It is designed to expand four additional serial ports for PCs, small workstations or servers via the PCIe bus. +5V and +12V are configurable on pin 9 of the serial connectors as POS system (Power over System). The card is fully Plug-and-Play compatible. The EX-44354 comes with a low-profile bracket for installation in narrow computer cases up to 8cm high.
Interface: RS-232 V.24
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
FIFO Buffer 16C550 with 16Byte
Full x1 PCI Express Throughput, 250Mbytes/sec
Fully Compliant with PCIe Base Specifications, Revision 1.0a
I/O addresses and interrupt are set from the operating system
Data bits: 7 and 8 / Stop bits: 1, 1.5, 2
Parity: none, even, odd, space and mark
Signal: RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Chipset: FTDI
Packaging contents:EX-44354, Octopus cable, Driver CD, Low Profile bracket, Manual
EX-42034
4S Serial RS-232/422/485 PCI card, POS configurable, (FTDI)
The EX-42034 PCI I/O card provides four serial RS-232, 422 and 485 high performance UART 16C550 outputs. It is designed to expand four additional serial ports for PC, small workstation or server via PCI– oder PCI-X Bus. +5V and +12V are configurable on pin 9 of the serial connectors as POS system (Power over System). The card is fully plug-and-play compatible. It supports the ATTA Auto RS-485 transmitter features. Each port can be individually set to RS-232, 422 or 485.
Interface: RS-232 V.24 / RS-422 / RS-485
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
FIFO Buffer 16C550 with 16Byte
I/O addresses and interrupt are set from the operating system
Data bits: 7 and 8 / Stop bits: 1, 1.5, 2
Parity: none, even, odd, space and mark
Support ATTA Auto Transmitter
Termination RS-422/485 - 120 Ohm can be enabled– and disabled
Signal:
RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422 - 4 wire (TxD+/-, RxD+/-) Fullduplex RS-485 - 4 wire (TxD+/-, RxD+/-) Fullduplex RS-485 - 2 wire (Data+/-, Data+/-) Halfduplex
Chipset: FTDI
Packaging contents:EX-42034, Slot adapter with 2x 9 pin male, Driver CD, Manual
EX-42034IS
4S Serial RS-232/422/485 PCI card, Surge Protection & Isolation (FTDI)
The EX-42034IS PCI I/O card provides four serial RS-232, 422 or 485 high performance UART 16C550 outputs with 15KV ESD Surge Protection and 2.5KV Isolation. It is designed to expand four additional serial ports for PC, small workstation or server via PCI- oder PCI-X Bus. The card is fully plug-and-play compatible. It supports the ATTA Auto RS-485 transmitter features. Each port can be individually set to RS-232, 422 or 485. POS (Power over System) is not selectable.
Interface: RS-232 V.24 / RS-422 / RS-485
15KV ESD Surge Protection and 2.5KV Isolation
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
FIFO Buffer 16C550 with 16Byte
I/O addresses and interrupt are set from the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space and mark
Support ATTA Auto Transmitter
Termination RS-422/485 - 120 Ohm can be enabled- and disabled
Signal:- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND- RS-422: 4 wire (TxD+/-, RxD+/-) Fullduplex- RS-485: 4 wire (TxD+/-, RxD+/-) Fullduplex- RS-485: 2 wire (Data+/-, Data+/-) Halfduplex
Chipset: FTDI
Packaging contents:EX-42034IS, Slot adapter with 2x 9 pin male, Driver CD, Manual
EX-45034IS
4S Serial RS-232/422/485 PCIe card Surge Protection & Isolation (FTDI Chipset)
The EX-45034IS PCIe I/O card provides four serial RS-232, 422 and 485 high performance UART 16C550 outputs with 15KV ESD Surge Protection and 2.5KV Isolation. It is designed to expand four additional serial ports for PC, small workstation or server via PCIe bus. The card is fully plug-and-play compatible. It supports the ATTA Auto RS-485 transmitter features. Each port can be individually set to RS-232, 422 or 485.
Interface: RS-232 V.24 / RS-422 / RS-485
15KV ESD Surge Protection and 2.5KV Isolation
±15kV IEC1000-4-2 ESD prodtecion for RS232 I/O's
FIFO Buffer 16C550 with 16Byte
I/O addresses and interrupt are set by the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space and mark
Support ATTA Auto Transmitter
Termination RS-422/485: 120 Ohm can be enabled- and disabled
Signal:- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND- RS-422: 4 wire (TxD+/-, RxD+/-) Fullduplex- RS-485: 4 wire (TxD+/-, RxD+/-) Fullduplex- RS-485: 2 wire (Data+/-, Data+/-) Halfduplex
Chipset: FTDI
Packaging contents:EX-45034IS, Slot adapter with 2x 9 pin male, Driver CD, Manual
EX-45034
4S Serial RS-232/422/485 PCIe card, POS configurable, (FTDI Chipset)
The EX-45034 PCI I/O card provides four serial RS-232, 422 and 485 high performance UART 16C550 outputs. It is designed to expand four additional serial ports for PC, small workstation or server via PCI or PCI-X bus. +5V and +12V are configurable on pin 9 of the serial connectors as POS system (Power over System). The card is fully plug-and-play compatible. It supports the ATTA Auto RS-485 transmitter features. Each port can be individually set to RS-232, 422 or 485.
Interface: RS-232 V.24 / RS-422 / RS-485
±15kV IEC1000-4-2 ESD prodtecion for RS232 I/O's
FIFO Buffer 16C550 with 16Byte
I/O addresses and interrupt are set from the operating system
Data bits: 7 and 8 / Stop bits: 1, 1.5, 2
Parity: none, even, odd, space and mark
Support ATTA Auto Transmitter
Termination RS-422/485 - 120 Ohm can be enabled- and disabled
Signal:
RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 - 4 wire (TxD+/-, RxD+/-) Fullduplex
RS-485 - 4 wire (TxD+/-, RxD+/-) Fullduplex
RS-485 - 2 wire (Data+/-, Data+/-) Halfduplex
Chipset: FTDI
Packaging contents:EX-45034, Slot adapter with 2x 9 pin male connector, Driver CD, Manual
EX-44088
8S PCIe Serial RS-232 Board (SystemBase)
The EX-44088 PCI-Express I/O adapter provides 8 high performance 16C1050-type UART compatible RS-232 serial ports. It is designed for PC, thin client or server to provide instant COM port expansion via the PCI Express Bus (PCIe). The card is fully PCI Express Plug-and-Play compatible and there are no IRQ and I/O address configuration problems. It additionally provides +5V and +12V for a POS System (Power over System) to the 9 pin male serial connector.
Interface: RS-232 V.24
FIFO Buffer: 16C1050 with 256Byte
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
I/O addresses: Set from the operating system
Interrupt: Setting from the System BIOS with Interrupt Sharing
Data Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
PCI Express Interface: Fully compliant with 2.0a Specification
Chipset: SystemBase
Packaging contents:EX-44088, 1x Octopus cable, 16x nuts, Driver CD, Manual
EX-44388
8S PCIe Serial RS-232 Board incl. LP bracket (SystemBase Chipset)
The EX-44388 PCI-Express I/O-adapter provides eight high performance 16C1050-type UART compatible RS-232 serial ports. It is designed for PC, thin client or server to provide instant COM port expansion via the PCI-Express Bus (PCI-e). The card is fully PCI-Express Plug-and-Play compatible and there are no IRQ and I/O address configuration problems. It provides +5V and +12V via the pin 9 from the male connector for a POS System (Power over System). With the EX-44388 we include a Low Profile bracket for small computer case.
Interface: RS-232 V.24 with FIFO Buffer 16C1050 with 258Byte
±15kV IEC1000-4-2 ESD Schutz für RS232 I/O's
I/O addresses and Interrupt: Setting from the System BIOS with IRQ Sharing
PCIe Interface fully compliant with 1.0a up to 3.0 specification
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Supports Flow Control RTS/CTS and XON/XOFF
Supports +5V or +12V to the pin 9 from the serial male connector
Chipset: SystemBase SB16C1058PCI
Packaging contents:EX-44388, Octopus cable, Driver CD, Low Profile bracket, Manual
