EX-1170HMVS
10 Port USB 2.0 Metal HUB (DIN-Rail), 15KV ESD Surge Protection
The rugged and industrial grade EX-1170HMVS is a USB 2.0 metal hub for up to ten end devices. The hub provides ten USB 2.0 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to four external USB peripherals to one USB 2.0 port from the computer in a 19" rack. By supplying power via the two-wire terminal block connector or the DC-Connector, 500mA can be made available at each USB port. It supports the Hi-Speed USB 2.0 data transfer rate of up to 480Mbit/s and is backward compatible to USB 1.1. The EX-1170HMVS can be powered with USB-Bus power, via a two-wire terminal block connector or via a DC-Connector (+5V bis 24V). The HUB meets the special requirements of industrial applications.
USB 2.0 Metal HUB with 10 Ports
15KV ESD Surge Protection for all Ports
Protection of Devices against voltage fluctuation
Power +5V bis 24V DC over the Terminal Block or DC-Connector
Power supply optionally also from the USB-Bus +5V (Bus-Power)
Easy installation with the included DIN-Rail Kit
Automatic recognition the data transfer rate for the attached external devices
Up to 500mA current per port
Automatic detection of input polarity on the current terminal block
Rugged Metal Case
1x LED Power-Indicator
Chipset: Terminus FE 2.1
Two internal jumpers for individual mode control (data and power):
Bus power jumper:
ENA = bus power operation possible
DIS = operation with power supply only (self power)
Host control jumper:
ON = Power supply independent of host PC
HOST = Power supply only when host PC is switched on
Packaging contents:EX-1170HMVS, USB 2.0 Cable, DIN-Rail Kit, Manual
EX-1110HMVS-WT
10 Port USB 3.2 Gen 1 Metal HUB for Temperature from -40°C to +85°C degree
The rugged, industrial-grade EX-1110HMVS-WT provides ten bolt-on USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection, allowing up to ten external USB peripherals to be connected to one USB 3.2 Gen 1 port on the computer in a 19" rack. SuperSpeed USB 3.2 Gen 1 supports a maximum data transfer rate of up to 5Gbps, backward compatible to USB 1.1. The included USB 3.2 Gen 1 cable can be attached to the EX-1110HMVS-WT with thumbscrews without tools. Power is supplied via a two-wire connection on the terminal block (+7V to +24V) or USB bus power. The EX-1110HMVS-WT is specially designed for use in the extended temperature range of -40°C to 85°C and meets the special requirements of industrial applications.
USB 3.2 Gen 1 metal HUB with 10 ports
15KV ESD surge protection for all 10 ports
Protection of end devices against voltage fluctuations
Power supply +7V to +24V DC via terminal block
Power supply optionally from USB bus +5V (bus power)
Easy installation with included DIN-Rail Kit
Automatic detection of the data transfer rate for connected peripherals
Up to 2.3A current at one port, 1.5A when all ports in use simultaneously (max. output 75W)
Supports battery charging BC v1.2: SDP/CDP/DCP mode
Automatic input polarity detection on the terminal block
Rugged metal case with extended temperature range from -40°C to 85°C
1x LED voltage indicator
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging contents:EX-1110HMVS-WT, USB 3.2 Gen 1 Cable, DIN-Rail Kit, Manual
Tip
EX-12280HMS
10 Port USB 3.2 Gen 2x1 Metal HUB with 4x USB-C and 6x USB-A 3.2 Gen 1, for desk, wall and DIN-Rail mounting
The rugged, industrial-grade EX-12280HMS is a USB 3.2 Gen 2x1 metal hub for up to ten end devices that can be wall-mounted or DIN-rail mounted. All connections are located on the top, providing flexibility for installation in a housing or cabinet. It connects to the host PC via a USB-C cable and has four USB-C 3.2 Gen 2x1 ports and six USB-A 3.2 Gen 1 ports for end devices. The USB-C ports offer outstanding performance of up to 10Gbps (SuperSpeed USB 10Gbps), while the USB-A ports transfer data at up to 5Gbps (SuperSpeed USB 5Gbps). Up to 2.4A per port can be provided with a maximum output of 64W using an external power supply. This makes it easy to charge iPhones, iPads, smartphones and tablets. A DC Jack (5.5 mm/2.1 mm) for a plug-in power supply and a terminal block for connecting a DIN-Rail power supply are available for power supply.
USB 3.2 Metal HUB with 4x USB-C Gen 2x1 and 6x USB-A Gen 1 downstream ports
15KV ESD surge protection for each output
Power supply +9V to +24V DC via terminal block or DC Jack
Up to 2.4A per port, total output power max. 64 W
Automatically detects data transfer rate of connected peripherals
Wall bracket and DIN-Rail kit included
Compact industrial design
Rugged metal case
LED indicators for power and link status
Packaging contents:EX-12290HMS, USB 3.2 Gen 2x1 cable (screw lock) 1m, DIN-Rail Kit, Wall mounting brackets, Manual
EX-12290HMS
10 Port USB 3.2 Gen 2x1 Metal HUB with 4x USB-C and 6x USB-A 3.2 Gen 1, for table, wall and DIN-Rail mounting
The EX-12290HMS is a rugged metal USB 3.2 Gen 2x1 hub for up to ten devices that can be mounted on a wall or DIN-rail. It connects to the host PC via a USB-C cable and provides four USB-C 3.2 Gen 2x1 ports and six USB-A 3.2 Gen 1 ports for end devices. The USB-C ports offer excellent performance of up to 10Gbps (SuperSpeed USB 10Gbps), while the USB-A ports transfer data at up to 5Gbps (SuperSpeed USB 5Gbps). Up to 2.5A per port with a maximum of 64W is available from the external power supply. This makes it easy to charge iPhone, iPad, smartphones and tablets. Power is supplied via the plug-in power supply unit supplied or an optionally available DIN-Rail power supply unit (self-power).
USB 3.2 metal HUB with 4x USB-C Gen 2x1 and 6x USB-A Gen 1 downstream
15KV ESD surge protection for each output
Power +9V up to +24V DC via Terminal Block or DC Jack
Up to 2.4A per port, total output power max. 64W
Automatic detection of the data transfer rate of connected peripherals
Includes wall mount kit and DIN-Rail Kit
Compact industrial design
Rugged metal case
LED indicators for power supply and connection status
Packaging contents:EX-12290HMS, Power Supply (24V/3A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, Wall Mounting Brackets, Manual
EX-1110HMVS-PL
10-Port USB 3.2 Gen 1 HUB Board with 15KV ESD Surge Protection
The USB 3.2 Gen 1 Hub Board EX-1110HMVS-PL is a fully functional industrial USB 3.2 hub with ten downstream ports for integration into custom devices, assemblies or enclosures. It is ideal for embedded systems, kiosks, industrial automation and other specialised applications requiring multiple USB ports.
USB 3.2 Gen 1 hub with ten downstream ports
USB 3.2 Gen 1 data transfer rate up to 5 Gbps
Backward compatible with USB 3.1, 3.0, 2.0, 1.1
15KV ESD surge protection for each output
Protects end devices from voltage fluctuations
Power supply +7V to +24V DC via Terminal Block
Optional power supply from USB bus +5V (bus power)
Automatic detection of data transfer rate of connected peripheral devices
Automatic detection of input polarity on power Terminal Block
Up to 1.5A per port, total output power max. 75 W
Supports USB battery charging V1.2
LED power indicator
Chipset: Genesys
Two jumpers for individual mode control (data and power):
Bus power jumper:
ENA = bus power operation possible
DIS = operation with power supply only (self power)
Host control jumper:
ON = Power supply independent of host PC
HOST = Power supply only when host PC is switched on
Packaging contents:EX-1110HMVS-PL, Terminal Block
EX-11220HMVS
10-port USB 3.2 Gen 1 metal HUB for table, wall and DIN-Rail, 15KV ESD protection
The rugged, industrial-grade EX-11220HMVS USB hub with ten screwable USB 3.2 Gen 1 outputs is suitable for consumer and industrial applications. It can be installed on the wall or even on a carrier rail and connects to computer, notebook or server with the included USB 3.2 Gen 1 cable. It ensures secure data transfer with excellent performance of up to 5Gbps (SuperSpeed USB 5Gbps) and is backward compatible to USB 1.1. It can be powered with USB bus power or via a two-wire terminal block connector (+9V to 40V). Optionally, a power supply (EX-6990) can be connected to the DC Jack.
USB 3.2 Gen 1 metal HUB with ten downstream ports
Up to 2.6A current at one port, 900 mA when all ports in use simultaneously (max. output 45W)
USB Battery Charing specification BC1.2
Power supply: Bus Power or Self Power
Support power +9V up to +40V DC over the DC Jack or terminal block
Automatic detection of input polarity on the current terminal block
Automatic recognition the data transfer rate for the attached external devices
Includes removable wall mount kit and DIN-Rail Kit
Compact industrial design
Rugged metal case
LED indicators for power supply and connection status
Chipset: VIA VL811+
Packaging contents:EX-11220HMVS, USB 3.2 Gen 1 cable 1.0m, DIN-Rail Kit, Wallmount Kit, Manual
EX-11230HMS
10-port USB 3.2 Gen 1 metal HUB for table, wall and DIN-Rail, 15KV ESD protection
The robust, industrial EX-11230HMS USB hub in a metal housing with ten USB 3.2 Gen 1 outputs can be installed on the wall or also on a carrier rail. All ports are located on the top, offering great flexibility for installation in a case or cabinet, for example. In addition, the EX-11230HMS is equipped with 15KV ESD surge protection. Up to 1.5A can be provided to each port via the external power supply. This allows you to charge iPhone, iPad, smartphone and tablet without any problems. Power is supplied via the included plug-in power supply or an optionally available DIN rail power supply (self-power). Bus power is not supported.
USB 3.2 Gen 1 Metal HUB with ten downstream ports
15KV ESD surge protection for each output
Power +9V up to +24V DC via Terminal Block or DC-Connector
Up to 1.5A current at one port, 1.35A when all ports in use simultaneously (max. output 68W)
Automatic recognition the data transfer rate for the attached external devices
Includes wall mount kit and DIN-Rail Kit
Compact industrial design with a robust metal case
LED indicators for power supply and connection status
Chipset: VIA VL813
Packaging content:EX-11230HMS, USB 3.2 Gen 1 cable 2.0m, Power Supply 12V/5A, DIN-Rail Kit, Wallmount Kit, Manual
EX-11290HMS
10-Port USB 3.2 Gen 1 Metal HUB for table, wall and DIN-Rail, 15KV ESD Protection
The rugged, industrial-grade EX-11290HMS is a USB 3.2 Gen 1 metal HUB for up to ten end devices that can be installed on the wall or on a mounting rail. The EX-11290HMS ensures secure data transmission and a performance of up to 5Gbit/s. The EX-11290HMS is also equipped with 15KV ESD overvoltage protection. A maximum of 1.0A is available at nine USB ports via the external power supply, while up to 2.4A is available at one port.Power is supplied via the supplied plug-in power supply unit or an optional DIN rail power supply unit (self-power). Bus power is not supported.
USB 3.2 Gen 1 Metal HUB with ten downstream ports
15KV ESD surge protection for each output
Power +9V up to +24V DC via Terminal Block or DC-Connector
10 ports with 9x 1A and 1x 2.4A (total 57W) with the supplied power supply
Can also be used as a USB charger without connection to the host PC
Automatic recognition of the data transfer rate for attached peripherals
Includes wall mount kit and DIN-Rail Kit
Compact industrial design with a robust metal case
LED indicators for power supply and connection status
Chipset: VIA VL817Q7S
Packaging contents:EX-11290HMS, USB 3.2 Gen 1 cable 2.0m, power supply 12V/5A, DIN-Rail Kit, Wallmount Kit, Manual
EX-1110HMVS
10-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, A-Ports
The rugged, industrial-grade EX-1110HMVS provides ten bolt-on USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to ten external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. The included USB 3.2 Gen 1 cable with can be attached to the EX-1110HMVS with thumbscrews without a screwdriver. The EX-1110HMVS can be powered with USB bus power or via a two-wire terminal block connector (+7V to +24V). The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 Metal HUB with 10 Ports
15KV ESD Surge Protection on all 10 Ports
Protection of Devices against voltage fluctuation
Power +7V up to +24V DC over the Terminal Block
Power supply optionally also from the USB-Bus +5V (Bus-Power)
Easy installation with the included DIN-Rail Kit
Automatic recognition of the data transfer rate for the attached external devices
Up to 2.3A current at one port, 1.5A when all ports in use simultaneously (max. output 75W)
Support BC v1.2: SDP/CDP/DCP Charging Modes
Automatic detection of input polarity on terminal block
Rugged Metal Case
1x LED Power-Indicator
Chipset: Genesys
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging contents:EX-1110HMVS, USB 3.2 Gen 1 Cable, DIN-Rail Kit, Manual
Tip
EX-12270HMS
10-port USB 3.2 Gen 2 metal hub with 10x USB-C connector, 79.5W
The rugged, industrial-grade EX-12270HMS is a metal USB 3.2 Gen 2x1 hub for up to ten devices that can be mounted on a wall or on a DIN-Rail. It connects to the host PC via a USB-C cable and provides ten USB-C 3.2 Gen 2x1 ports for end devices with outstanding performance of up to 10Gbps (SuperSpeed USB 10Gbps). Using the external power supply, the hub provides up to 2.4A per port with a maximum output of 79.5W. This makes it easy to charge iPhones, iPads, smartphones and tablets. Power is supplied via the included power supply or an optional DIN-Rail power supply (self-powered).
USB 3.2 metal HUB with 10x USB-C Gen 2x1 downstream
15KV ESD protection for each output
Power supply +9V to +24V DC via terminal block or DC-jack
Up to 2.4A per port, total output power max. 79.5W
Supports USB battery charging V1.2
Can also be used as a USB charger without connection to the host PC
Automatically detects the data transfer rate of connected peripherals
Wall bracket and DIN-Rail kit included
Rugged metal housing with compact industrial design
LED indicators for power and link Status
Chipset: VL822-Q7
Packaging contents:EX-12270HMS, Power Supply (24V/4A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, Wall mounting brackets, Manual
EX-12290HMS-PL
10-Port USB 3.2 Gen 2x1 HUB Board with 4x USB-C and 6x USB-A 3.2 Gen 1
The USB 3.2 Gen 2x1 Hub Board EX-12290HMS-PL is a fully functional industrial USB 3.2 hub for integration into custom devices, assemblies or enclosures. It is ideal for embedded systems, kiosks, industrial automation and other specialised applications requiring multiple USB ports.
USB 3.2 HUB with 4x USB-C Gen 2x1 and 6x USB-A Gen 1 downstream ports
USB 3.2 Gen 2x1 data transfer rate up to 10 Gbps (USB-C)
Backward compatible to USB 3.1, 3.0, 2.0, 1.1
15KV ESD protection for each output
Power supply +9V to +24V DC via Terminal Block or DC socket
600W power input overvoltage protection
Over current detection and protection circuit
Up to 2.4A per port, total output power max. 64 W
Supports USB battery charging V1.2
Automatic detection of data transfer rate of connected peripheral devices
LED indicators for power and link status
Packaging contents:EX-12290HMS-PL, Terminal Block
EX-1112HMS
12 Ports USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, A-Ports
The rugged, industrial-grade EX-1112HMS hub provides twelve USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to twelve external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbit/s and is backward compatible to USB 1.1. The EX-1112HMS can be powered with USB bus power or via a two-wire terminal block connector (self-power). In Self-Power mode, 900mA can be provided to each USB port. The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 Metal HUB with 12 Ports
15KV ESD Surge Protection for all 12 Ports
Protection of Devices against voltage fluctuation
Power +7V up to +24V DC over the Terminal Block
Power supply optionally also from the USB-Bus +5V (Bus-Power)
Easy installation with the included DIN-Rail Kit
Automatic recognition of the data transfer rate for the attached external devices
Up to 2.3A current at one port, 900 mA when all ports in use simultaneously (max. output 54W)
Automatic detection of input polarity on the terminal block
Rugged Metal Case
1x LED Power-Indicator
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging Contents:EX-1112HMS, USB 3.2 Gen 1 Cable, DIN-Rail Kit, Wall Mounting Bracket, Manual
EX-1116HMVS
16-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, A-Ports
The rugged, industrial-grade EX-1116HMVS hub provides sixteen bolt-on USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to sixteen external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. The included USB 3.2 Gen 1 cable with can be attached to the EX-1116HMVS with thumbscrews without a screwdriver. The EX-1116HMVS must be powered via a DC Jack (+12V to +24V), or via a two-wire terminal block connector (+12V to +24V). The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 Metal HUB with 16 Ports
15KV ESD Surge Protection for all 16 Ports
Protection of devices against voltage fluctuation
Power +12V up to +24V DC over the DC-Connector or Terminal Block
Easy installation with the included DIN-Rail Kit
Automatic recognition of the data transfer rate for the attached external devices
Up to 2.3A current at one port, 1.5A when all ports in use simultaneously (max. output 120W)
Supports BC v1.2: SDP/CDP/DCP Charging Modes
Automatic detection of input polarity on the terminal block
Rugged metal case
1x LED Power-Indicator
2x LED Active-Indicator USB 3.2 Gen 1 Upstream B-Port
Packaging Contents:EX-1116HMVS, USB 3.2 Gen 1 Cable, DIN-Rail Kit, 2x Mounting Angle, Manual
EX-1113HMS
16-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, A-Ports
The rugged, industrial-grade EX-1113HMS hub provides sixteen USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to sixteen external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. The EX-1113HMS can be powered by USB bus power or via a two-wire terminal block connector (self-power). In Self-Power mode, 900mA can be provided to each USB port. The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 Metal HUB with 16 Ports
15KV ESD Surge Protection for all 16 Ports
Protection of Devices against voltage fluctuation
Power +7V up to +24V DC over the Terminal Block
Power supply optionally also from the USB-Bus +5V (Bus-Power)
Easy installation with the included DIN-Rail Kit
Automatic recognition of the data transfer rate for the attached external devices
Up to 2.3A current at one port, 900 mA when all ports in use simultaneously (max. output 72W)
Automatic detection of input polarity on the current terminal block
Rugged metal case
1x LED Power-Indicator
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging Contents:EX-1113HMS, USB 3.2 Gen 1 cable, DIN-Rail Kit, Wall Mounting Bracket, Manual
Product Video EX-1113HMS
EX-1116HMVS-PWR
16-Port USB 3.2 Gen 1 Metal HUB with 15KV Surge Protection, incl. Power Supply
The rugged, industrial-grade EX-1116HMVS-PWR hub provides sixteen bolt-on USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to sixteen external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. The included USB 3.2 Gen 1 cable with can be attached to the EX-1116HMVS-PWR with thumbscrews without a screwdriver. The EX-1116HMVS-PWR must be powered via a DC Jack (+12V to +24V), or via a two-wire terminal block connector (+12V to +24V). A 24V/6A power supply unit is supplied. The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 Metal HUB with 16 Ports
15KV ESD Surge Protection for all 16 Ports
Protection of devices against voltage fluctuation
Power +12V up to +24V DC over the DC-Connector or Terminal Block
Easy installation with the included DIN-Rail Kit
Automatic recognition of the data transfer rate for the attached external devices
Up to 2.3A current at one port, 1.5A when all ports in use simultaneously (max. output 120W)
Supports BC v1.2: SDP/CDP/DCP Charging Modes
Automatic detection of input polarity on the terminal block
Rugged metal case
1x LED Power-Indicator
2x LED Active-Indicator USB 3.2 Gen 1 Upstream B-Port
Packaging Contents:EX-1116HMVS-PWR, USB 3.2 Gen 1 Cable, DIN-Rail Kit, Power Supply, 2x Mounting Angle, Manual
EX-12276HMS
16-port USB 3.2 Gen 2 metal hub with 16x USB-C connector, 120W
The rugged, industrial-grade EX-12276HMS is a metal USB 3.2 Gen 2x1 hub for up to sixteen devices that can be mounted on a wall, in a 19"-rack or on a DIN-Rail. It connects to the host PC via a USB-C cable and provides sixteen USB-C 3.2 Gen 2x1 ports for end devices with outstanding performance of up to 10Gbps (SuperSpeed USB 10Gbps). Using the external power supply, the hub provides up to 2.4A per port with a maximum output of 120W. This makes it easy to charge iPhones, iPads, smartphones and tablets. Power is supplied via the included power supply or an optional DIN-Rail power supply (self-powered).
USB 3.2 metal HUB with 16x USB-C Gen 2x1 downstream
15KV ESD protection for each output
Power supply +12V to +24V DC via terminal block or DC-jack
Up to 2.4A per port, total output power max. 120W
Supports USB battery charging V1.2
Can also be used as a USB charger without connection to the host PC
Automatically detects the data transfer rate of connected peripherals
Wall bracket, 19"-rack bracket and DIN-Rail kit included
Rugged metal housing with compact industrial design
LED indicators for power and link Status
Chipset: VL822-Q7
Packaging contents:EX-12276HMS, Power Supply (24V/5A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, 19"-rack brackets, Wall mounting brackets, Manual
EX-11236HMS
16-Ports USB 3.2 Gen 1 Metal HUB for Table, Wall and DIN-Rail, 15KV ESD Protection
The rugged, industrial-grade EX-11236HMS is a USB 3.2 Gen 1 metal hub for up to sixteen end devices that can be mounted on the wall, in a 19" rack or on a DIN rail. It can be connected to two host PCs, selectable via a toggle switch, and has sixteen screw-lock USB-A 3.2 Gen 1 ports for end devices with a performance of up to 5 Gbps (SuperSpeed USB 5Gbps). Using the external power supply, the hub provides up to 2.4A per port with a maximum output of 120W. This makes it easy to charge iPhones, iPads, smartphones and tablets. Power is supplied via the included power supply or an optional DIN-Rail power supply (self-powered).
USB 3.2 metal HUB with 16x USB 3.2 Gen 1 downstream A-ports
15KV ESD protection for each output
Power supply +12V to +30V DC via terminal block or DC-jack
Up to 2.4A per port, total output power max. 120W
Supports USB battery charging V1.2
Can also be used as a USB charger without connection to the host PC
Automatically detects the data transfer rate of connected peripherals
Wall bracket, 19"-rack bracket and DIN-Rail kit included
Rugged metal housing with compact industrial design
LED indicators for power and link Status
Chipset: VL817-Q7S
Packaging contents:EX-11236HMS, Power Supply (24V/5A), 2x USB 3.2 Gen 1 Cable 2m, DIN-Rail Kit, 19"-rack brackets, Wall mounting brackets, Manual
EX-1163
4 Port USB 2.0 HUB, plastic housing incl. power supply
With the EX-1163 you can extend from one USB 2.0 port to four USB 2.0 ports. It’s possible now to connect up to four external USB 2.0 peripherals devices to one USB 2.0 port from the Notebook or Desktop Computer. He it’s very compact and robustly.
USB 2.0 HUB with four USB 2.0 ports
Automatic recognition the data transfer rate for the attached external peripheral devices
Support all USB 2.0 compatible devices
Power from the USB port (Bus-Power)
Chip-Set: NEC uPD720112
Packaging contents:EX-1163, USB 2.0 cable (2.0 meter), Wall– or table top holder, Manual
EX-11214HMVS
4 port USB 2.0 Metal HUB for table, wall and DIN rail mounting, 15KV ESD protection
The robust, industrial-grade EX-11214HMVS USB hub with four screwable USB 2.0 outputs is suitable for consumer and industrial applications. It can be installed on the wall or even on a support rail and connects to computer, notebook or server with the included USB 2.0 cable. It supports Hi-Speed USB 2.0 data transfer rate of up to 480 Mbps and is backward compatible to USB 1.1. Power is supplied via the included plug-in power supply or an optionally available DIN rail power supply (self-power). Bus power is not supported.
USB 2.0 metal HUB with four downstream ports
Power +9V up to +36V DC over the terminal block
500mA current on all 4 ports
15KV ESD Surge protection
Automatic detection of input polarity on the current terminal block
Automatic recognition the data transfer rate for the attached external devices
Includes wall mount kit and din rail kit
Compact industrial design
Rugged metal case
1x Green LED for Power Display
Chipset: Genesys
Packaging content:EX-11214HMVS, USB 2.0 cable 2.0m, Power Supply 5V/2A, DIN-Rail Kit, Wallmount Kit, Manual
EX-1163HMS-WT
4 Port USB 2.0 Metal HUB with extended Temperatur from -40°C up to +85°C
The EX-1163HMS-WT offers four USB 2.0 Downstream ports with each 15KV Surge Protection. It is possible to connect up to four external USB 2.0 peripheral devices to one USB 2.0 port in a 19-inch rack. He can be used for automation– and office applications. The EX-1163HMS-WT fulfils the special requirements of industrial applications. He is very compact and robust. The EX-1163HMS-WT support temperature from - 40°C degree up to +85°C degree.
USB 2.0 HUB with 15KV ESD Surge Protection for all 4 ports
Support protection of devices against voltage fluctuation
Support a extended temperature field from –40°C to +85°C
Power +7V up to +48V DC from the Terminal Block
Easy installation with the included DIN-Rail Kit
Compact industrial design with additional lateral heatsink
Provides Status LED for each downstream port
Optional power over USB port +5 Volt (Bus-Power)
Chipset: Genesys
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging contents:EX-1163HMS-WT, USB 2.0 cable 2.0m, DIN-Rail Kit, Manual
EX-1182VIS-2
4 Port USB 3.2 Gen 1 HUB with 3.0KV Isolation
The EX-1182VIS-2 allows you to expand a USB 3.2 Gen 1 output (previously 3.0 or 3.1 Gen 1) of a notebook or desktop computer with three additional USB 3.2 Gen 1 and one USB 2.0 port with 15KV ESD surge protection and 3KV isolation. Up to four external USB peripherals can be connected to a single USB 3.2 Gen 1 port on a notebook, desktop or server. The supplied EX-K1551V cable can be attached to the EX-1182VIS-2 without a screwdriver using knurled screws. The EX-1182VIS-2 can be mounted on a DIN rail in a 19" rack, on the wall or under a table.
USB 3.2 Gen 1 HUB with three USB 3.2 Gen 1 and one USB 2.0 downstream port
3KV isolation between upstream and all downstream ports
15KV ESD surge protection for each port
Power supply 5V/4A DC socket with plug-in power supply
Optionally also powered via USB-BUS +5V (bus powered)
Up to 2.3A current at one port, 900 mA when all ports in use simultaneously (max. output 18W)
Supports battery charging v1.2 (CDP, DBP)
Robust plastic casing
1x LED power indicator
Chipset: Genesys GL3523
Note: USB 2.0/1.1 is not supported by USB 3.2 Gen 1 ports.
Packaging Contents:EX-1182VIS, 5V/4A power supply, USB 3.2 Gen 1 cable 1.5m, DIN-Rail kit, wall bracket, manual

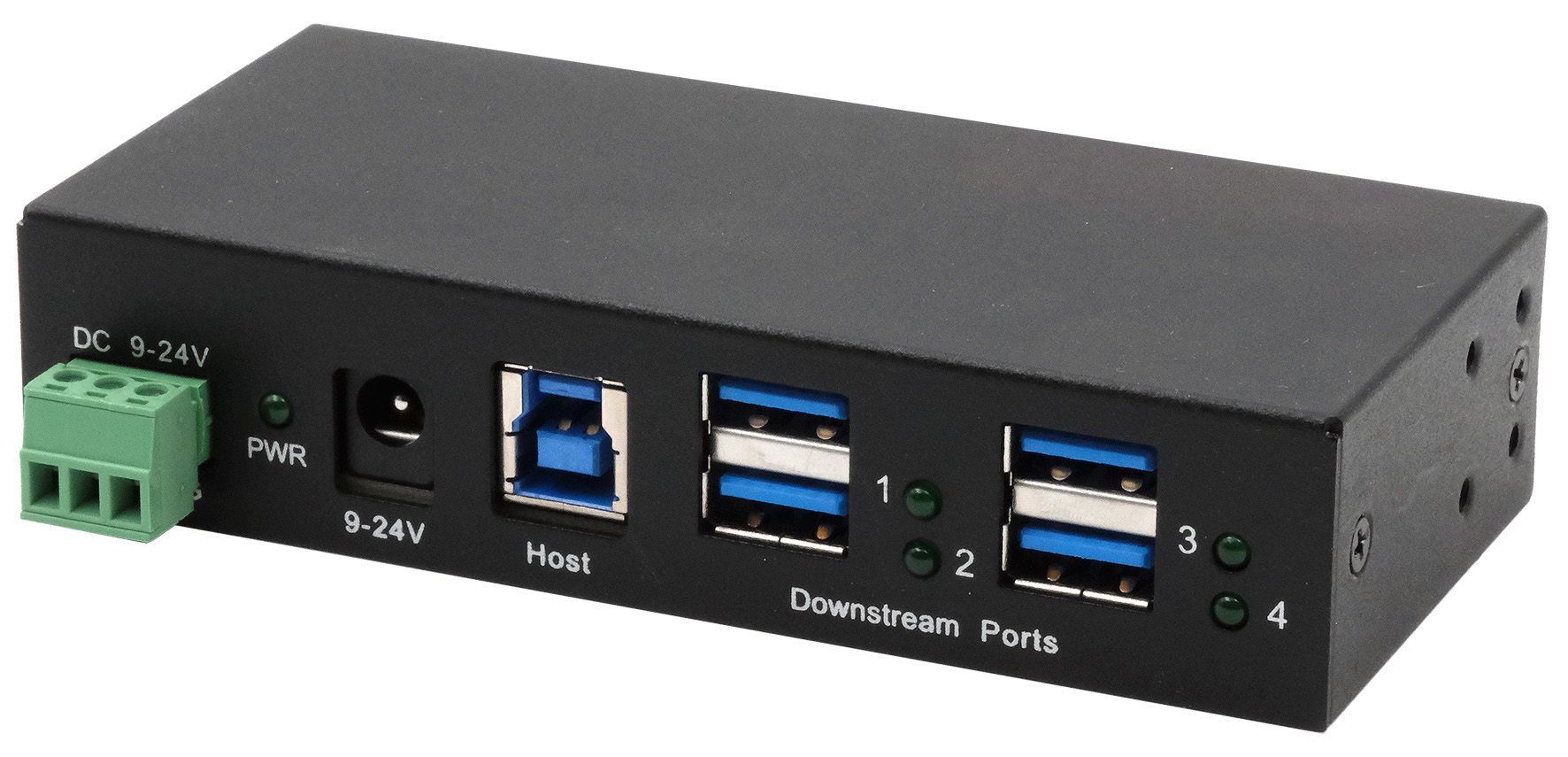

EX-11244HMS
4 Port USB 3.2 Gen 1 metal HUB with 15KV ESD Protection for wall and DIN-Rail mounting
The robust, industrial-grade EX-11244HMS USB hub in a metal housing with four USB 3.2 Gen 1 outputs can be installed on the wall or on a carrier rail. It ensures secure data transfer and excellent performance of up to 5Gbps (SuperSpeed USB 5Gbps). In addition, EX-11244HMS is equipped with 15KV ESD surge protection. Up to 1.5A can be provided to each port via the external power supply. This allows you to charge iPhone, iPad, smartphone and tablet without any problems.An optionally available power supply is required for operation (self-power), bus-power is not supported.
USB 3.2 Gen 1 Metal HUB with four downstream ports
15KV ESD surge protection for each output
Power +9V up to +24V DC via Terminal Block or DC-Connector
Up to 2.4A current at one port, 1.15A when all ports in use simultaneously (max. output 23W)
Automatic recognition the data transfer rate for the attached external devices
Includes wall mount kit and DIN-Rail Kit
Compact industrial design
Rugged metal case
LED indicators for power supply and connection status
Chipset: VIA VL817S
Packaging contents:EX-11244HMS, USB 3.2 Gen 1 cable 2.0m, DIN-Rail Kit, Wallmount Kit, Manual
EX-1195HMS
4 Port USB 3.2 Gen 1 Metal HUB with 1x USB-C and 3x USB-A ports, USB-C Upstream
The EX-1195HMS is a USB 3.2 Gen 1 (previously called 3.0) metal HUB that complies with Universal Serial Bus (USB) Revision 3.2 Gen 1 specifications and operates at data speeds up to 5Gbps. It offers one USB-C upstream port and 4 downstream ports with one USB-C and three USB-A ports. The EX-1195HMS supports 15KV ESD surge protection for each port. Port 1 is equipped with one USB-C connector. It is thus possible to connect up to four external USB peripherals to one USB 3.2 Gen 1 port from the computer in the 19" rack. The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 metal HUB with one C– and three A-Downstream ports
15KV ESD Surge Protection on all ports
Power +7V up to +48V DC over the terminal block
Automatic detection of input polarity on the terminal block
Power supply optionally also from the USB-BUS +5V (Bus-Power)
900mA current on all 4 ports
Fast USB battery charging with CDP and DCP mode
Easy installation with the included DIN-Rail Kit
Support all USB 1.1 up to 3.2 Gen 1 compatible devices
Compact industrial design with a robust metal housing
LED Power Display
Internal jumper for individual control of power supply:- ENA = bus power operation possible- DIS = operation with power supply only (self power)
Packaging contents:EX-1195HMS, USB A-to-C 3.2 Gen 1 cable, DIN-Rail Kit, Manual
EX-1191HMVS-PD
4 Port USB 3.2 Gen 1 Metal HUB with USB PD Charging (Surge Protection)
The EX-1191HMVS-PD is a USB 3.2 Gen 1 metal HUB with USB-C PD (Power Delivery) support. The rear USB-C port (PD source) provides up to 60W of charging power for the host notebook or tablet. At the USB-C downstream port on the front, their peripherals can be connected and also charged. Only a single power supply from the EX-1191HMVS-PD is required for the host and devices. The three A and USB-C downstream ports are each protected against overvoltage with 15KV. The EX-1191HMVS-PD supports +12V to +24V power supply via a terminal block. It can be used in automation and office applications. The HUB meets the special requirements of industrial applications.
USB 3.2 Gen 1 HUB with one USB-C PD and three USB-A ports
15KV ESD surge protection for each port
Power supply from +12V to +24V DC via terminal block or DC Jack +12V to +24V
PD Source with max. 60W charging power
Fast charging with CDP and DCP mode for up to 2 A on each USB output
For all USB 1.1 to 3.2 compatible peripherals
DIN-Rail Kit (EX-6099) optionally available
Metal case for wall or rack mounting
Packaging contents:EX-1191HMVS-PD, USB-C 3.2 Gen 1 Cable 1m, Power Supply 20V/3.25A, Manual
Product Video EX-1191HMVS-PD
