Adapter M12 A-code 8-pin male to RJ45 jack, waterproof IP67
Product number:
EX-49504
GTIN/EAN:
4718359495045

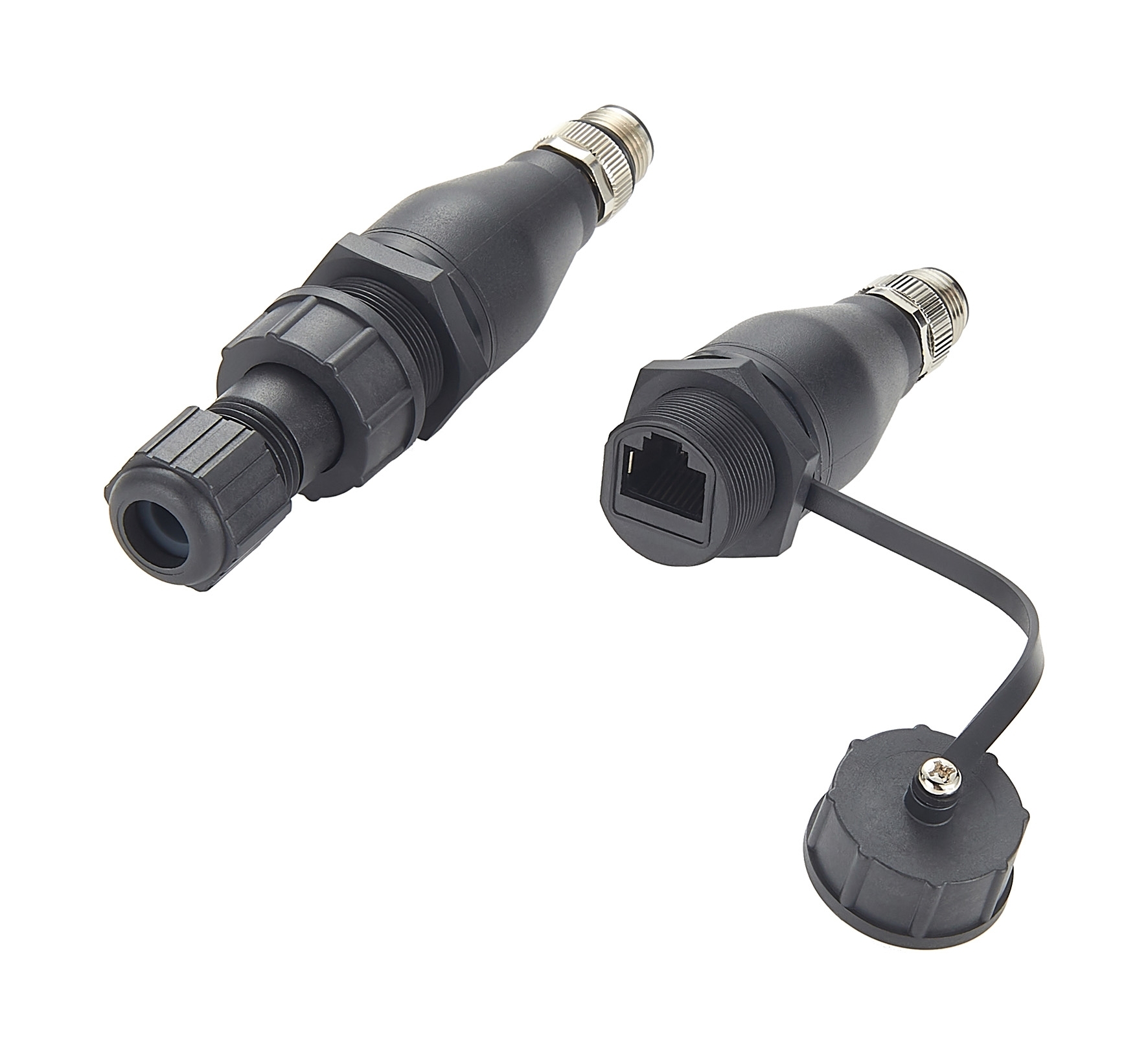

Adapter M12 A-code 8-pin male to RJ45 jack, waterproof IP67

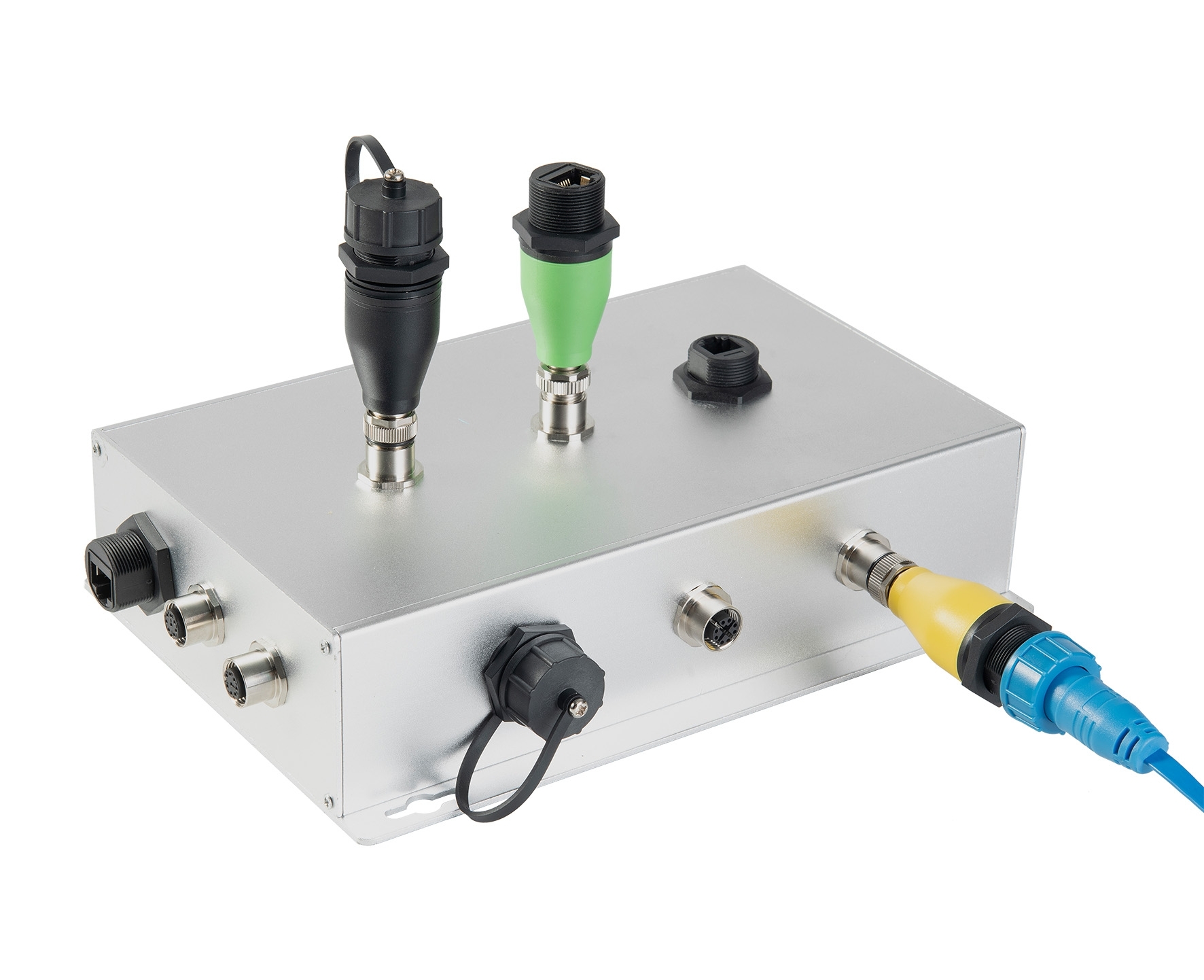

The Industrial Ethernet Adapter enables the integration of devices with an M12 connection into an existing network structure, e.g. in machine control or automation systems. For example, sensors and actuators can be connected to the network for real-time monitoring and control. Suitable for installation in a control panel or cabinet, it is dustproof and waterproof to IP67, ensuring stable and reliable data transmission in harsh industrial environments.
- Adapter M12 plug, 8-pin, A-coded to RJ45 socket
- For use in fieldbus systems such as PROFIBUS, PROFINET, etc.
- For integration of M12 components in an Ethernet network
- CAT.5e up to 1 Gbit/s
- Fully protected to IP67
- RJ45 housing with 13/16"-28UNS thread with HEX nut for panel mounting
Delivery contents:

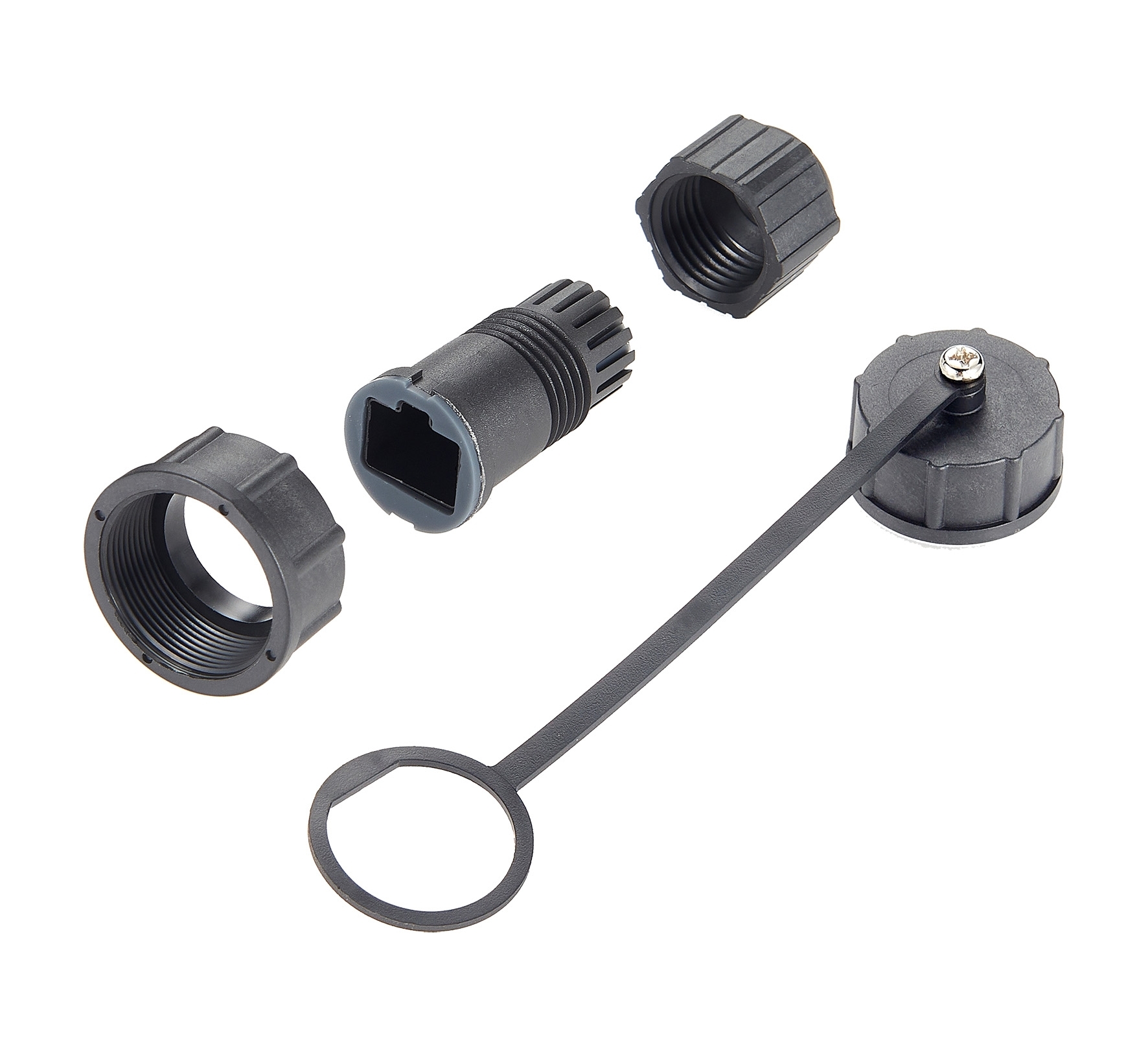

M12 to RJ45 adapter, IP67 protective housing for RJ45 connectors, protective cap
| Application: | Adapter |
|---|---|
| Housing: | Plastic |
| IP protection: | IP67 |
| Inputs: | M12 plug A-code 8-pin |
| Interface: | Cat.5e |
| Mounting Type: | panel |
| Outputs: | RJ45 socket |
| Temperature range: | -40°C to +85°C |
