Adapter M12 A-code 8-pin female to RJ45 jack
Product number:
EX-49501
GTIN/EAN:
4718359495014
Adapter M12 A-code 8-pin female to RJ45 jack

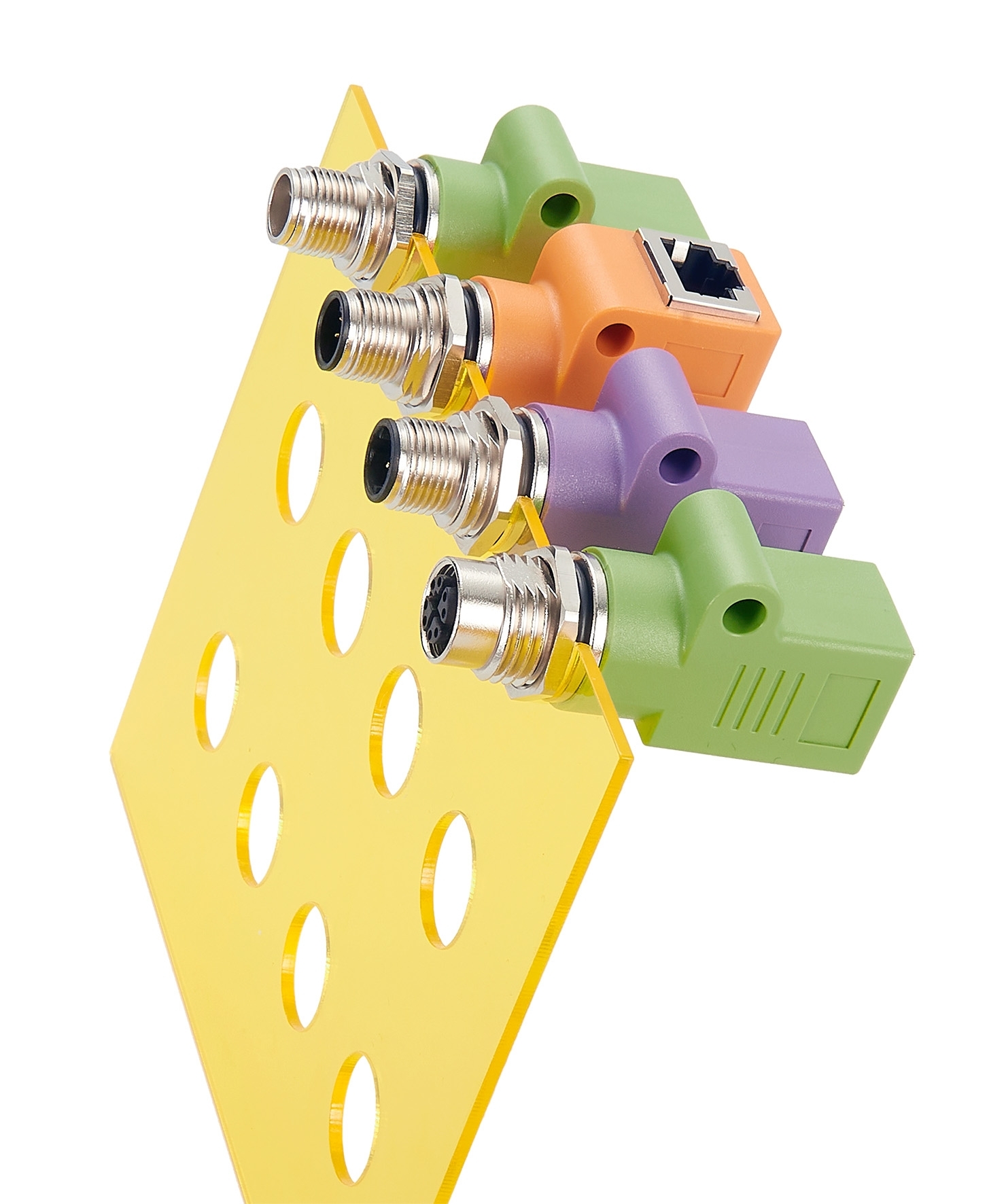

The Industrial Ethernet Adapter enables devices with an M12 connector to be integrated into an existing network structure, e.g. in machine control or automation systems. It is suitable for installation in a control panel or cabinet, but can also be screwed directly to a wall or panel.
- Adapter M12 socket, 8-pin, A-coded to RJ45 socket
- For integrating components with M12 connector into an Ethernet network
- CAT.5e up to 1 Gbps
- Pin assignment according to Profinet standard
- M16 external thread with sealing ring and lock nut for panel mounting

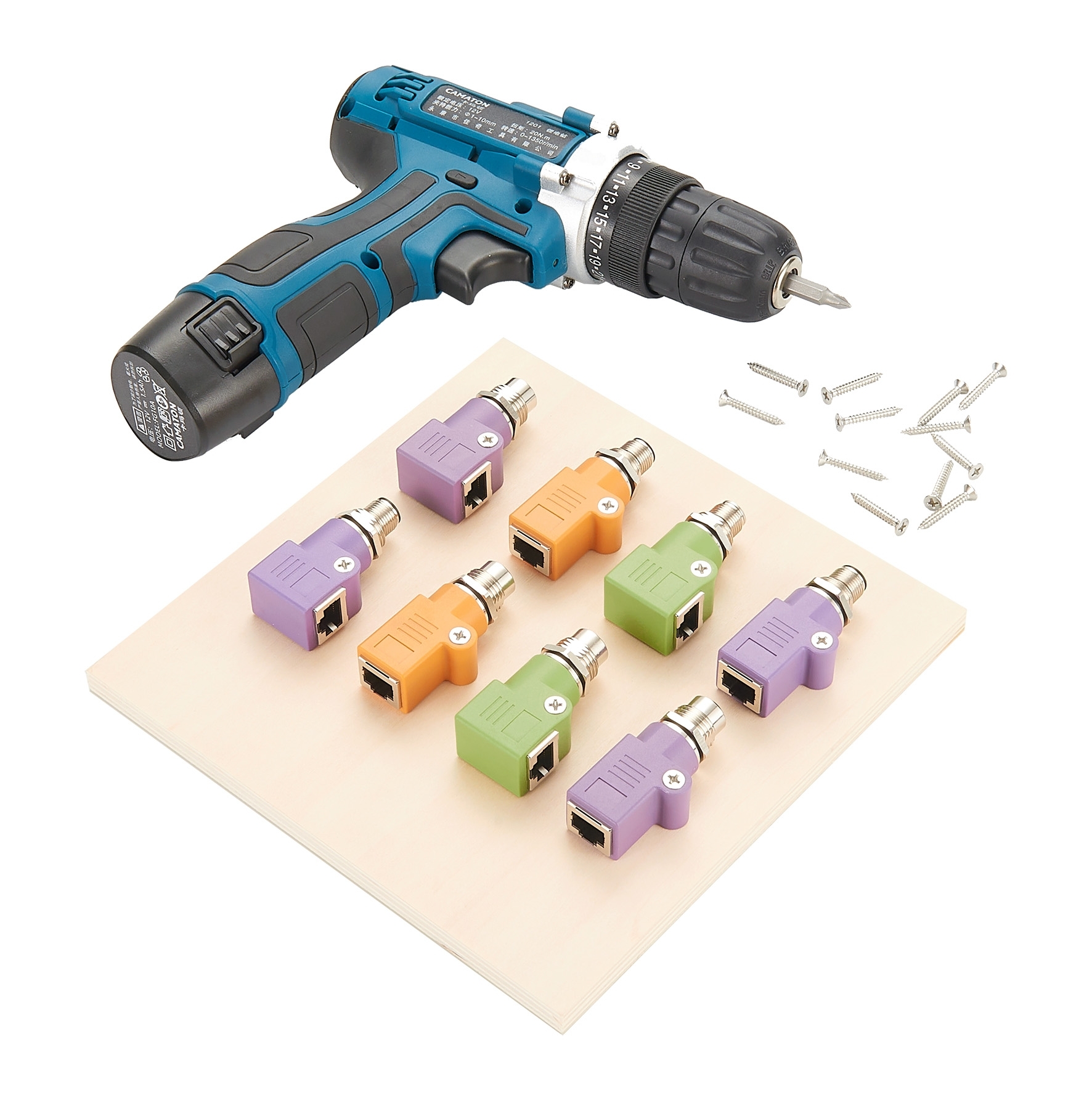

- Housing with hole for screwing the adapter directly onto a panel, board, etc.
- Housing material: PVC
- Gold plated contacts
- Protection class: IP67 (M12 connector)
| Application: | Adapter |
|---|---|
| Housing: | Plastic |
| Inputs: | M12 socket A-code 8-pin |
| Interface: | Cat.5e |
| Mounting Type: | panel |
| Outputs: | RJ45 socket |
| Temperature range: | -40°C to +85°C |
