7-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, C-Ports
Product number:
EX-1147HMVS
GTIN/EAN:
4718359011474
7-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, C-Ports

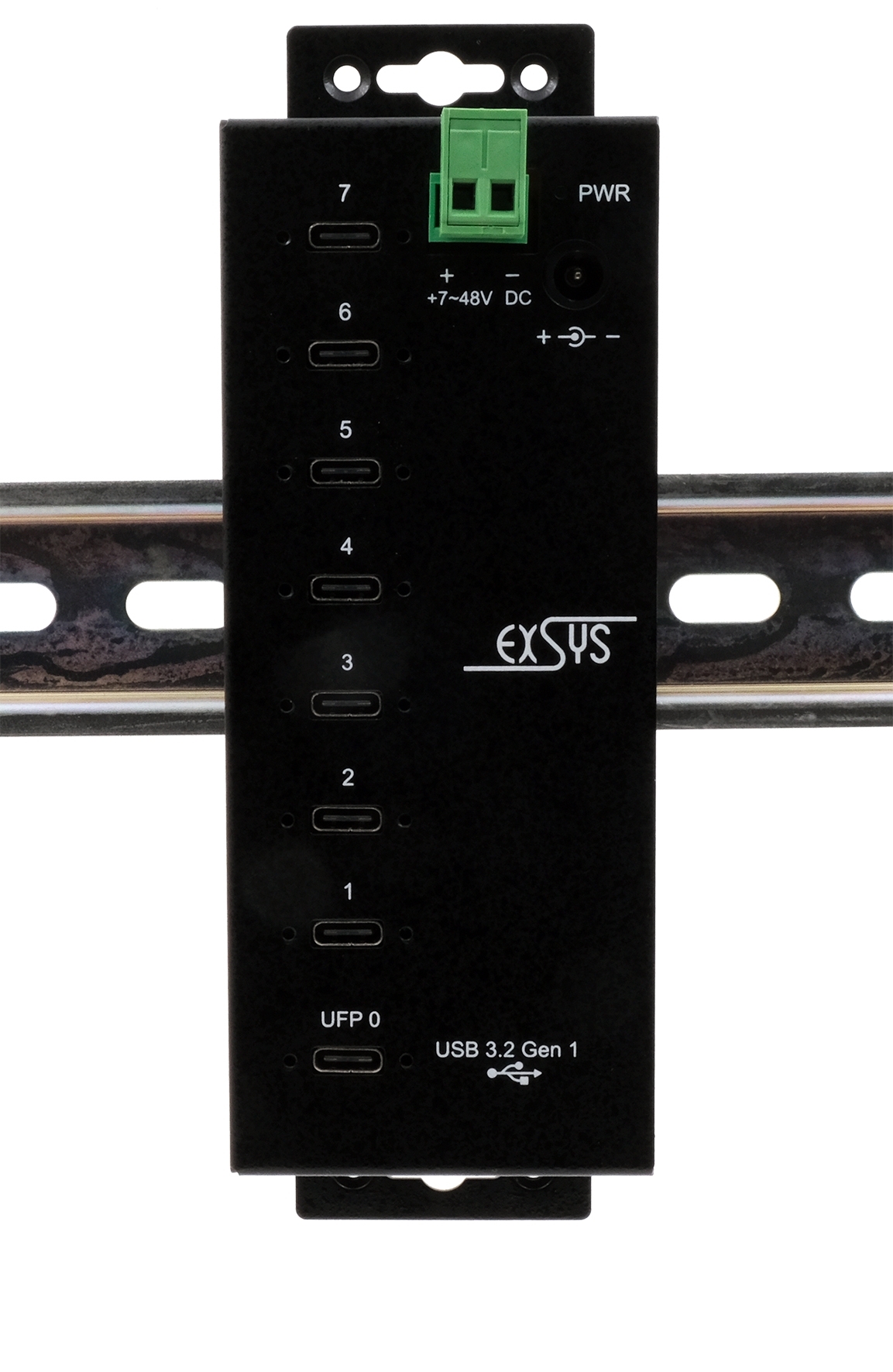

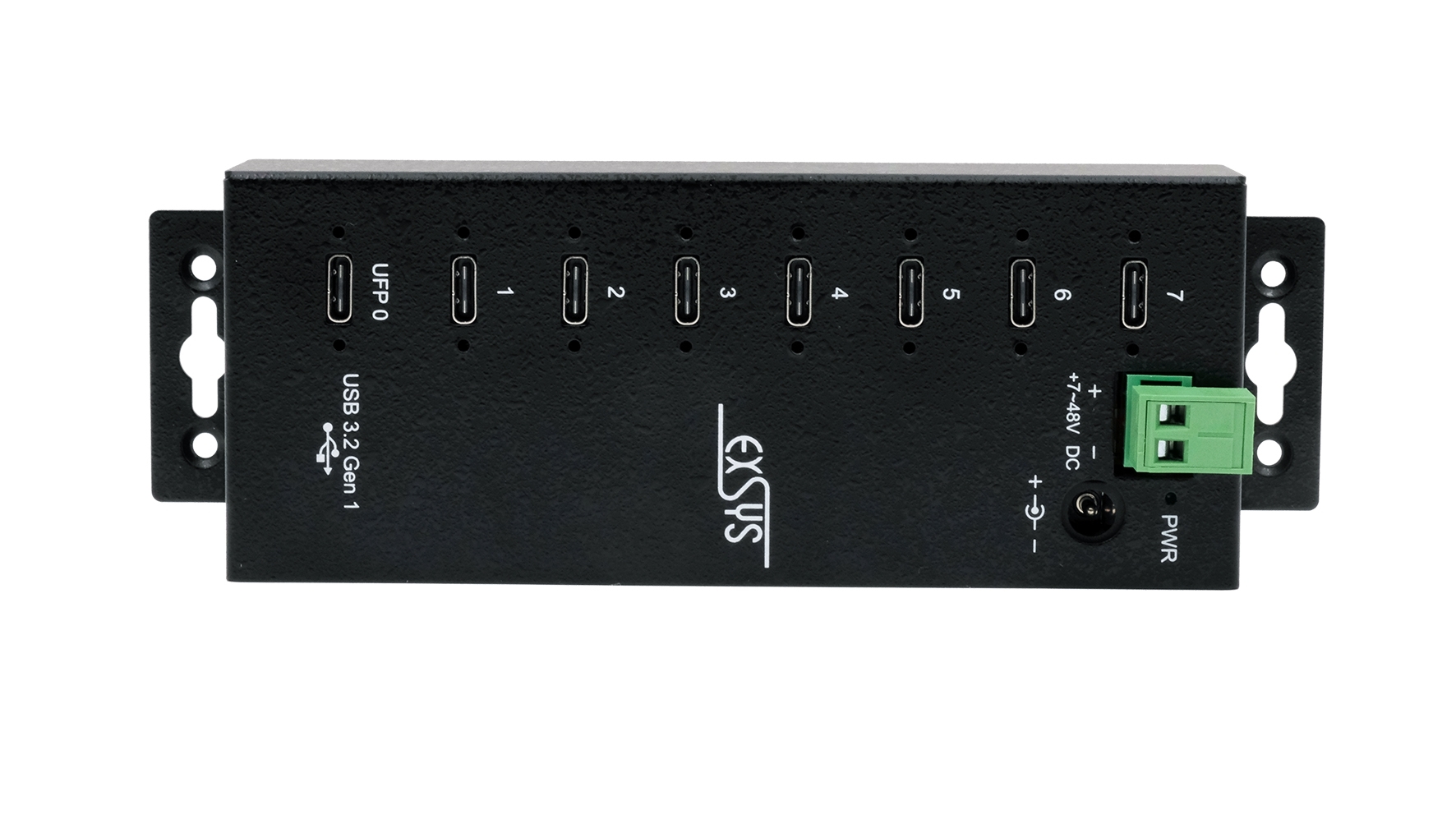

The rugged, industrial-grade EX-1147HMVS metal hub provides seven bolt-on USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to seven external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. The included USB 3.2 Gen 1 cable can be attached to the EX-1147HMVS with thumbscrews without a screwdriver. The EX-1147HMVS can be powered with USB bus power, via a DC Jack or a two-wire terminal block connector (+7V to +48V). The HUB meets the special requirements of industrial applications.
- USB 3.2 Gen 1 Metal HUB with 7 Ports
- 15KV ESD Surge Protection for all 7 Ports
- Protects the devices against voltage fluctuation
- Power +7V up to +48V DC over the DC Jack or Terminal Block
- Power supply optionally also from the USB-Bus +5V (Bus-Power)
- Easy installation with the included DIN-Rail Kit
- Automatic detects the data transfer rate for the attached external devices
- Up to 3A current at one port, 1A when all ports in use simultaneously (max. output 35W)
- Automatic detection of input polarity on the terminal block
- Rugged metal case
- LED Power-Indicator
- Two internal jumpers for individual mode control (data and power):
- Bus power jumper:
- ENA = bus power operation possible
- DIS = operation with power supply only (self power)
- Host control jumper:
- ON = Power supply independent of host PC
- HOST = Power supply only when host PC is switched on
- Bus power jumper:

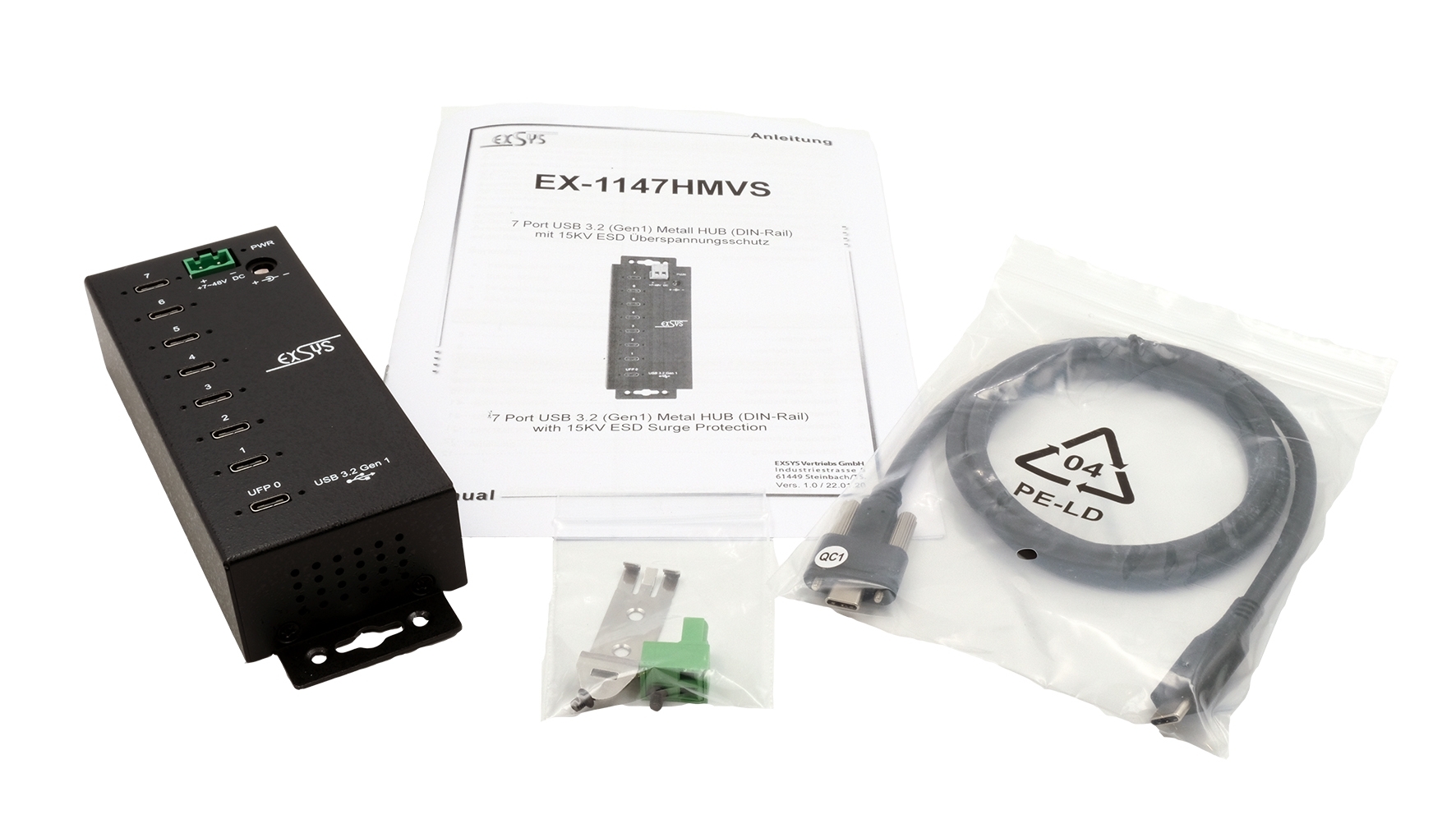

Packaging Contents:
EX-1147HMVS, USB 3.2 Gen 1 Cable, DIN-Rail Kit, Manual
| Application: | Industrial |
|---|---|
| Cable length: | 1.0m |
| Charging power total: | 35W |
| Colour: | black |
| Data transmission: | 5 Gbps |
| Housing: | Metal |
| Inputs: | USB-C socket |
| Interface: | USB 3.2 Gen 1 |
| Mounting Type: | DIN-Rail |
| Number of ports: | 7 |
| Outputs: | 7x USB-C socket |
| Power connection: | DC Jack & TB 7-48V |
| Surge protection: | 15KV ESD |
| Temperature range: | 0°C to +55°C |
