4 Port USB 3.2 Gen 1 Metal HUB with 1x USB-C and 3x USB-A ports, USB-C Upstream
Product number:
EX-1195HMS
GTIN/EAN:
4718359119521
4 Port USB 3.2 Gen 1 Metal HUB with 1x USB-C and 3x USB-A ports, USB-C Upstream

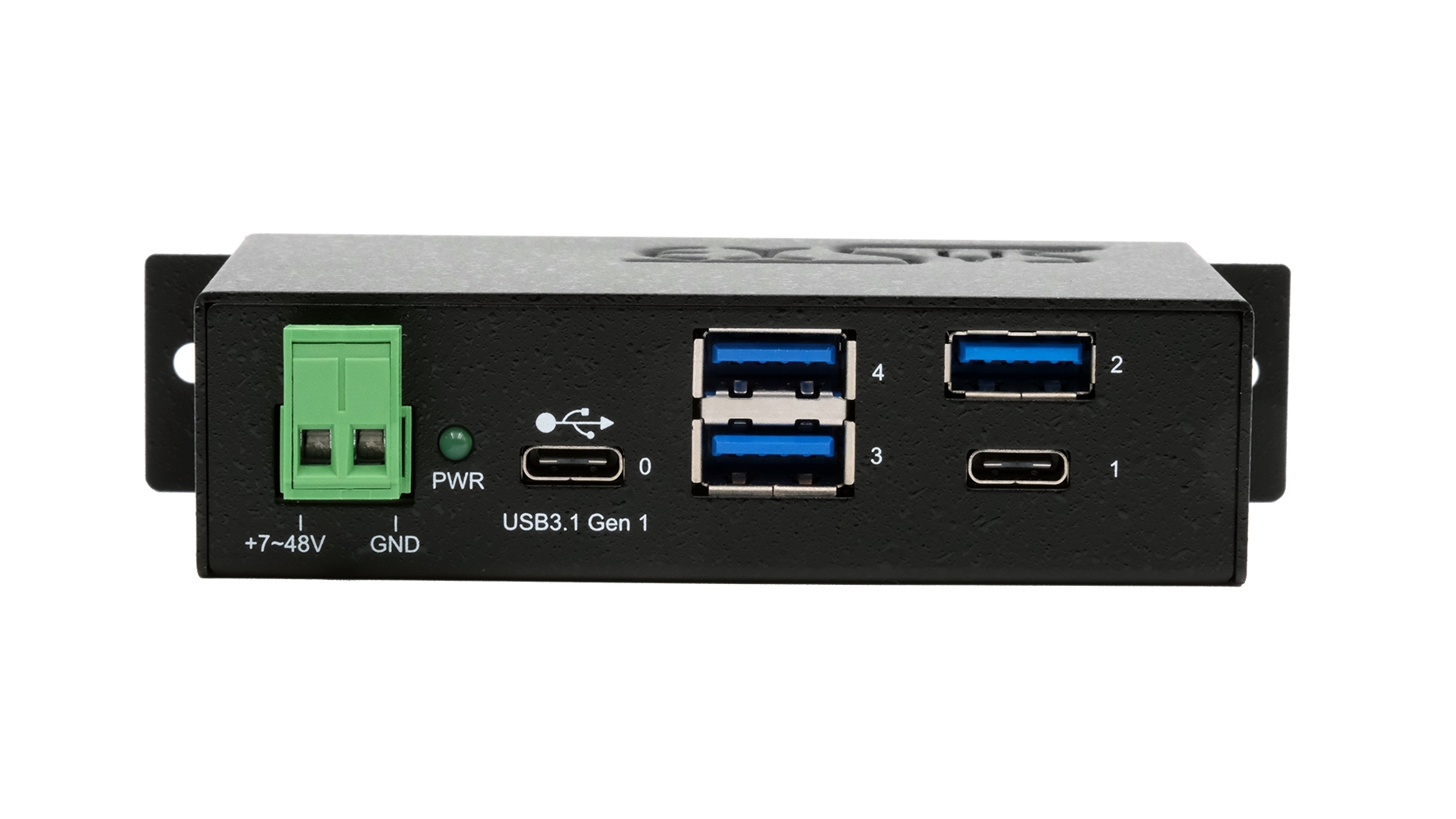

The EX-1195HMS is a USB 3.2 Gen 1 (previously called 3.0) metal HUB that complies with Universal Serial Bus (USB) Revision 3.2 Gen 1 specifications and operates at data speeds up to 5Gbps. It offers one USB-C upstream port and 4 downstream ports with one USB-C and three USB-A ports. The EX-1195HMS supports 15KV ESD surge protection for each port. Port 1 is equipped with one USB-C connector. It is thus possible to connect up to four external USB peripherals to one USB 3.2 Gen 1 port from the computer in the 19" rack. The HUB meets the special requirements of industrial applications.
- USB 3.2 Gen 1 metal HUB with one C– and three A-Downstream ports
- 15KV ESD Surge Protection on all ports
- Power +7V up to +48V DC over the terminal block
- Automatic detection of input polarity on the terminal block
- Power supply optionally also from the USB-BUS +5V (Bus-Power)
- 900mA current on all 4 ports
- Fast USB battery charging with CDP and DCP mode

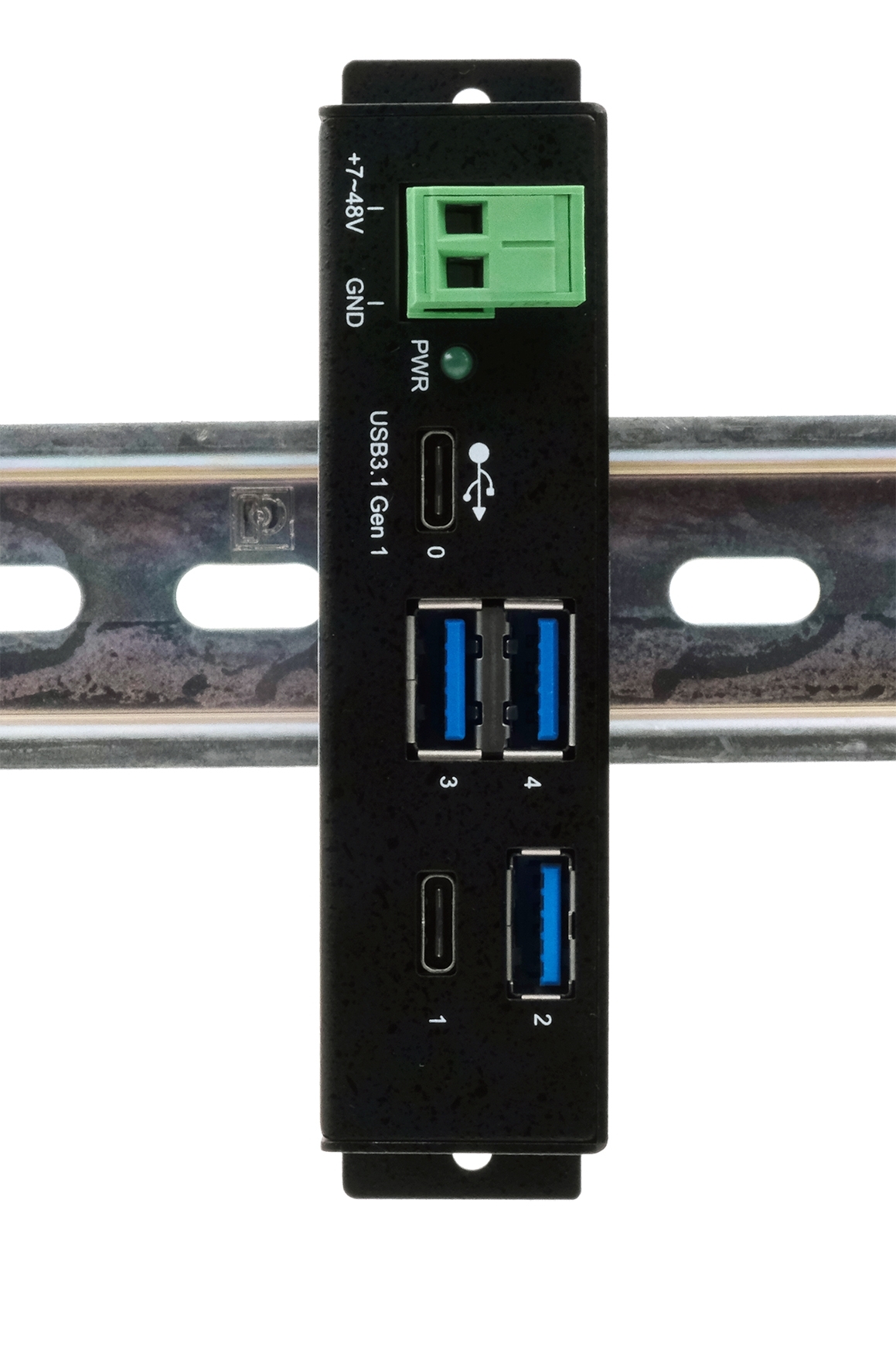

- Easy installation with the included DIN-Rail Kit
- Support all USB 1.1 up to 3.2 Gen 1 compatible devices
- Compact industrial design with a robust metal housing
- LED Power Display
- Internal jumper for individual control of power supply:
- ENA = bus power operation possible
- DIS = operation with power supply only (self power)

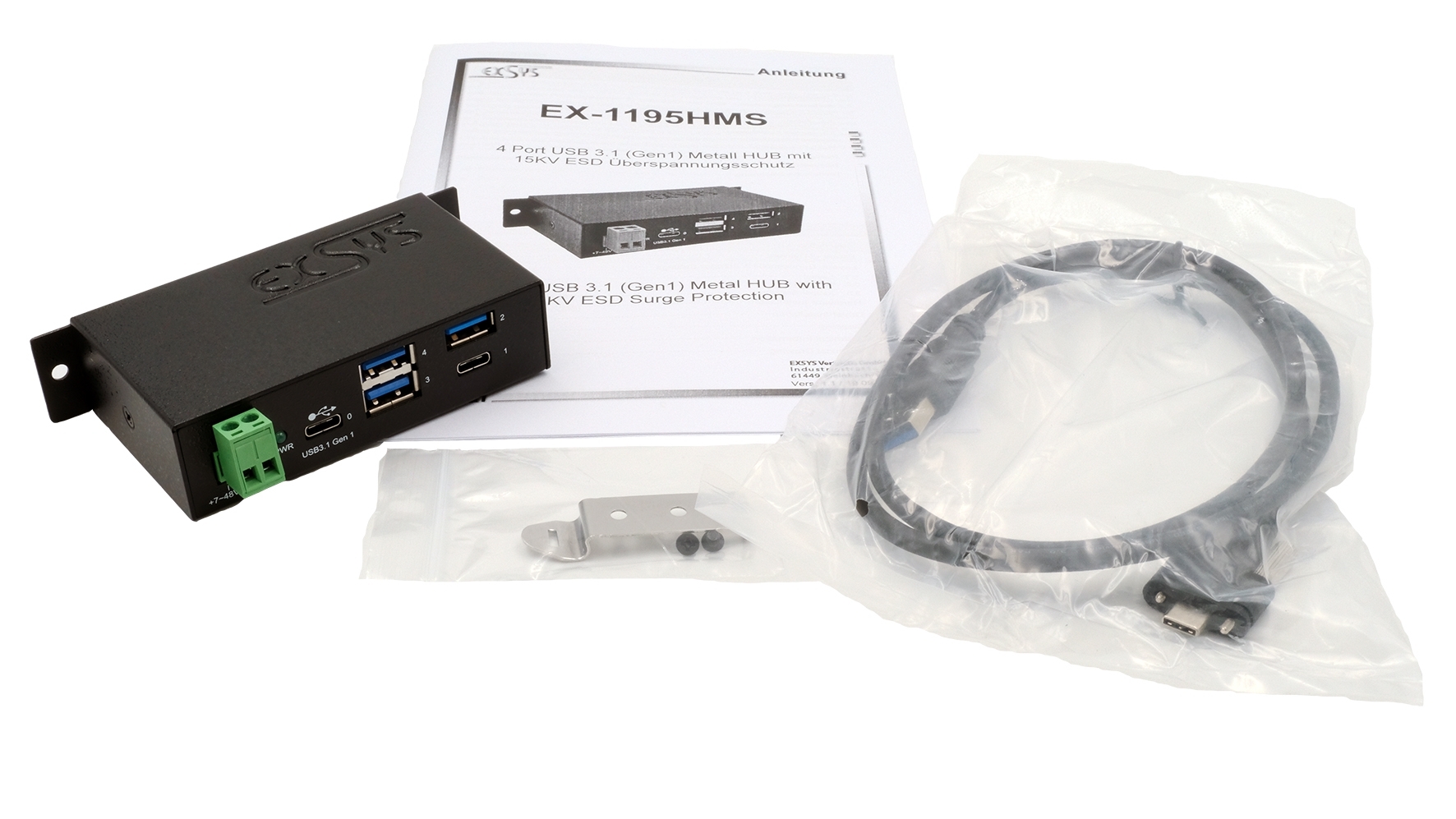

Packaging contents:
EX-1195HMS, USB A-to-C 3.2 Gen 1 cable, DIN-Rail Kit, Manual
| Application: | Industrial |
|---|---|
| Cable length: | 1.0m |
| Charging power total: | 18W |
| Colour: | black |
| Data transmission: | 5Gbps |
| Housing: | Metal |
| Inputs: | USB-C socket |
| Interface: | USB 3.2 Gen 1 |
| Mounting Type: | DIN-Rail |
| Number of ports: | 4 |
| Outputs: | 2x USB-A Port / 2x USB-C Port |
| Power connection: | TB 12-48V |
| Surge protection: | 15KV ESD |
| Temperature range: | 0°C to +55°C |
