4-Port (C-Connector) USB 3.2 Gen 2x1 Metal HUB, 15KV ESD Surge Protection, 3A per Port, DIN-Rail and Wallmount Kit
The robust, industrial EX-12294HMS is a USB 3.2 Gen 2x1 metal HUB for up to four end devices that can be mounted on the wall or on a DIN rail. It is a pure USB-C HUB for four end devices and ensures secure data transfer and excellent performance of up to 10Gbps (SuperSpeed USB 10Gbps). In addition, the EX-12294HMS is equipped with a 15KV ESD overvoltage protection. Up to 3A can be provided at each port via the external power supply. This allows easy charging of iPhone, iPad, smartphone and tablet.
Power is supplied via the plug-in power supply unit supplied or an optionally available DIN-Rail power supply unit (self-power).
- USB 3.2 Gen 2x1 metal HUB with four USB-C downstream ports
- 15KV ESD surge protection for each output
- Power +9V up to +24V DC via Terminal Block or DC-Connector
- Up to 3A per port, total output power max. 60W
- Automatic recognition the data transfer rate for the attached external devices

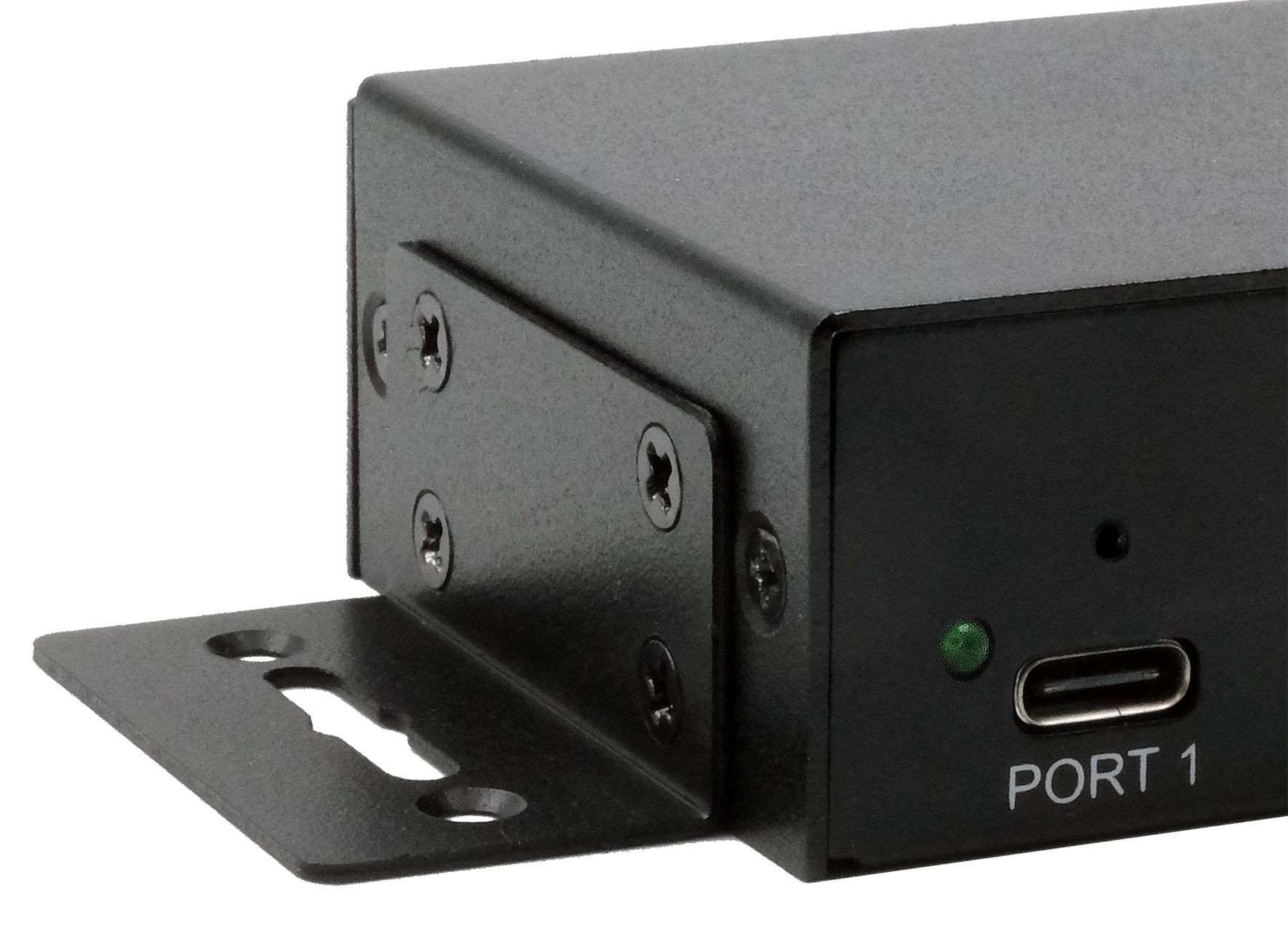

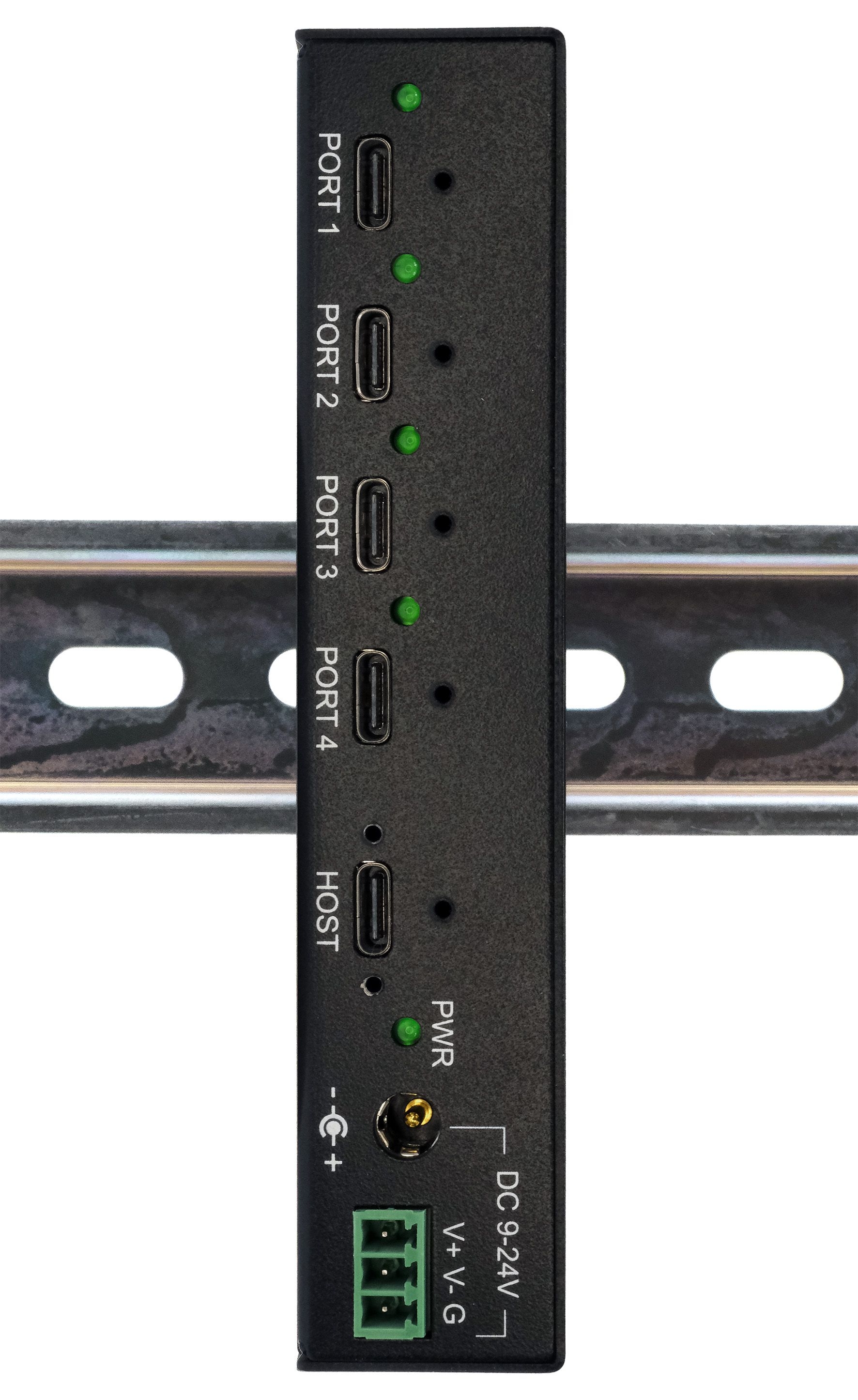

- Includes wall mount kit and DIN-Rail Kit
- Compact industrial design
- Rugged metal case

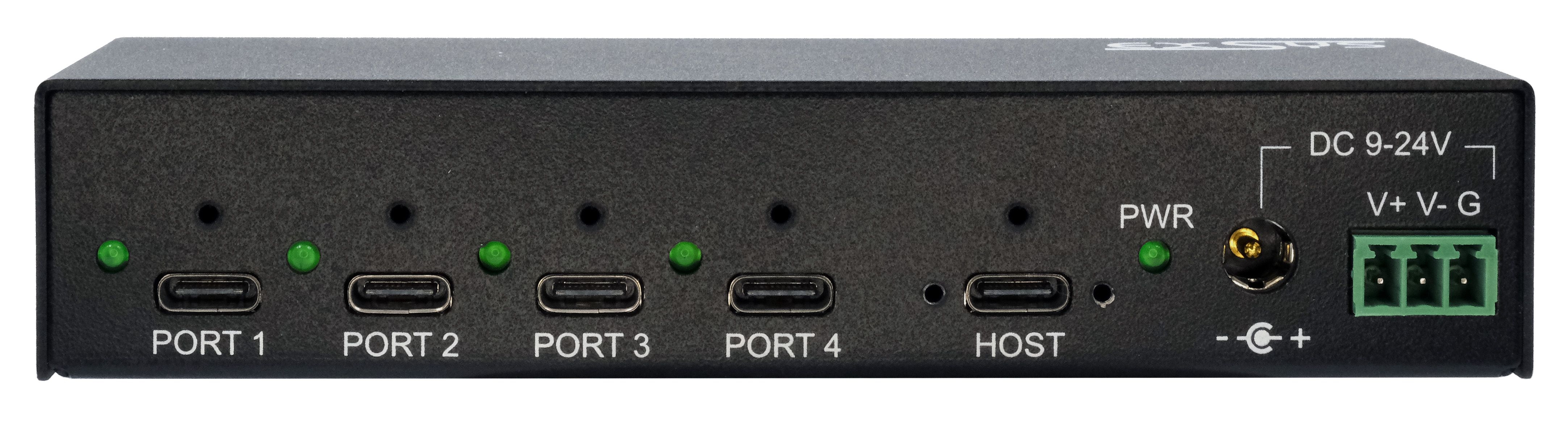

- LED indicators for power supply and connection status
- Chipset: VIA VL822

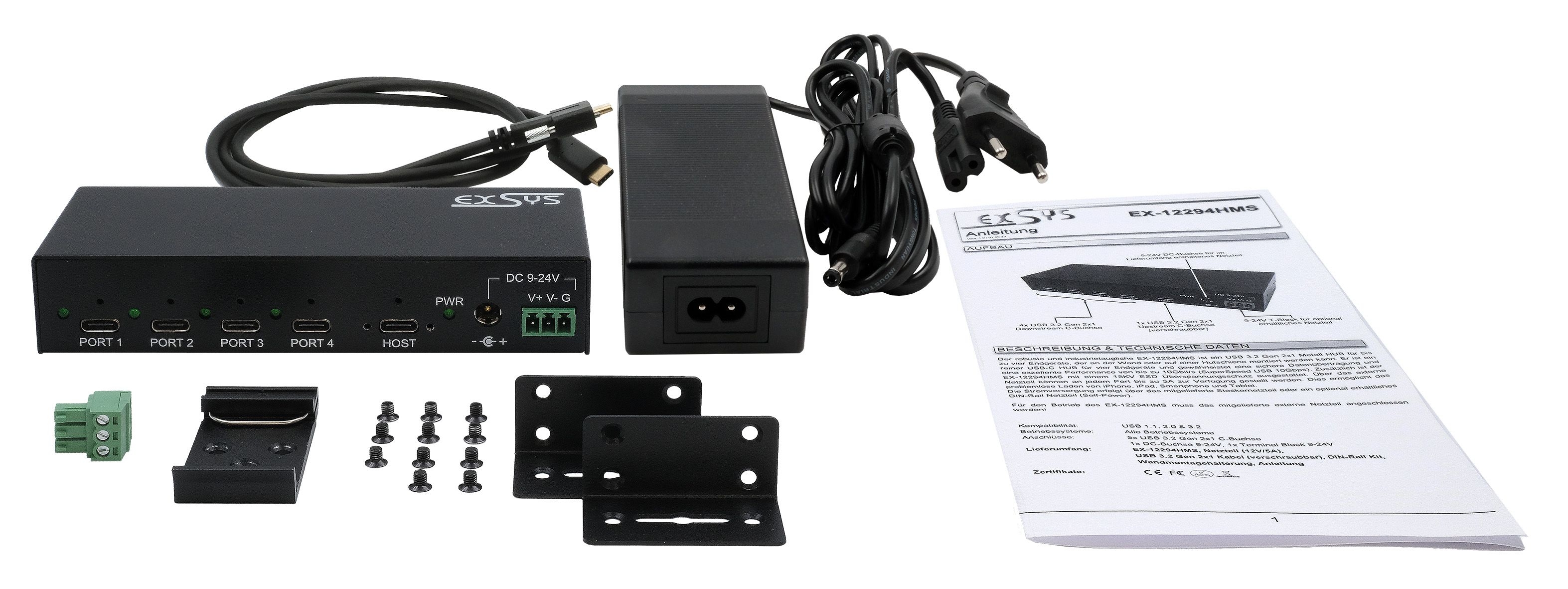

Packaging contents:
EX-12294HMS, Power Supply (24V/3A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, Wall Mounting Brackets, Manual
| Application: | Industrial |
|---|---|
| Cable length: | 1.0m |
| Charging power total: | 60W |
| Colour: | black |
| Data transmission: | 10Gbps |
| Housing: | Metal |
| Inputs: | USB-C socket |
| Interface: | USB 3.2 Gen 2x1 |
| Mounting Type: | DIN-Rail |
| Number of ports: | 4 |
| Outputs: | 4x USB-C socket |
| Power connection: | DC Jack & TB 9-24V |
| Surge protection: | 15KV ESD |
| Temperature range: | 0°C to +55°C |
