2-Port PoE++ Media Converter 90W, SFP, -40°C to +80°C
Product number:
EX-60344
GTIN/EAN:
4718359603440
2-Port PoE++ Media Converter 90W, SFP, -40°C to +80°C

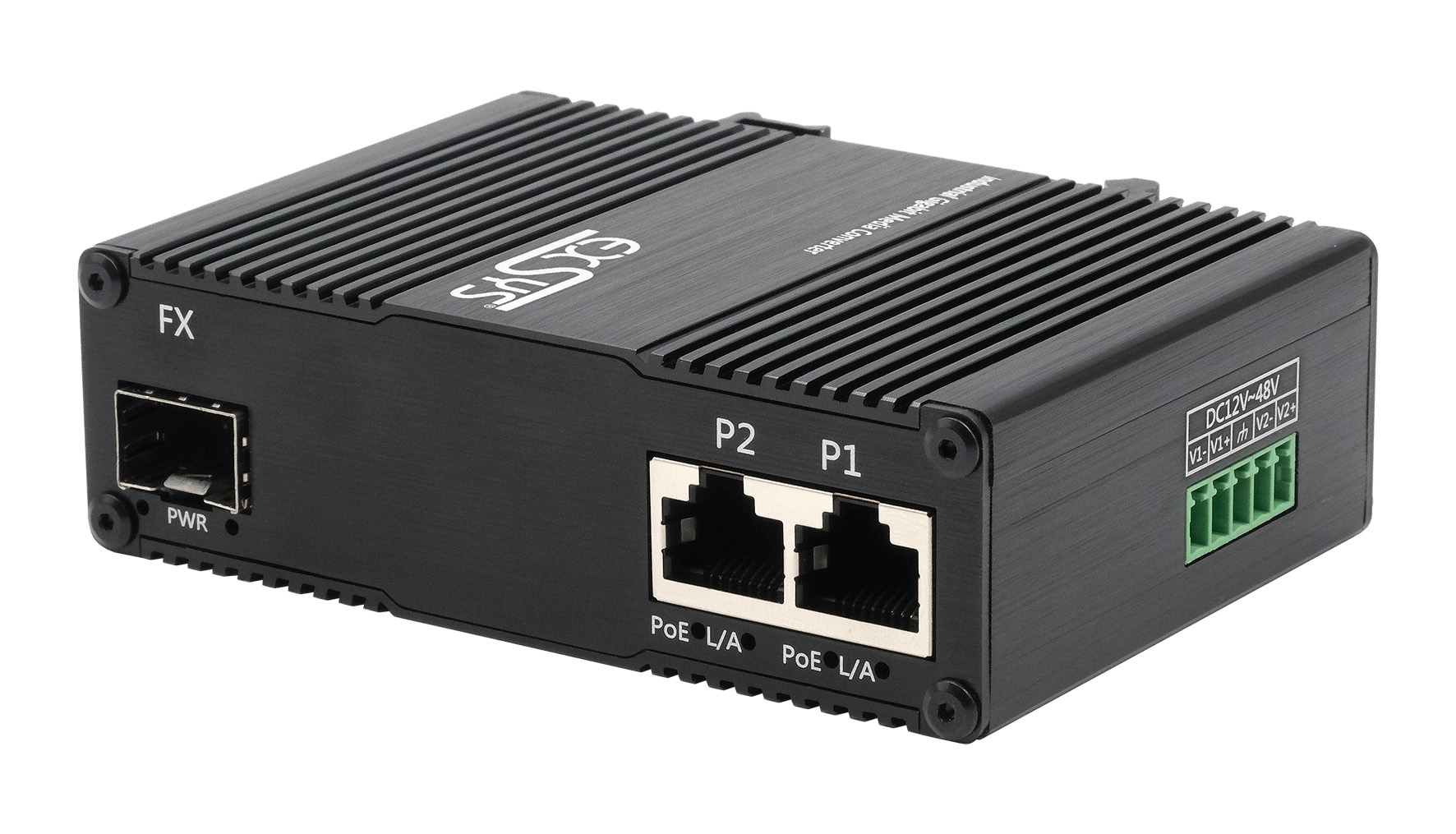

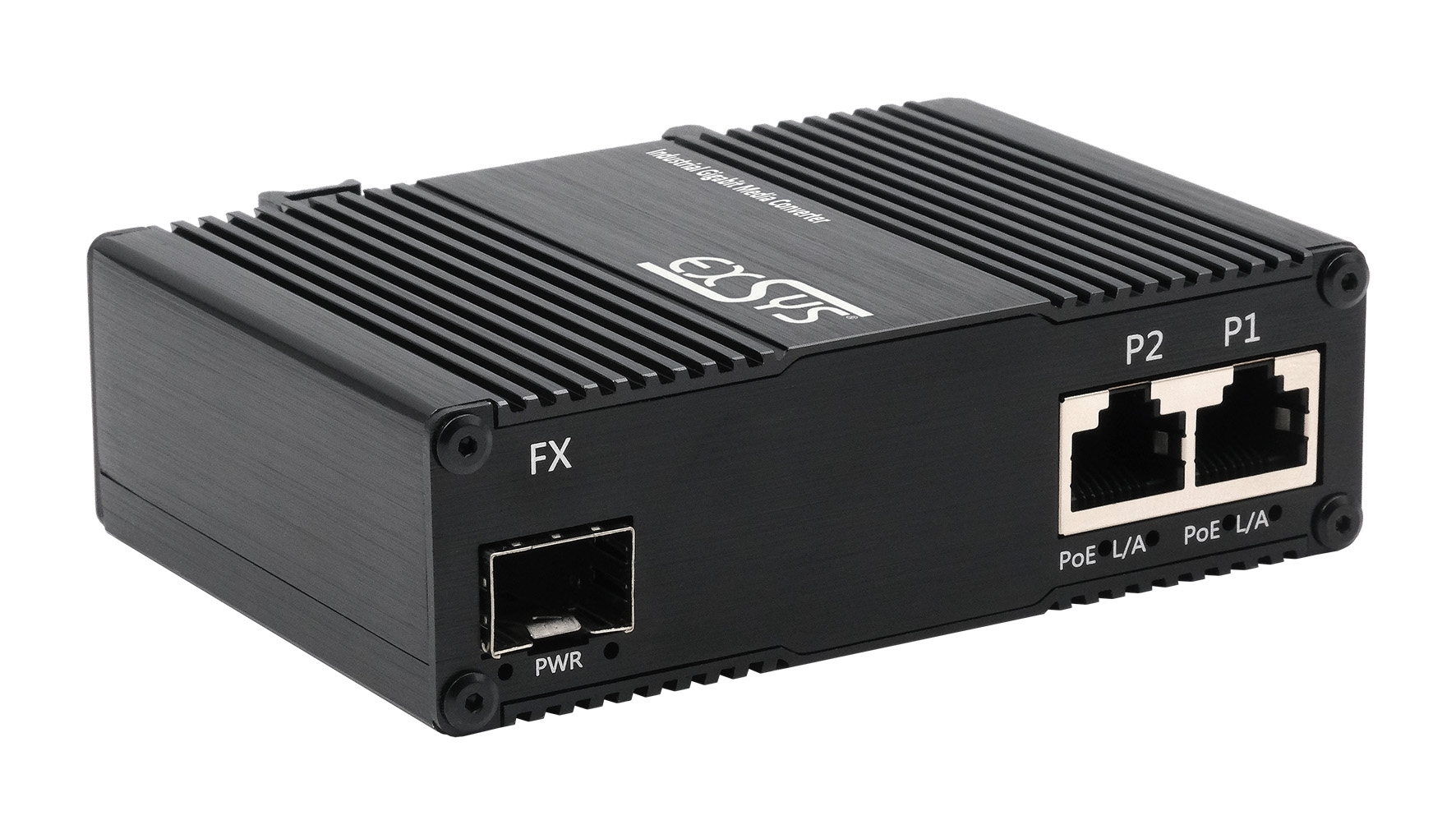

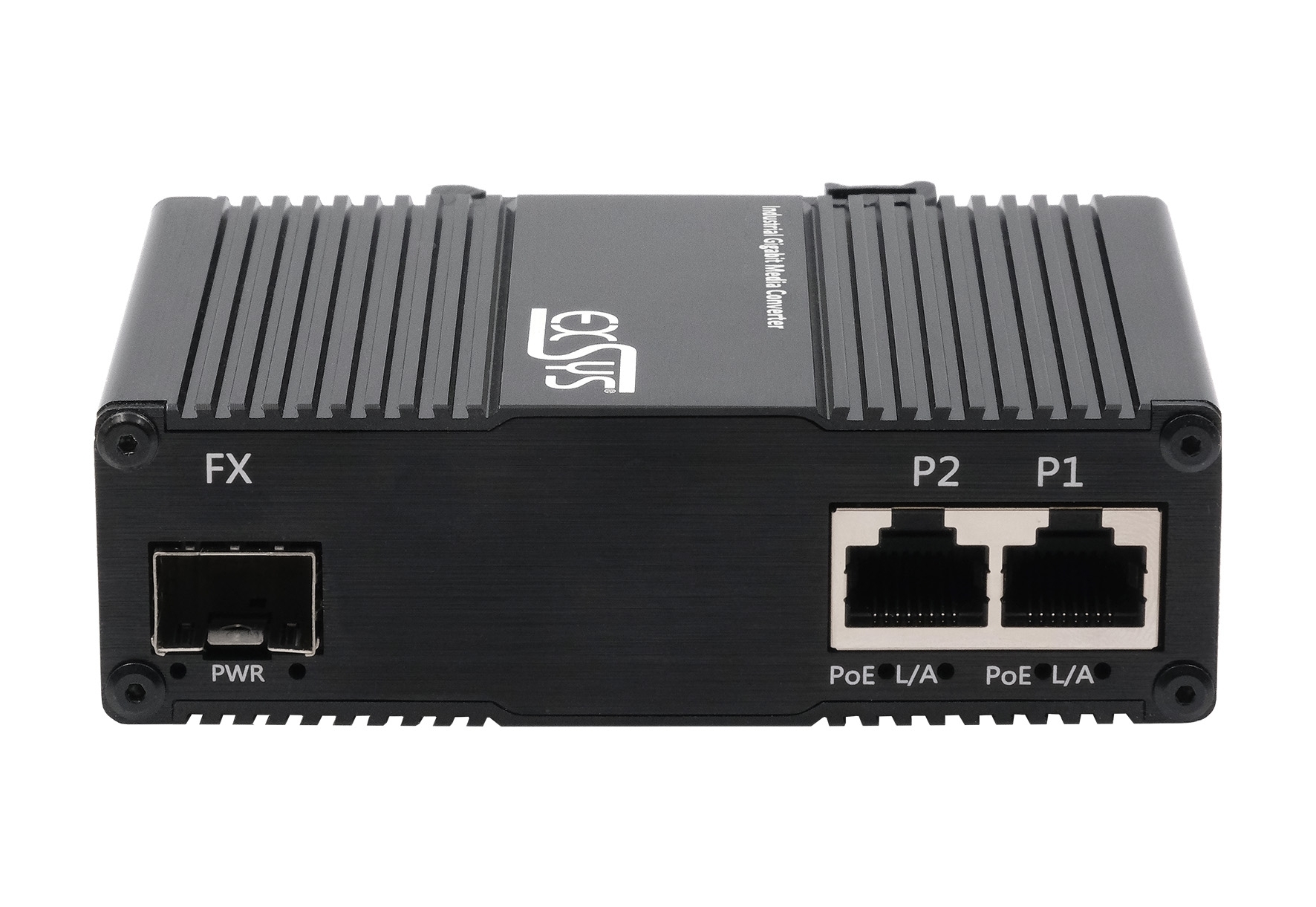

The compact, industrial-grade EX-60344 media converter provides reliable conversion between copper and fibre-optic environments. It features two 10/100/1000Base-T ports with 90W PoE++ and a dual-mode 100/1000Base-X SFP port (auto-detection). Depending on requirements, various types of optionally available SFP modules can be used. Thanks to its robust metal housing and extended operating temperature range of -40°C to 75°C, it is suitable for a wide range of applications, even in harsh environments. Power is supplied via the terminal block (12 to 48 VDC). The EX-60344 supports Auto-MDI/MDI-X and auto-negotiation. The scope of delivery includes a DIN-rail kit (pre-assembled) and a wall-mount bracket.
- 2x 10/100/1000T RJ45-Port, 1x 100/1000X SFP slot, auto detection
- Fully IEEE 802.3af/at/bt Power Over Ethernet (PoE) compliant, Mode/Alternative A and B
- Maximum power delivered:
- 802.3af, Typ 1: 15.40 W (PSE), 12.95 W (PD)
- 802.3at, Typ 2: 30.00 W (PSE), 25.50 W (PD)
- 802.3bt, Typ 3: 60.00 W (PSE), 51.00 W (PD)
- 802.3bt, Typ 4: 90.00 W (PSE), 71.00 W (PD)
- Maximum total power output across both ports: 90W
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports auto-negotiation and half/full duplex
- Power supply via terminal block 12 V to 48 VDC
- Power Booster generates PoE voltage range 46 - 57 VDC
- Rugged, compact metal housing, IP40

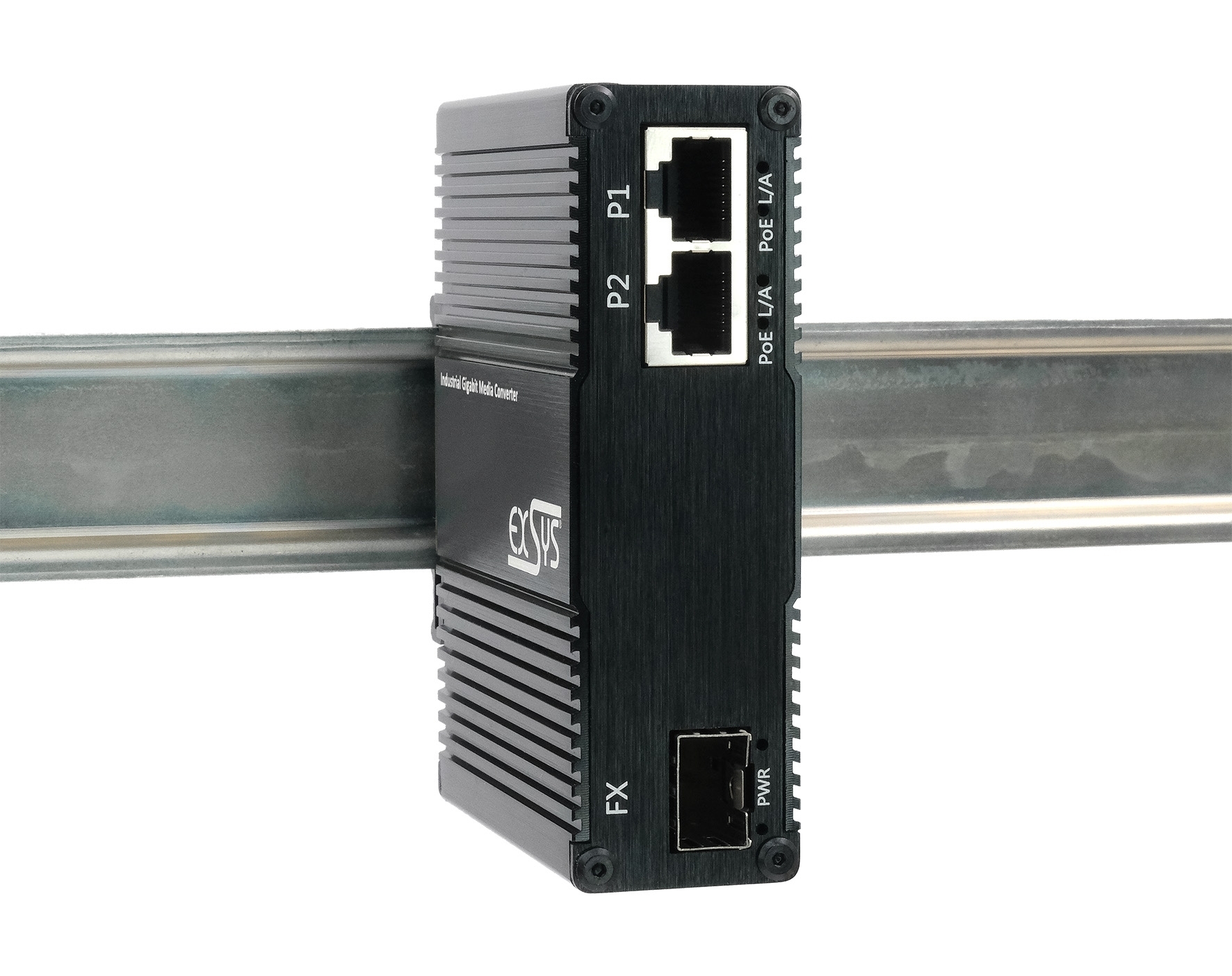

- Includes DIN-Rail Kit and wall mounting bracket
- Extended operating temperature range from -40°C to +80°C
Packaging contents:
EX-60340, DIN-Rail Kit (pre-assembled), Wallmount Kit, Manual
| Connections: | RJ45 / SFP |
|---|---|
| Data transmission: | 1000Base-T |
| Interface: | Ethernet |
| Mounting Type: | DIN-Rail |
| Number of ports: | 2+1 |
| PoE Budget: | 90W |
| Power connection: | TB 12-48V |
| Power over Ethernet: | Yes |
| Temperature range: | -40°C to +80°C |
Skip product gallery
€27.37*
€27.37*
€45.82*
€4.32*
accessories
EX-SFP-0055
SFP Transceiver, LC, Duplex, Multimode, 550m, -40°C to +85°C
The EX-SFP-0055 SFP transceiver is a high-performance, cost effective module with a data rate of 1.25 Gbps and a transmission distance of up to 550 m with multimode fiber. The transceiver consists of three parts: a VCSEL laser transmitter, a PIN photodiode integrated with a transimpedance preamplifier (TIA), and an MCU control unit. All modules meet laser safety class I requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Data rate of 1.25Gbps
850nm VCSEL laser and PIN photodetector
Compliant with SFP MSA and SFF-8472 with duplex LC socket
Digital diagnostic monitoring, internal or external calibration
550m transmission with 50/125μm multimode fiber
330m transmission with 62.5/125μm multimode fiber
Extended operating temperature range from -40°C to +85°C
Other SFP modules available on request
EX-SFP-2000
SFP Transceiver, LC, Duplex, Singlemode, 20km, -40°C to 85°C
The EX-SFP-2000 SFP transceiver is a high-performance, cost-effective module with a data rate of 1.25 Gbps and a transmission distance of up to 20 km over single-mode fiber. The transceiver consists of three parts: a Fabry-Pérot (FP) laser transmitter, a PIN photodiode integrated with a transimpedance preamplifier (TIA), and an MCU control unit. All modules meet Laser Safety Class I requirements. The transceivers are SFP Multi-Source Agreement (MSA) and SFF-8472 compliant.
Data rate of 1.25Gbps (Ethernet) and 1.063 Gbps (Fiber)
1310nm FP laser and PIN photodetector
Compliant with SFP MSA and SFF-8472 with duplex LC socket
Compatible with SONET OC-24-LR-1
Digital diagnostic monitoring, internal or external calibration
20km transmission via singlemode fiber
Extended operating temperature range from -40°C to +85°C
Additional SFP modules available on request
EX-6974
HDR-100-24 Power supply for various USB 3.2 Gen 1, 10 Port DIN-Rail USB HUB
HDR-100-24 – 100W DIN Rail Power Supply for EX-1110HMVS, 1110HMVS-WT, 1112HMS
Output DC 24V/3.83A/92W
Input: 85 ~ 264VAC
Universal input 85~264VAC
Plastic case, step shape
Isolation class II
Pass LPS (limited power source)
DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection (working temperature: -30°~+70°C)
No load power consumption <0.3W
Assemble on industrial rail TS-35 / 7.5 or 15
Suitable for building automation and control of household appliance
Over voltage category II
LED indicator for power on
EX-K1110
DC Jack cable for connect to the Terminal Block
DC Jack cable for connecting plug power supplies to products with terminal block connection
